Applications of a CNC Lathe

A Computer Numerical Control (CNC) Lathe machine plays a vital role in modern manufacturing. With its high-speed and accuracy in executing pre-programmed sequences of controlled commands, it is considered the most advanced type of lathe. A lathe rotates the cylindrical workpiece while a stationary cutting tool removes the unwanted material and gives it a desired shape and size. Lathe machines have been around since way back 1300 in Egypt. Traditionally, it is used in metalworking, metal spinning, wood turning, glass working, etc. It was only in the 1950s when the CNC lathe was created. With the birth of CNC lathes, it quickly dominated the other production lathes because of its automation, accuracy, and a wide variety of production processes.

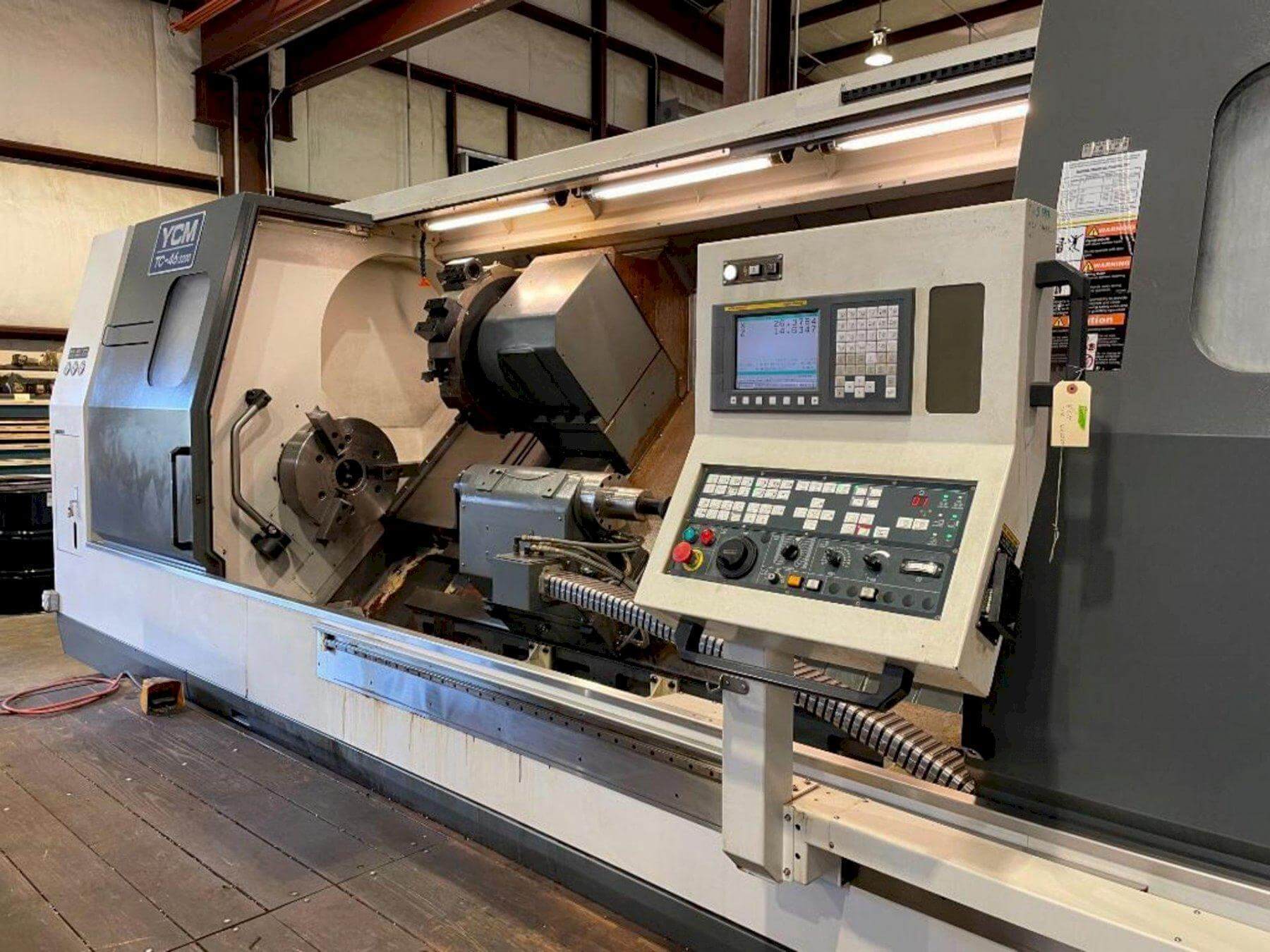

The main parts of a CNC Lathe Machine consist of a machine bed, main spindle, sub-spindle/second spindle, chuck, guide way, headstock, tailstock, and tool turret. Since these machines are so versatile, many industries use them such as manufacturing, electronics, automotive, aerospace, medical, mining, power plant, firearm, sporting, shipbuilding, and others to produce precise finished product such as baseball bats, camshafts, bowls, crankshafts, cue sticks, sign boards, musical instruments, table, chair legs and more.

The types of CNC lathe are classified by the number of axis they have because these axis affect how the machined part can be positioned, rotated, and approached during the machining process.

• 2-Axis CNC Lathe – 2-Axis CNC Lathe has two linear axis – the X and Z axis – that can be used to perform outer diameter/inner diameter and facing operations. The X axis allows “left” and “right” movement while the Z axis allows “up” and “down” movement. In other words, it can only regulate the diameter of an item but does not allow for milling or anything more complex.
• 3-Axis CNC Lathe – In a 3-Axis CNC Lathe, a C axis and a life tool system are added, which give the machine the ability to move three different axis simultaneously. With these, the machine can perform standard milling operations, boring, tapping operations, and helical milling operations involving the slow sync rotation of the workpiece.
• 4-Axis CNC Lathe – A Y axis is added to 4-axis CNC Lathe, allowing off-center machining operations or machining of curves. This fourth axis operates well on more irregular and complex lathework.
• 5-Axis CNC Lathe – A 5-axis CNC Lathe is like a 3-axis CNC lathe with an added second turret, which means that there are two axis at each upper and lower turret and a C axis on the rotating spindle. It helps with the speed of the production because it enables the use of two tools at the same time on the part.
• 6 or More Axis CNC Lathe – There are CNC Lathes with more than 5 axis, which may include: two C axis with a primary and secondary spindle; an upper and a lower turret, each with two linear axis; a Y axis at the upper turret, and a second spindle which can move towards the main spindle to pick up the part. Machines with more than eight axis also exist but these are more complex and sophisticated that are deemed unnecessary for common manufacturing needs.

CNC Lathes can be used for a variety of purposes depending on the needs of different industries, where the material is clamped and rotated while the cutting tool is stationary mounted for outer diameter (OD) and inner diameter (ID) operations. Some of these operations are forming, contour turning, machining of cams, ultra-precision machining, and hard turning. Unlike the simple CNC Lathe which only operates on 2 axis (X and Z axis), the modern machines have tools that work on multiple axis which can make it perform additional milling, drilling, and tapping operations. It uses the CNC machining language, known as G-code, which states the precise measurement for production such as feed rate, speed, location, and coordination. Aside from that, the CNC Lathe can also process one CNC program while establishing and programming the next program. These allow the machine to execute more complex manufacturing processes without having to transfer the workpiece to another machine for a second operation and thus improve productivity.

Many industries prefer using a CNC Lathe because of its technological advancements – it can be easily operated, its production is accurate, it is automated so it speeds up the process, and it can perform complex operations without the need of another machine. However, it is very important for the operator to be knowledgeable when it comes to programming parameters, safety standards, and other vital information. Someone still has to oversee the overall process, so the human operator should be a qualified professional.
