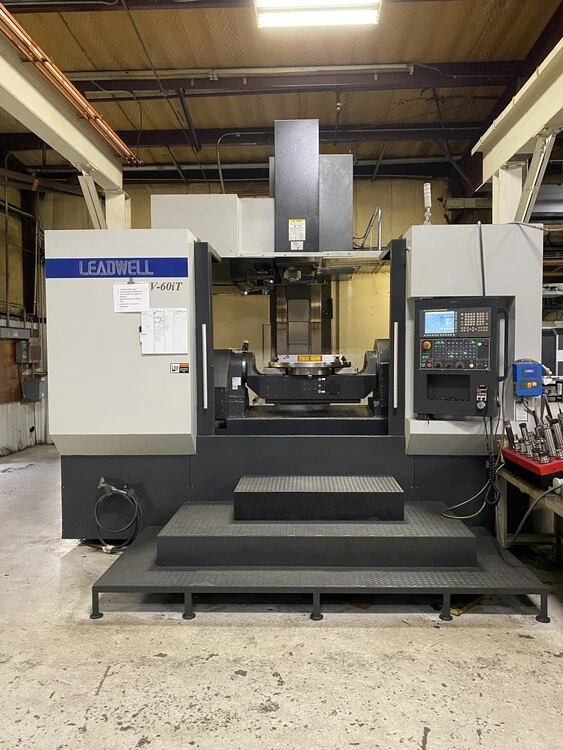

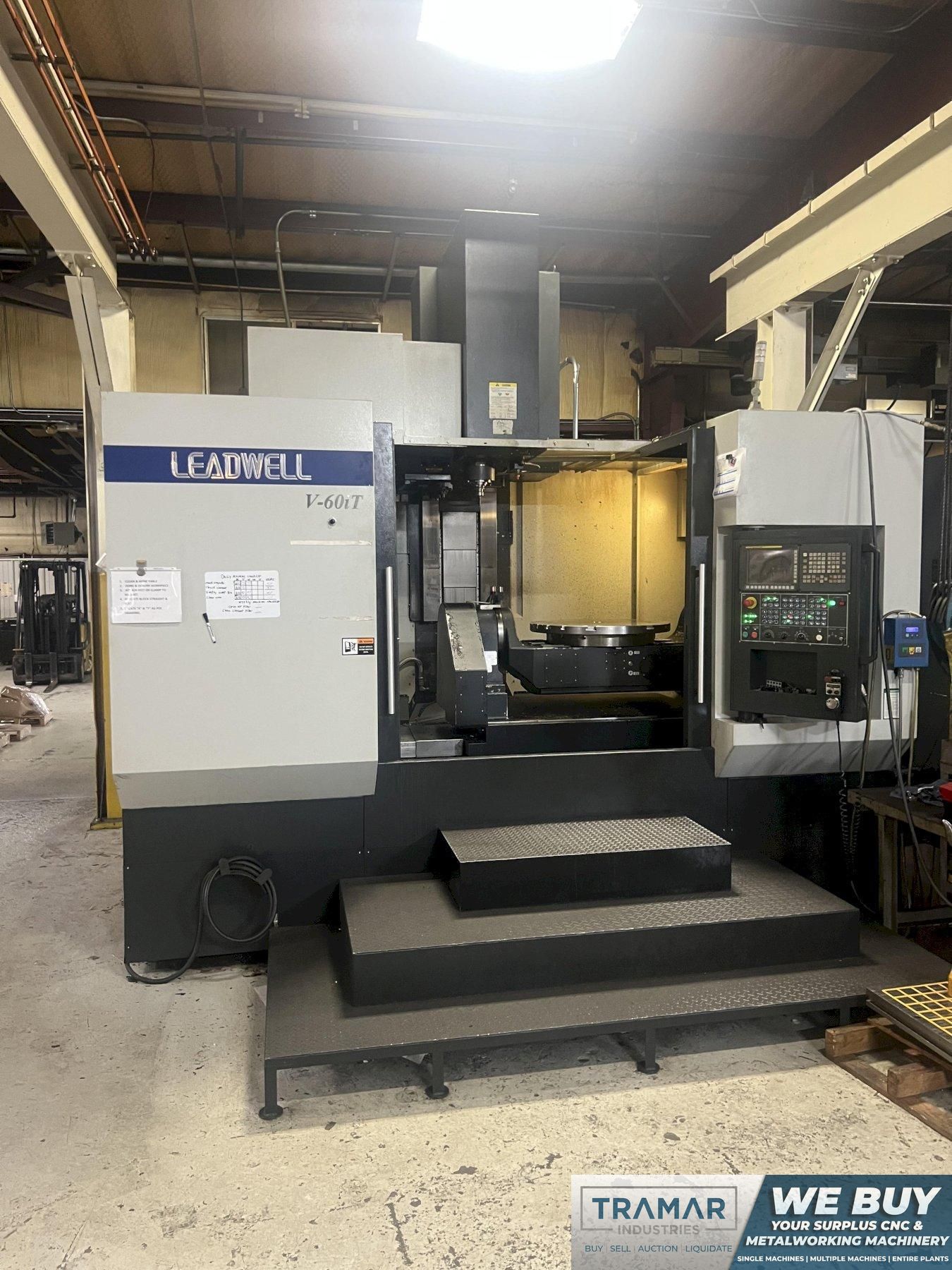

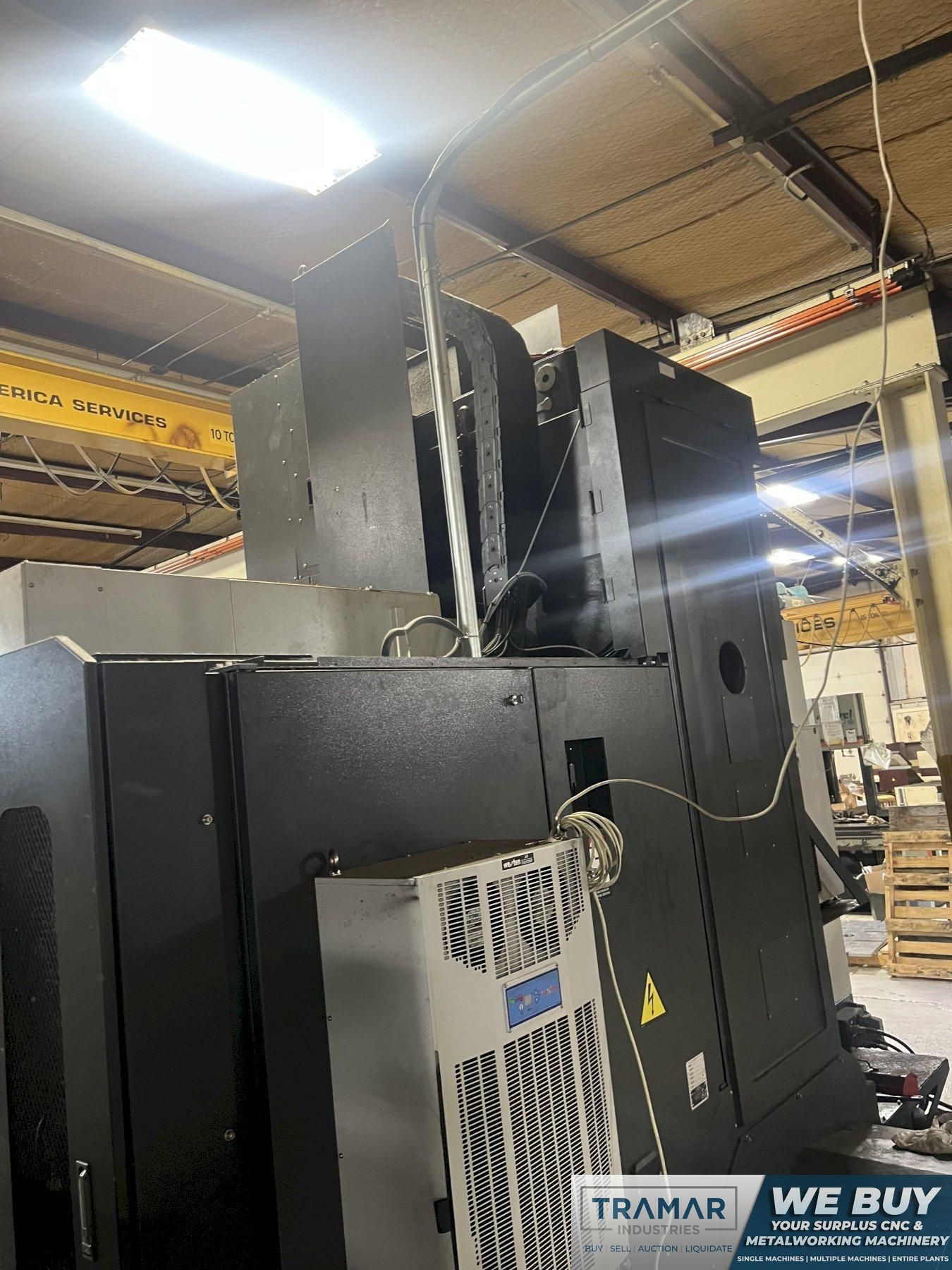

2016 Leadwell V-60iT 5-Axis CNC Machining Center For Sale
Make: LEADWELL
Model: V-60iT
Specifications |
|||
|---|---|---|---|
| Year | 2016 | ||
| CNC Control | yes | ||

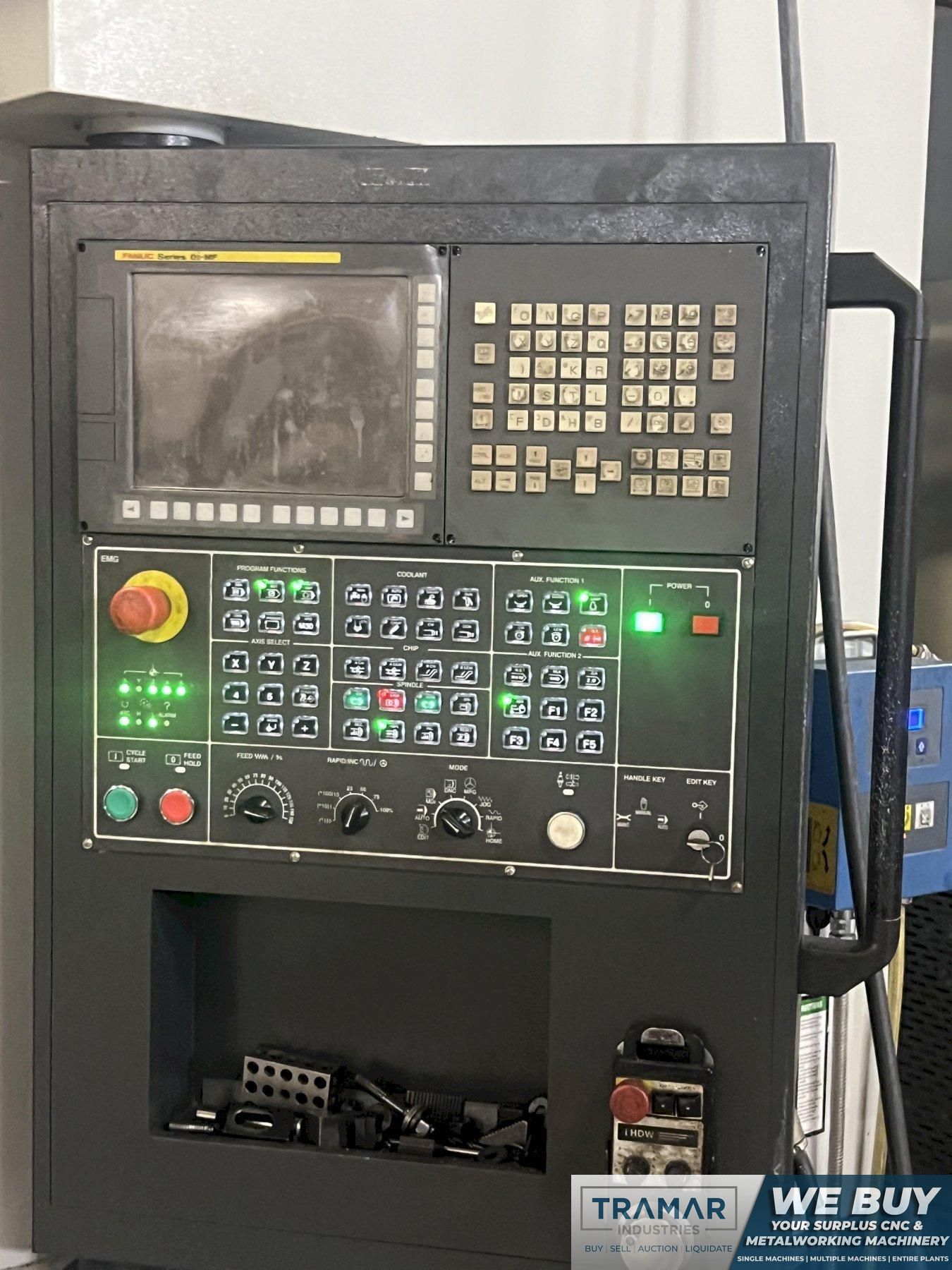

| Type of CNC Control | Fanuc 0iMF | ||
| # Axis | 5 | ||

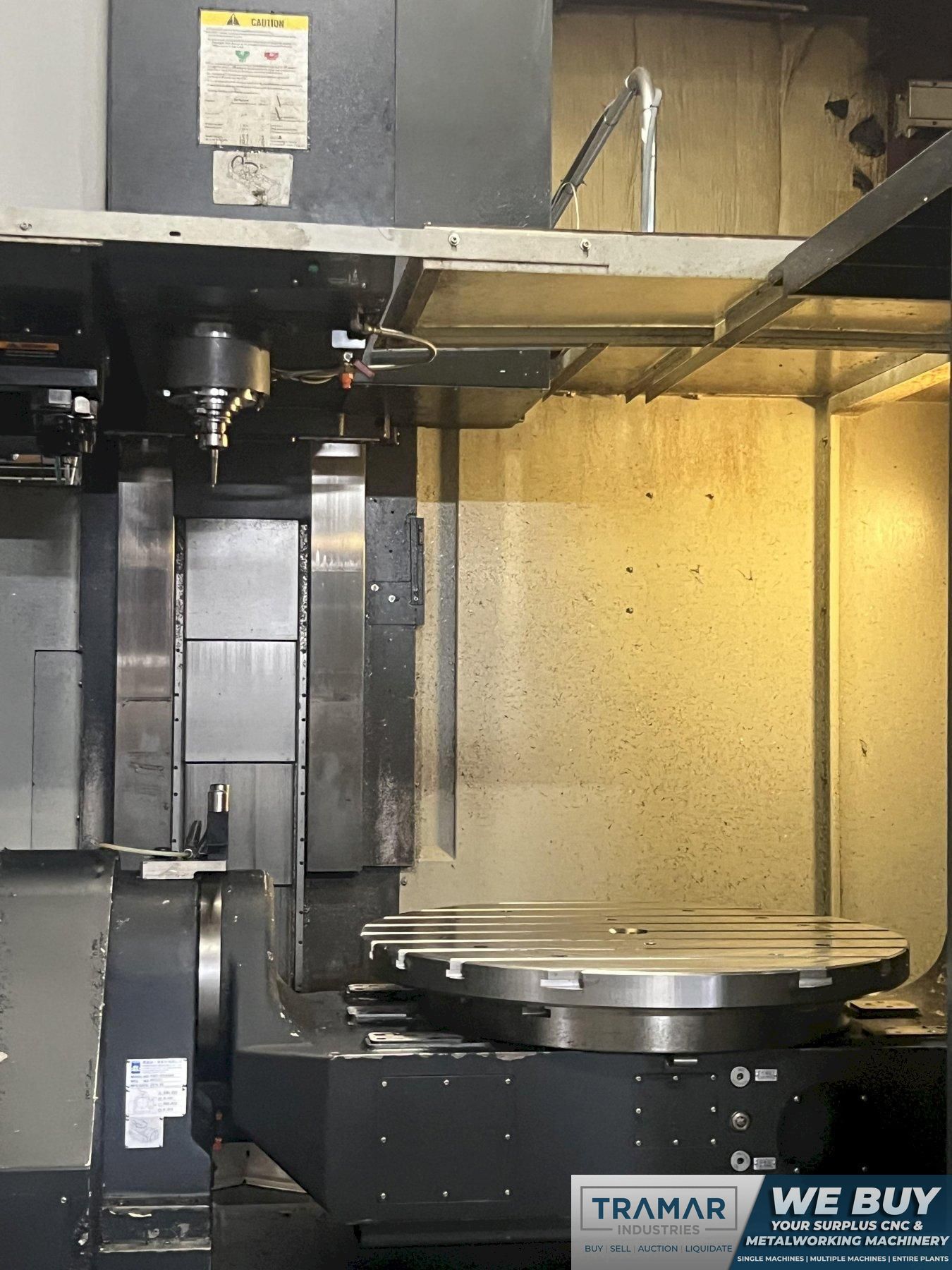

| Table Size | 24.8" Diameter | ||
| Max Table Load | 1102 pounds | ||
| X-Axis Travel | 50 inches | ||
| Y-Axis Travel | 40 inches | ||
| Z-Axis Travel | 30.8 inches | ||

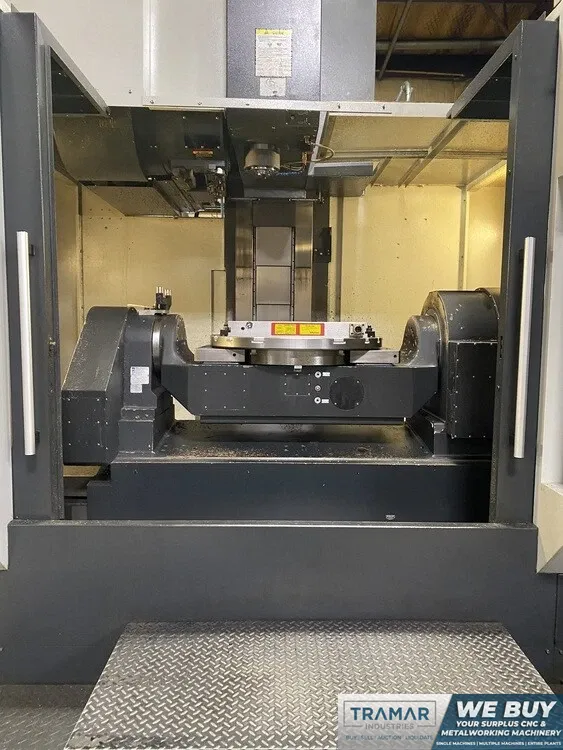

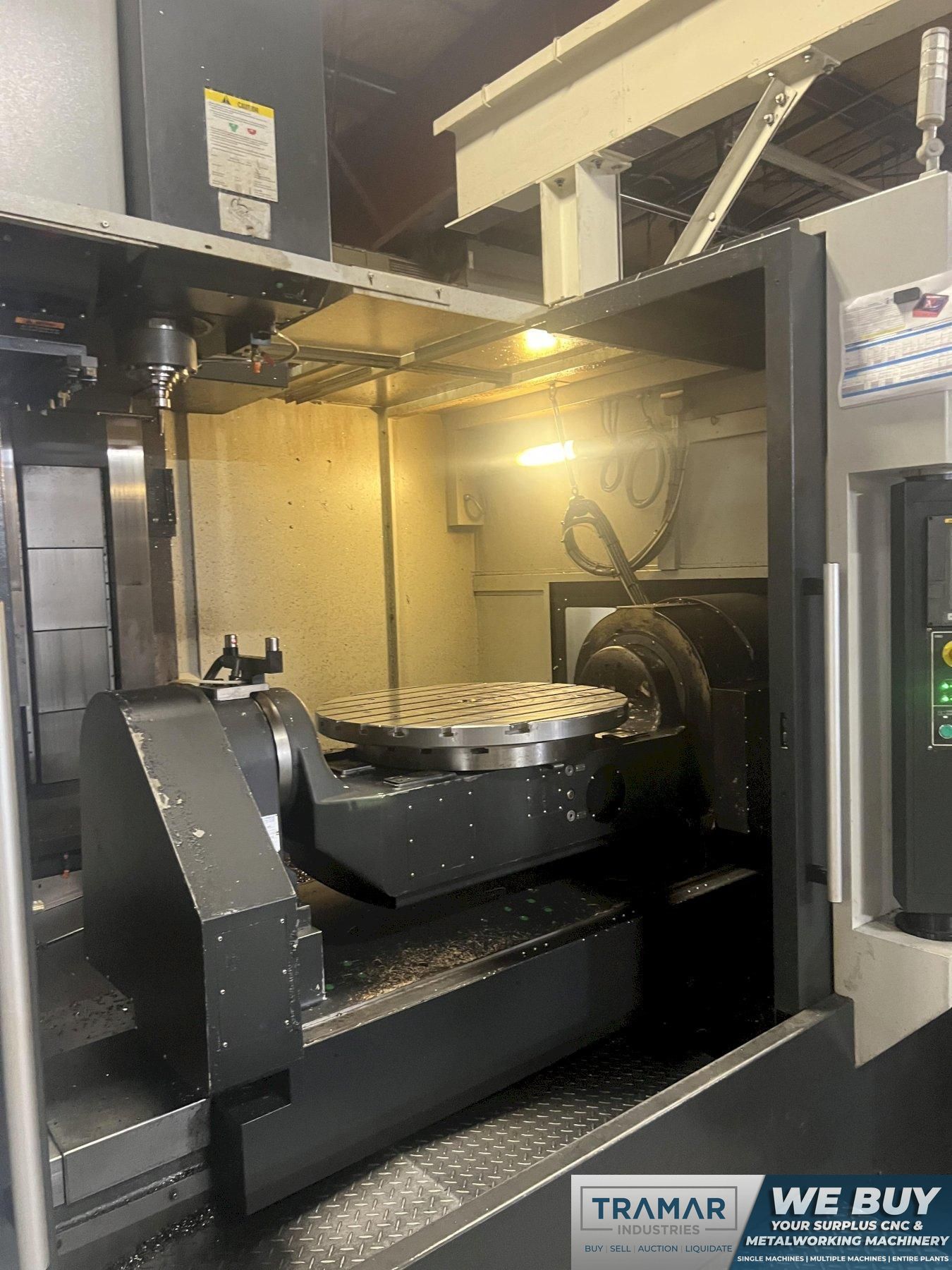

| B Axis Rotary | 360° | ||
| A Axis Rotation | +120° to -30° (150° Total) | ||
| Rapid Traverse Rate (X/Y/Z) | (1181 ipm X & Y) (787 ipm Z) (16.7 rpm B) (8.3 rpm A) | ||
| Spindle Taper | CAT 40 | ||
| Spindle Speed | 15,000 rpm | ||
| Main Motor | 35 hp | ||
| ATC Capacity | 40 | ||
| Coolant Thru Spindle | yes | ||
| Machine Dimensions | 151" x 160" x 147" | ||
| Machine Weight | 33100 pounds | ||
|
Equipped With
- Fanuc 0iMF CNC Control

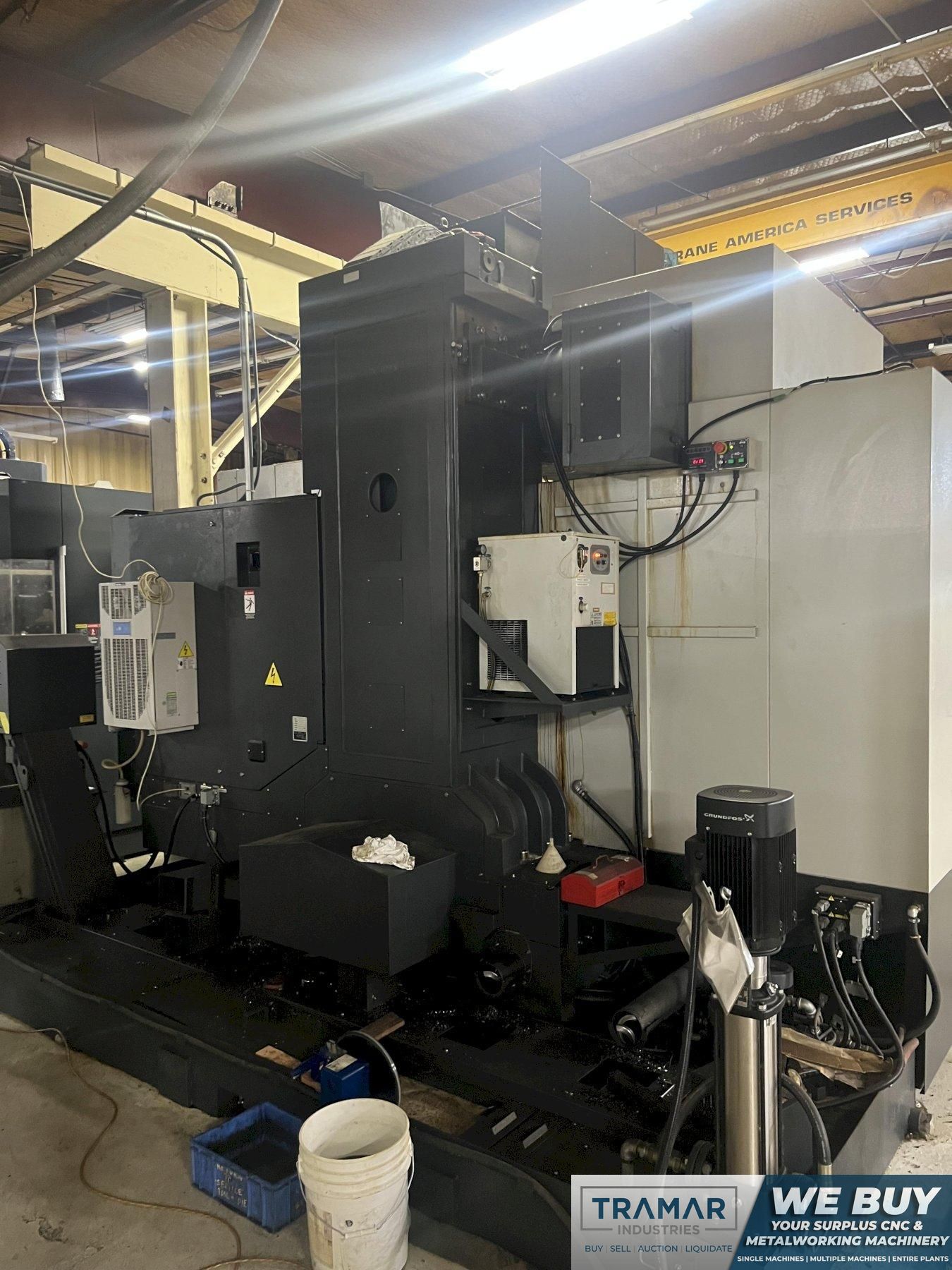

- 5 Axis Machining (4+1 Simultaneous) - Chip Conveyor - Coolant Tank & Pumps - Coolant Thru Spindle 290 psi - Spindle Chiller - Fanuc Tilted Working Plane - Tool Length Measurement - Rigid Tapping - Custom Macro B - AIAPC 20 Block Look Ahead - High Speed Skip - Manual Guide i (Conversational Programming) |
|||
