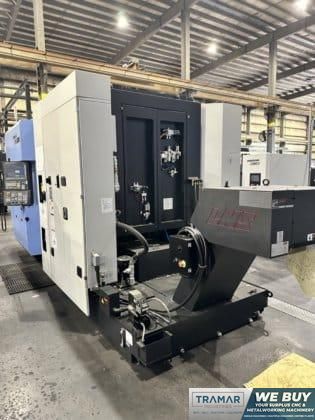

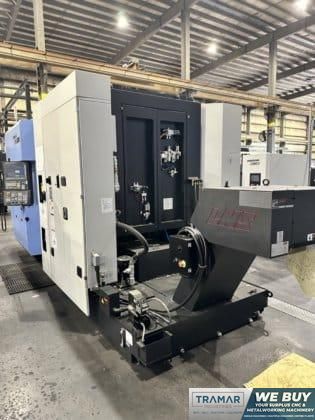

2021 Doosan NHP 5000 Horizontal Machining Center - High Precision Performance
Make: DOOSAN
Model: NHP 5000
Specifications |
|||
|---|---|---|---|
| Year | 2021 | ||
| CNC Control | yes | ||
| Type of CNC Control | Fanuc 31iMB CNC Control | ||
| # Axis | 4 | ||

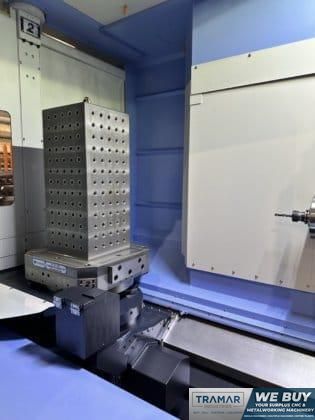

| Pallet Length | 19.7 inches | ||
| Pallet Width | 19.7 inches | ||
| X-Axis Travel | 28.7 inches | ||
| Y-Axis Travel | 28.7 inches | ||
| Z-Axis Travel | 34.5998 inches | ||

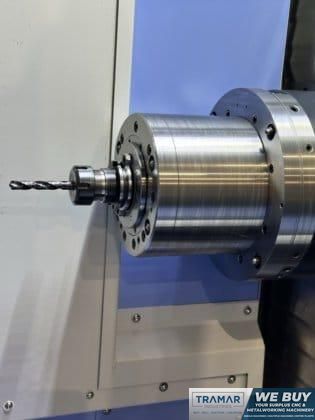

| Spindle Taper | CAT 40 BP | ||
| Spindle Speed | 15,000rpm | ||
| Spindle Motor (HP) | 40hp | ||
| Tool Changer Capacity | 120 | ||
| Coolant Through Spindle | yes | ||
| Machine Dimensions | 214.6″ x 105.5″ x 113.4″ | ||
| Machine Weight | 25500 pounds | ||
|
Equipped With
Equipped With:
|
|||
