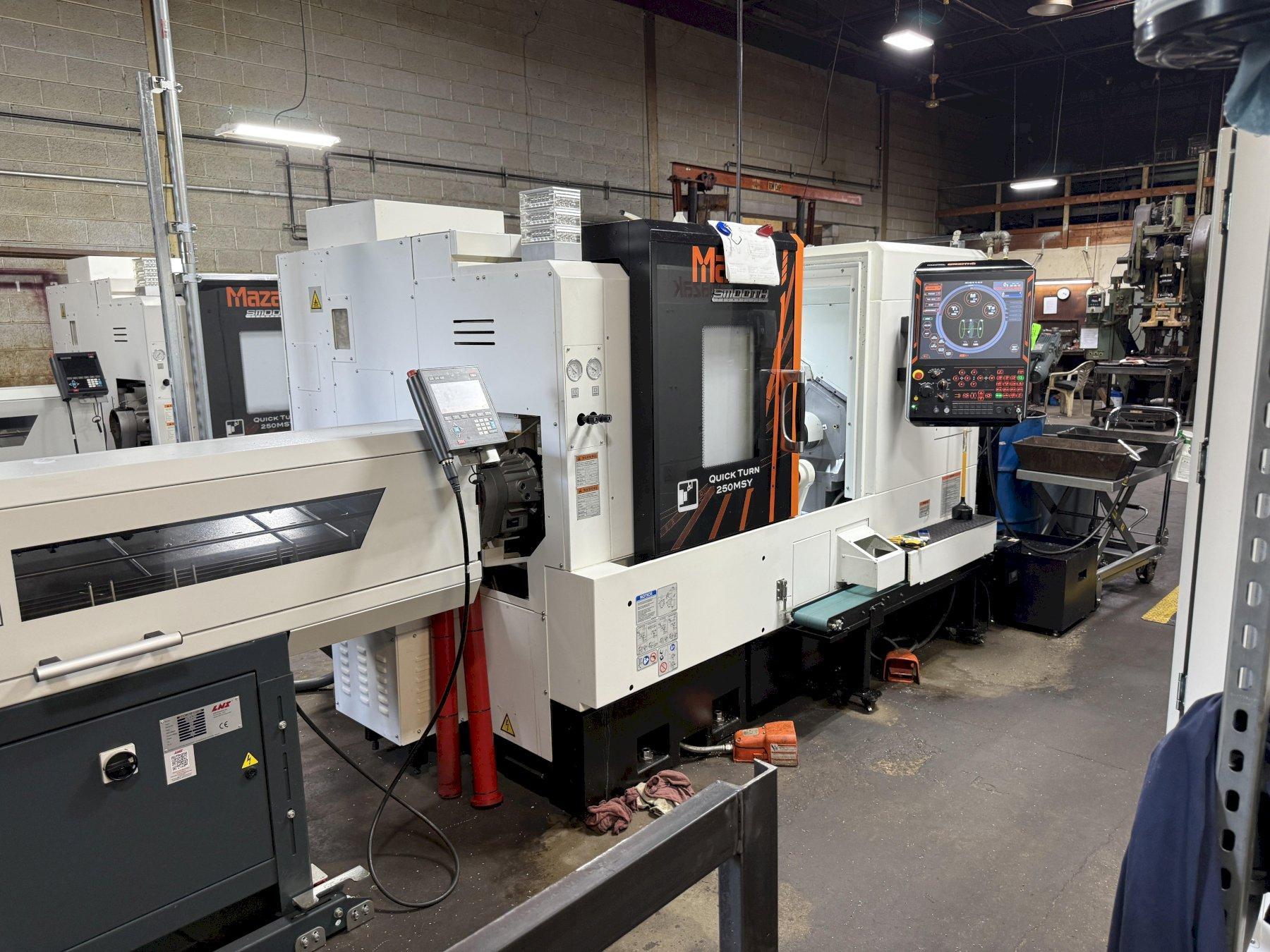

2023 Mazak Quick Turn 250MSY CNC Lathe For Sale
Make: MAZAK
Model: Quick Turn 250MSY
Specifications |
|||
|---|---|---|---|
| Year | 2023 | ||
| CNC Control | yes | ||
| Type of CNC Control | Mazatrol SmoothG | ||
| # Axis | 6 | ||
| Swing | 26.5 inches | ||
| Turning Diameter | 14.75 inches | ||
| Center Distance | 21.27 inches | ||
| Chuck Size | 10 inches | ||
| Bar Capacity | 3.0 inches | ||
| X Axis Travel | 9 inches | ||
| Y Axis Travel | 4 inches | ||
| Z Axis Travel | 22.75 inches | ||
| B Axis Travel (Sub Spindle) | 23 inches | ||
| C Axis Index | 0.001° | ||
| Spindle Nose | A2-8 | ||
| Spindle Speed | 4,000 rpm | ||
| Main Motor | 35 hp | ||
| Tailstock | yes | ||
| Y Axis | yes | ||
| Live Tooling | yes | ||
| Live Tooling Speed | 6,000 rpm | ||
| Live Tooling Motor | 10 hp | ||
| Sub Spindle | yes | ||
| Sub Spindle Chuck | 6 inches | ||
| Sub Spindle Nose | A2-5 | ||
| Sub Spindle Speed | 6,000 rpm | ||
| Sub Spindle Motor (HP) | 15/10 hp | ||
| Turret Capacity | 12 | ||
| Machine Dimensions | 102" x 78" x 75" | ||
| Machine Weight | 12000 pounds | ||
|
Equipped With
- Mazak Mazatrol SmoothG CNC Control
- Royal QG-80 Acu-Length Quick Change Collet Chuck on Main Spindle - Royal 16C Accu Length Collet Chuck on Sub Spindle - Kitagawa 10" & 6" 3-Jaw Chucks - Automatic Parts Catcher - Parts Conveyor - Work Ejector for Head 2 - Mazak Super Flow Hi-Pressure Coolant Unit (1,000 PSI) - Chip Conveyor - Coolant Tank & Pumps - Overload Protection System - LNS Quick Load Servo 80+ Bar Feeder - Live Tooling - Sub Spindle - Y Axis - Auto Tool Length Measurement - 2 Right Angle Live Tool Holders - 1 Straight Live Tool Holder |
|||
