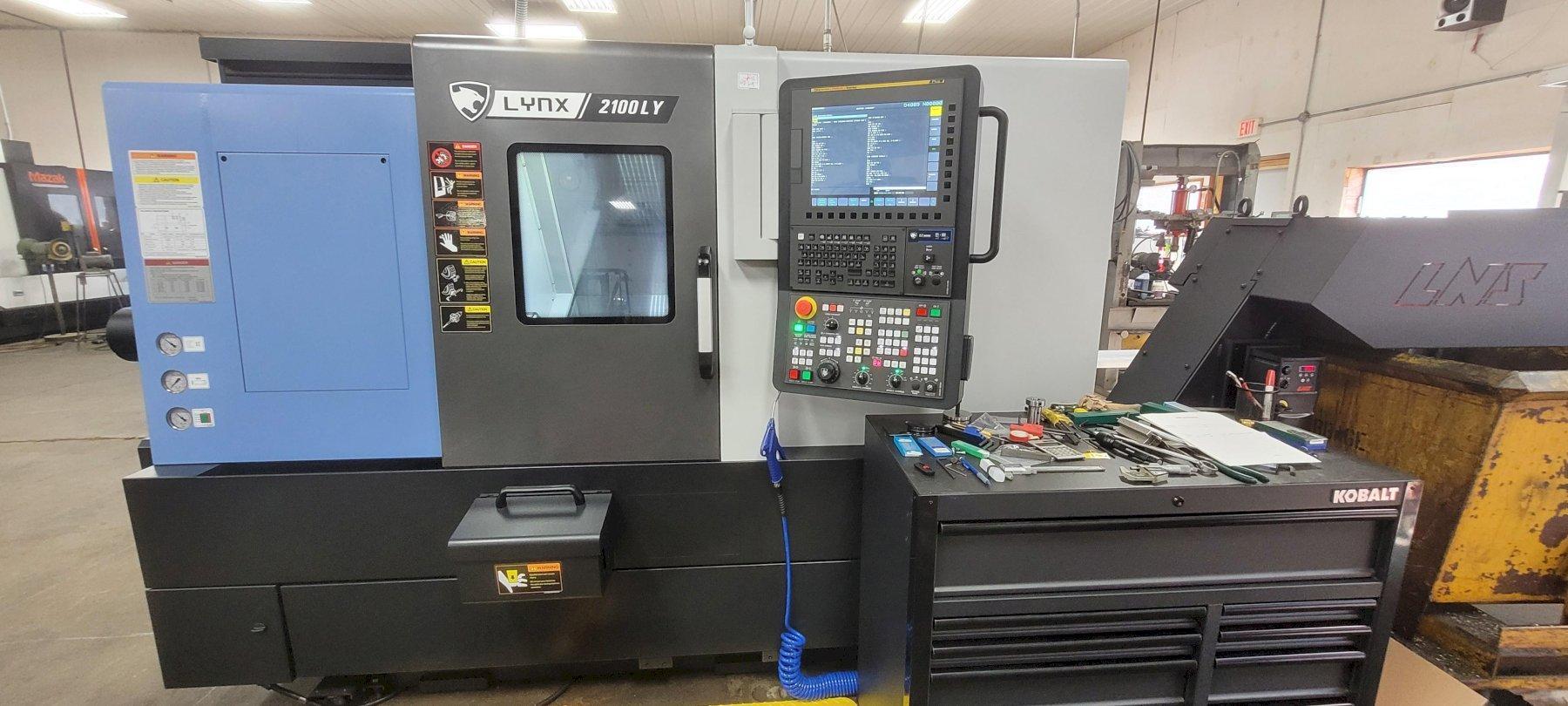

2024 DN Solutions (Doosan) Lynx 2100LYB Used CNC Lathe For Sale
Make: DN SOLUTIONS
Model: Lynx 2100LYB
Specifications |
|||
|---|---|---|---|
| Year | 2024 | ||
| CNC Control | yes | ||
| Type of CNC Control | Fanuc | ||
| # Axis | 4 | ||
| Swing | 23.6 inches | ||
| Turning Diameter | 11.8 inches | ||
| Center Distance | 20.1 inches | ||
| Chuck Size | 8 inches | ||
| Bar Capacity | 2.6 inches | ||
| X Axis Travel | 8.1 inches | ||
| Y Axis Travel | 4.1 inches | ||
| Z Axis Travel | 22 inches | ||
| C Axis Index | 0.001° | ||
| Rapid Traverse (X/Y/Z) | 1181/394/1417 ipm | ||
| Spindle Speed | 4,500 rpm | ||
| Main Motor | 20 hp | ||
| Tailstock | yes | ||
| Y Axis | yes | ||
| Live Tooling | yes | ||
| Live Tooling Speed | 6,000 rpm | ||
| Live Tooling Motor | 5 hp | ||
| Sub Spindle | no | ||
| Turret Capacity | 12 | ||
| Machine Dimensions | 114" x 76" x 70" | ||
| Machine Weight | 7490 pounds | ||
|
Equipped With
- Fanuc i Series CNC Control
- Collet Chuck - 8" 3 Jaw Chuck - Chip Conveyor - 2 Live Tool Holders - Misc Static Tooling - 200 Cutting Hours |
|||
