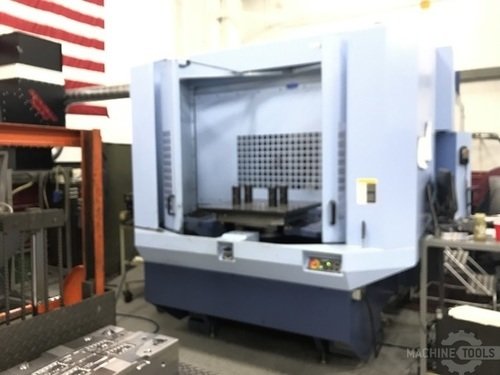

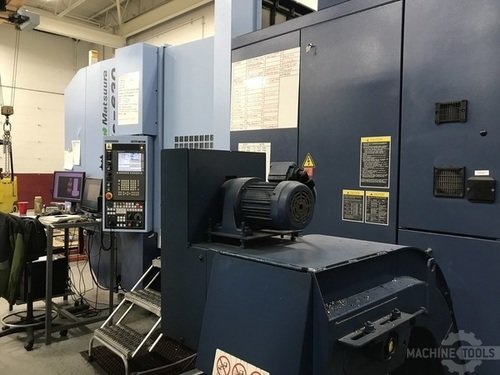

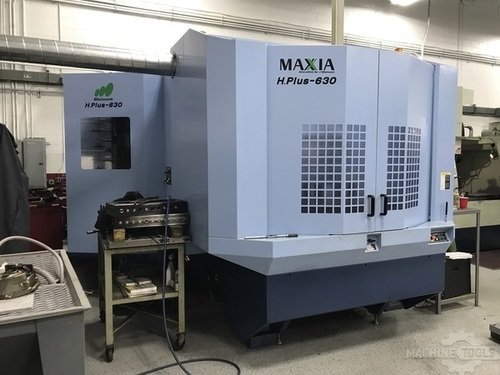

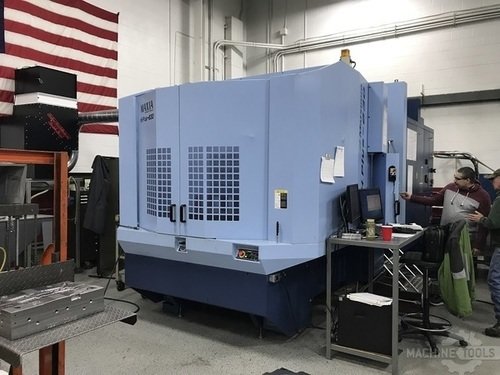

Contact UsMATSUURA MODEL H. PLUS 630 CNC HORIZONTAL MACHINING CENTER w/G-Tech 30i Control (Fanuc-Based), 24.8" Pallets, Full 4th Axis, 12K Spindle, 60 ATC, CT50 Taper, Low Hours, Probing, 2011
Make: MATSUURA
Model: H.PLUS-630
Specifications |
|||
|---|---|---|---|
| Year | 2011 | ||
| CNC Control | yes | ||
| Type of CNC Control | G-Tech 30i | ||
| # Axis | 4 | ||
| Pallet-W | 24.8 inches | ||
| Pallet-L | 24.8 inches | ||
| X | 41.33 inches | ||
| Y | 36.22 inches | ||
| Z | 38.97 inches | ||
| Power | 40 horsepower | ||
| RPM | 12000 | ||
| # ATC | 60 | ||
| Taper | 50 | ||
| Dimensions | 140" x 240" x 137"H | ||
|
Equipped With
Built

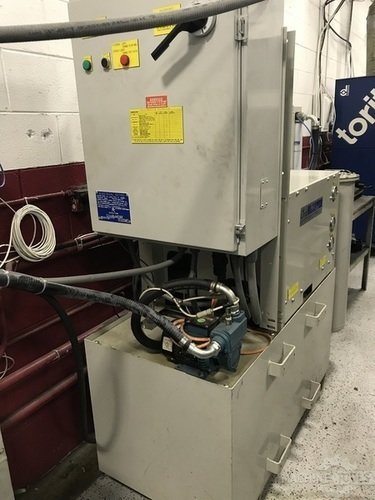

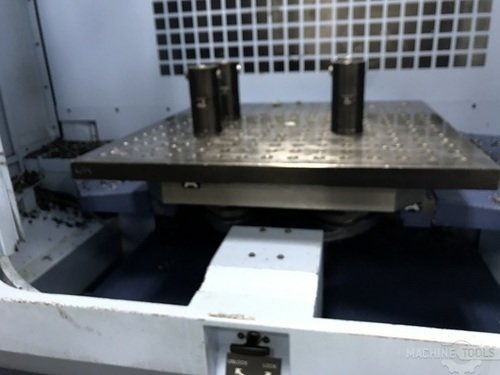

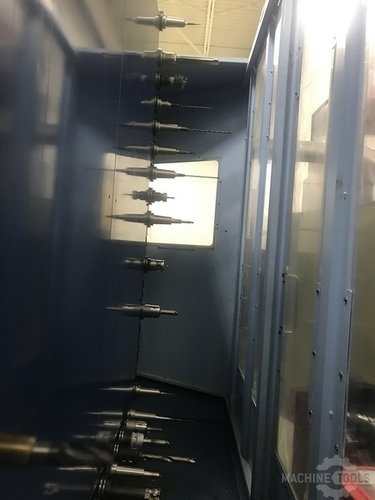

Installed new 2011 2012 Serial Number 18469 Control G-Tech 30i Number of Axis 4 Pallet Size 24.8" x 24.8" Pallet Capacity 2,640 Lbs Pallet Indexing (B-Axis) Full 4th X-Axis Travel 41.33" Y-Axis Travel 36.22" Z-Axis Travel 38.97" X-Axis Rapid Feedrate 1968 IPM Y-Axis Rapid Feedrate 1968 IPM Z-Axis Rapid Feedrate 1968 IPM Spindle Speed 12,000 RPM Spindle Taper CAT 50 Main Motor 40 Horsepower Tool Changer Capacity 60 Machine Hours 4,174 Cutting Hours Machine Dimensions 140" x 240" x 137"H Equipped With: Full 4th Axis with Indoctosyn® Scales Manual Guide I Conversational Programming (2) Tombstones Approximately 50 Standard Tool Holders Overhead Coolant Flush System Prepped for Hi-Pressure Coolant Thru Spindle Chip Blaster JV-40 Hi-Pressure Coolant Thru Spindle (1,000 PSI) Internal Spiral Conveyors Lift-Up Chip Conveyor Renishaw In-Process Measurement Probe Renishaw NC-4 Laser Tool Measurement System Fanuc Data Server w/1GB Memory |
|||
