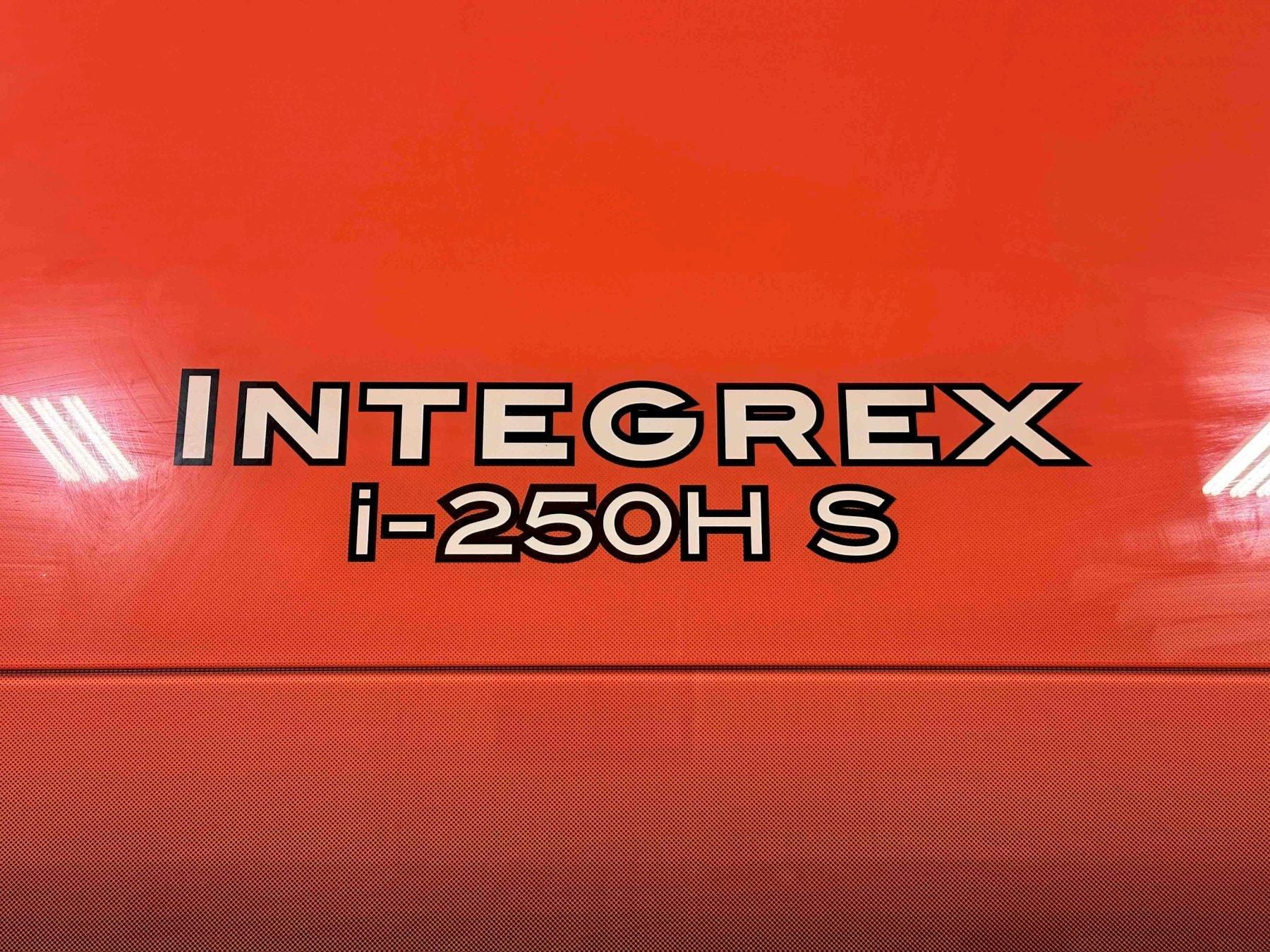

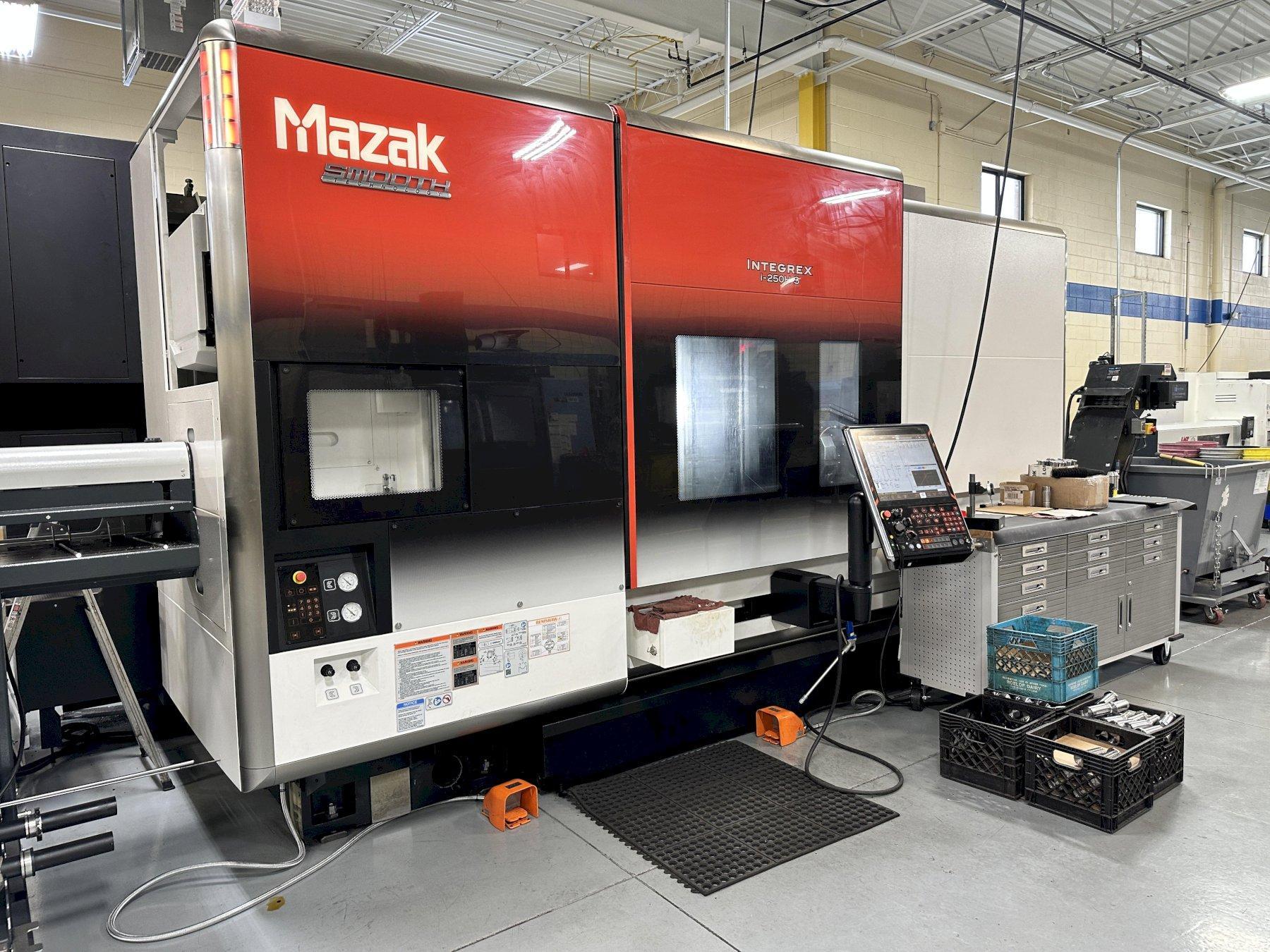

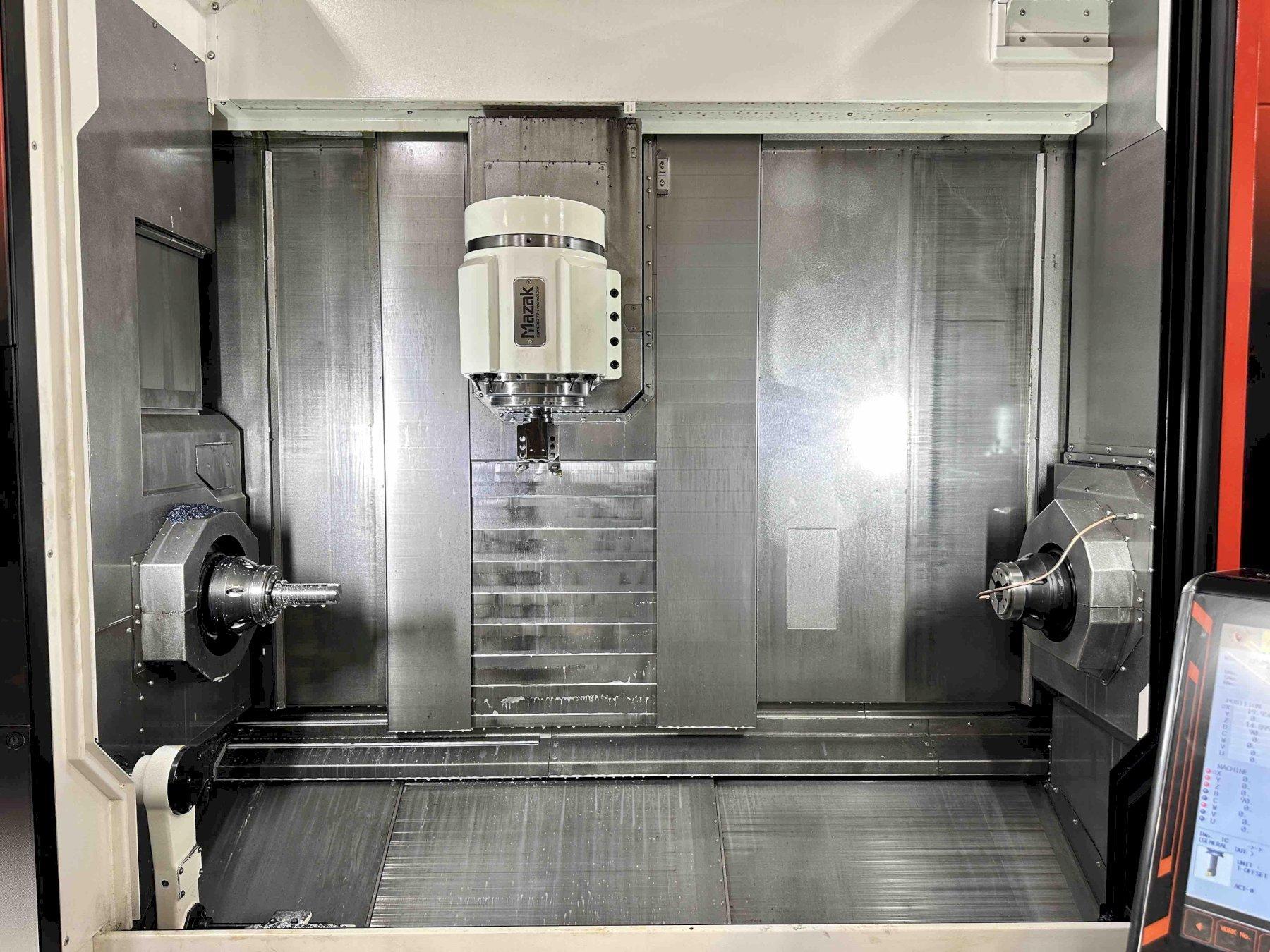

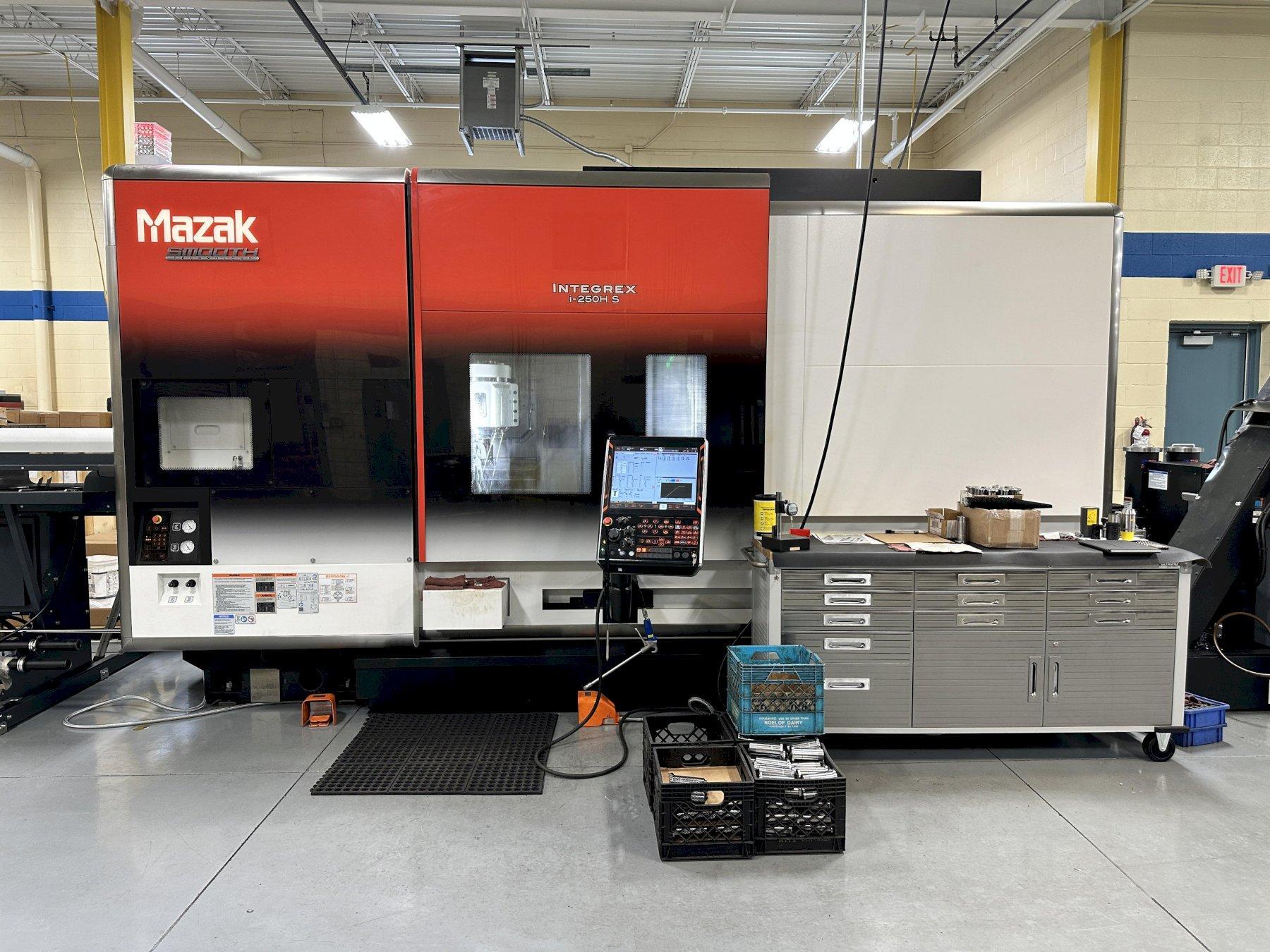

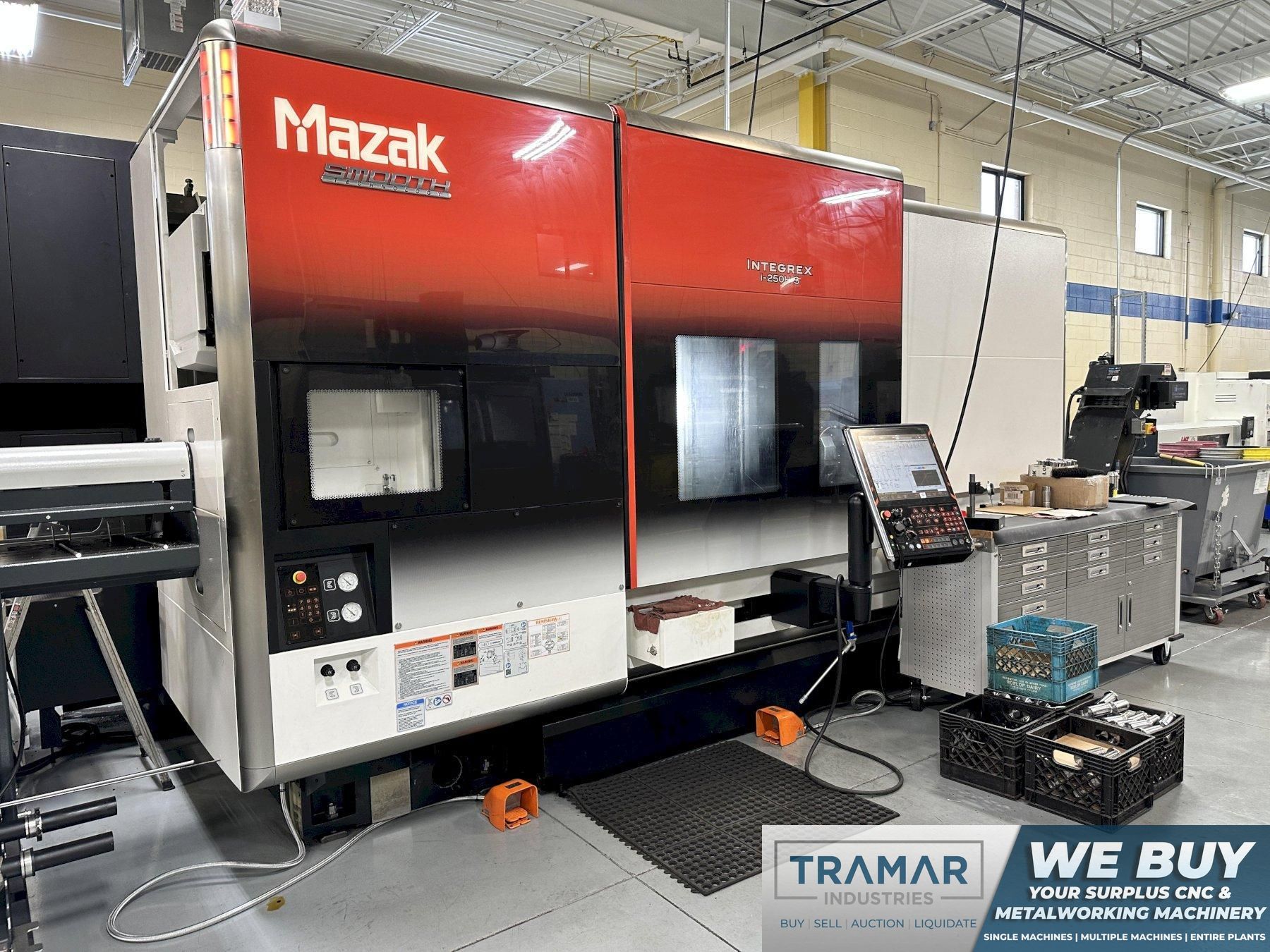

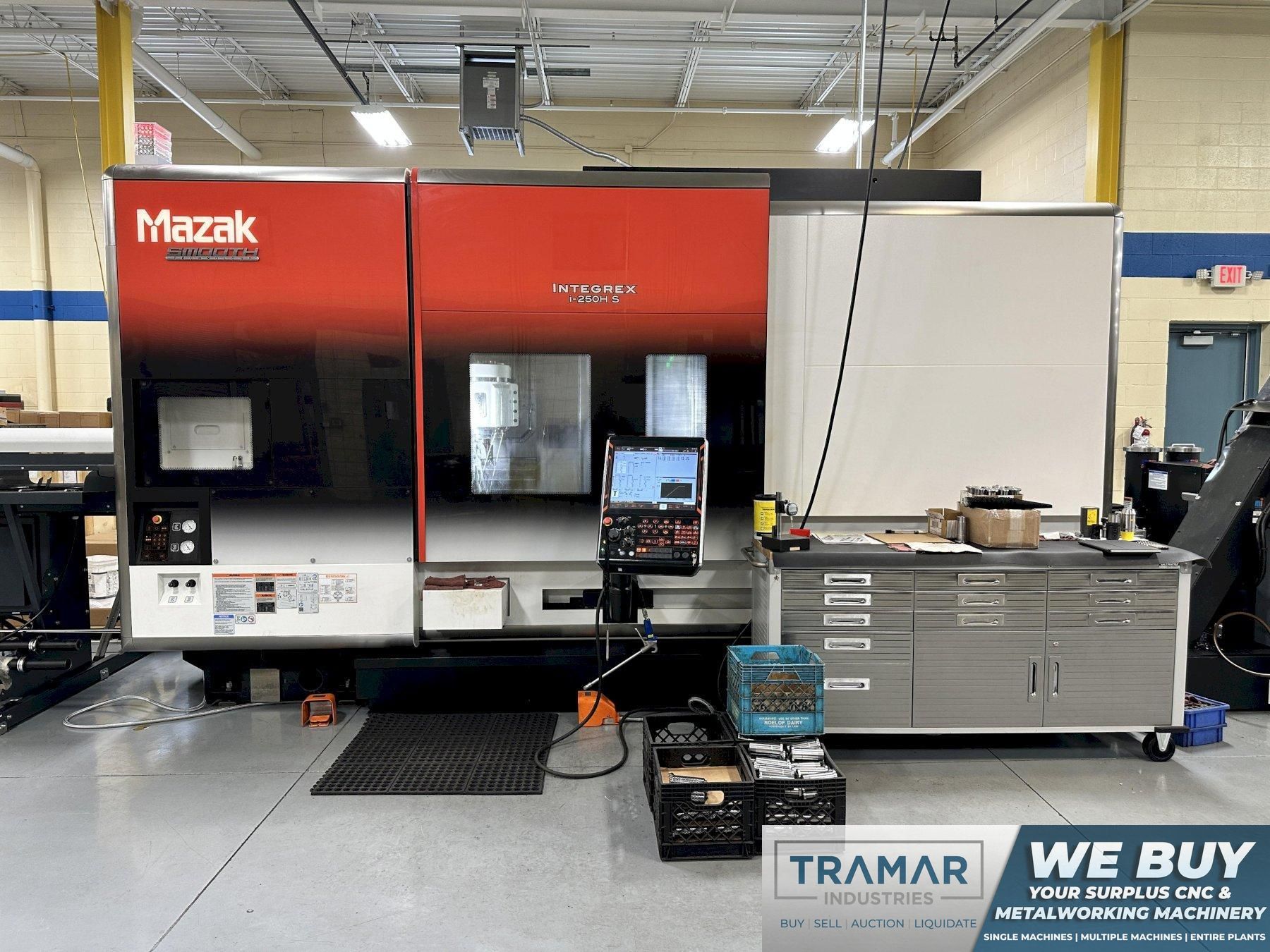

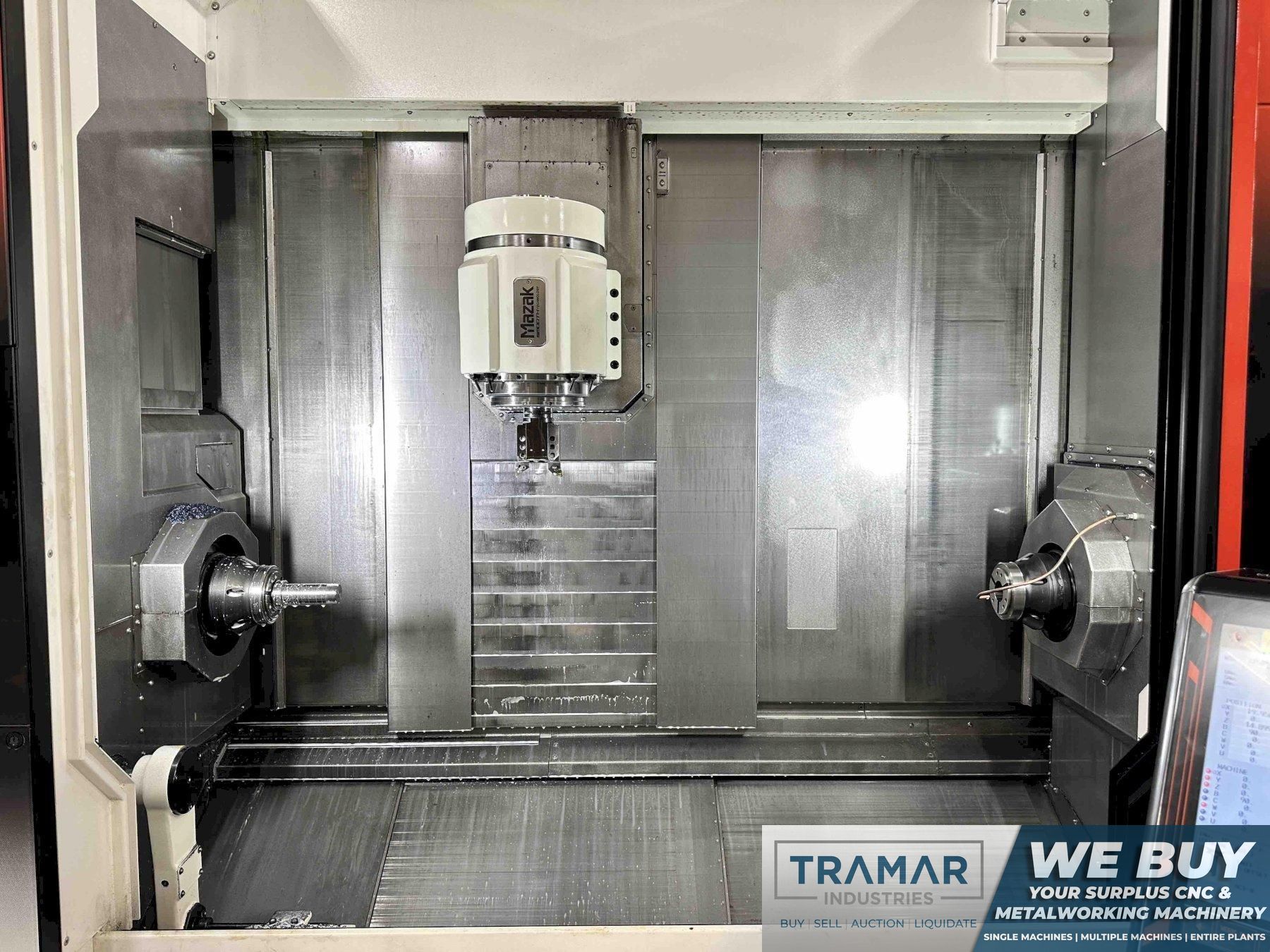

Mazak Integrex i-250HS/1500U CNC Multi-Tasking CNC Lathe For Sale - 2022
Make: MAZAK
Model: Integrex i-250HS
Specifications |
|||
|---|---|---|---|
| Year | 2022 | ||
| CNC Control | yes | ||

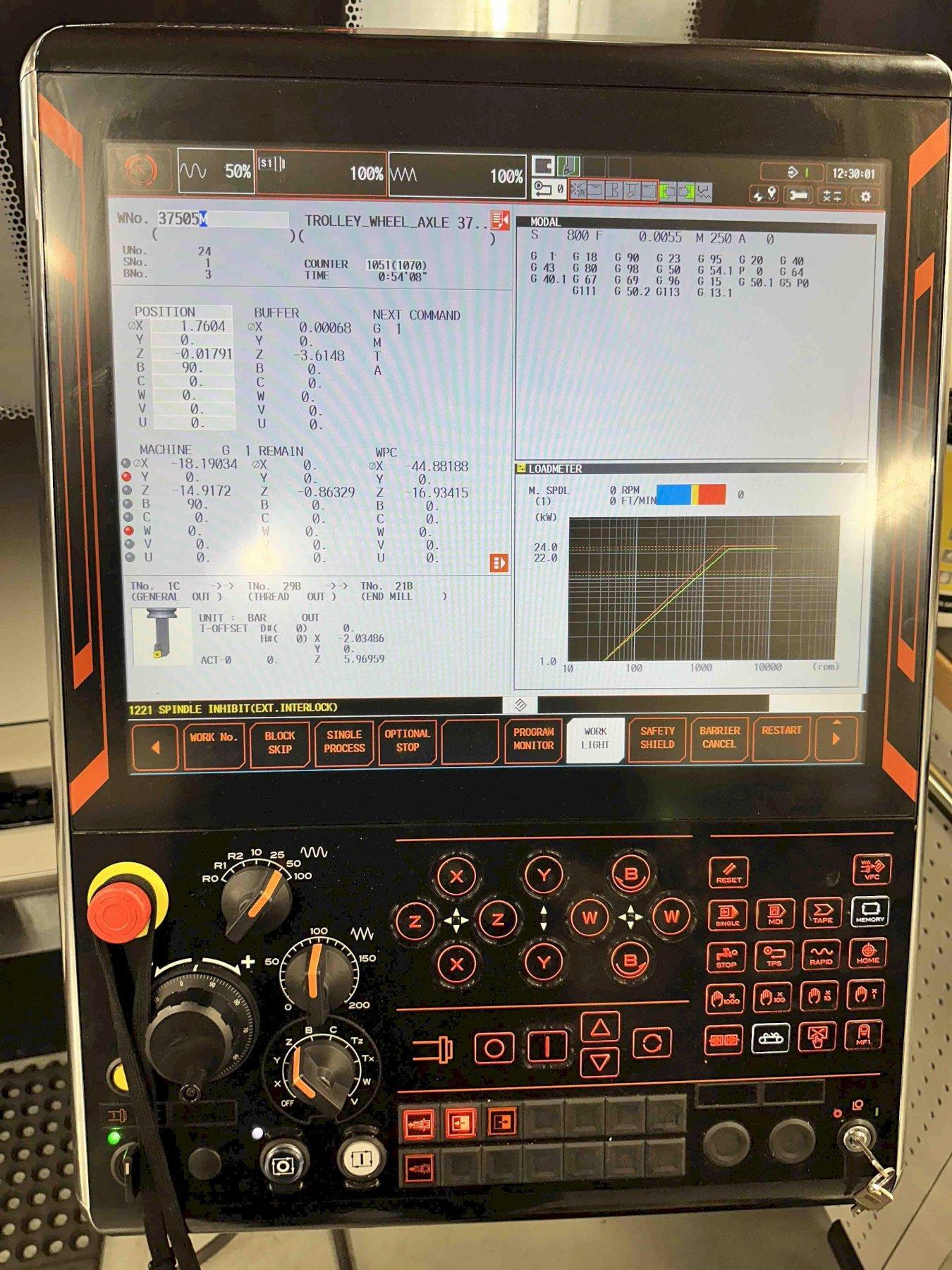

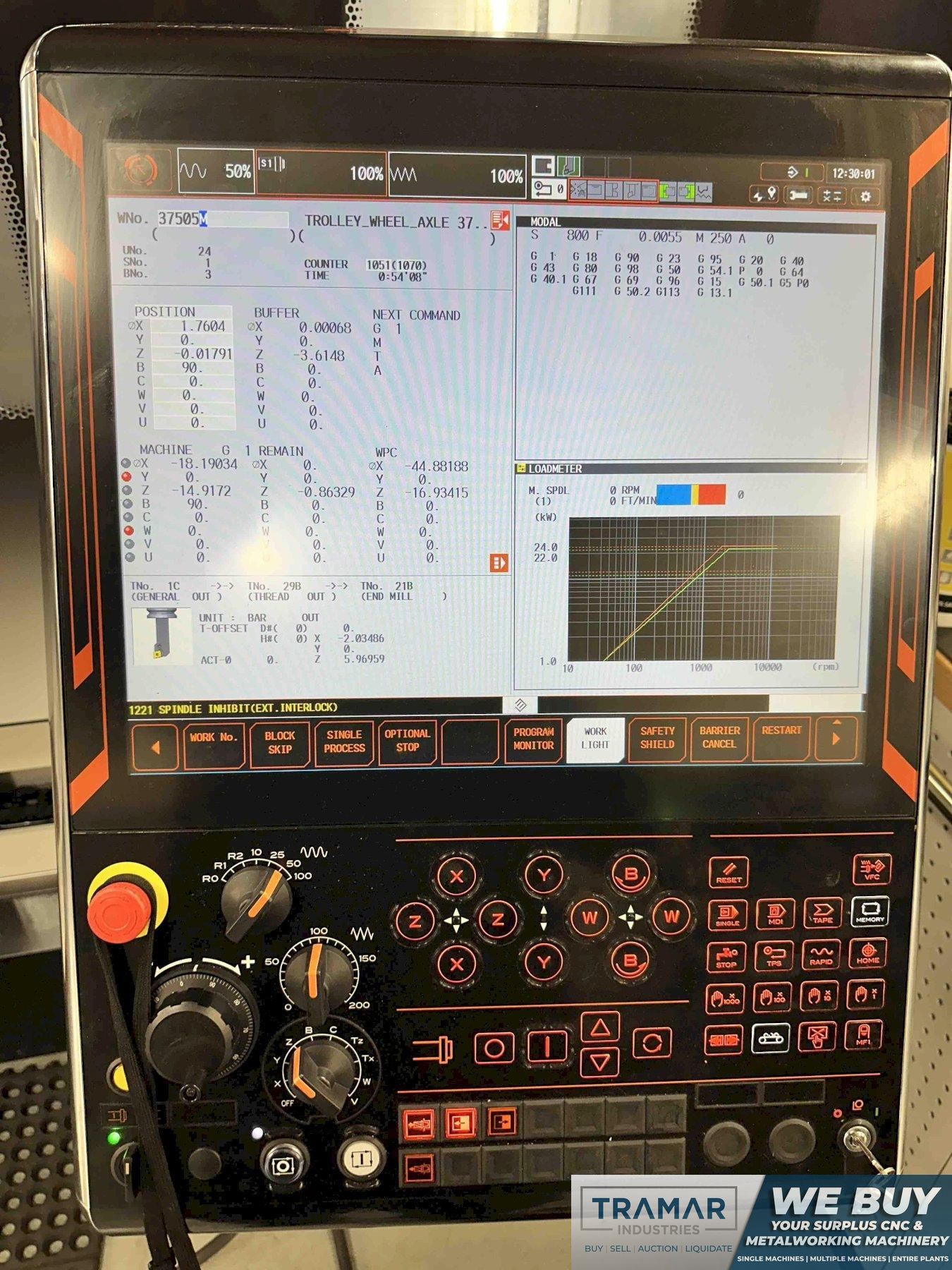

| Type of CNC Control | Mazatrol Smooth AI - Touchscreen | ||

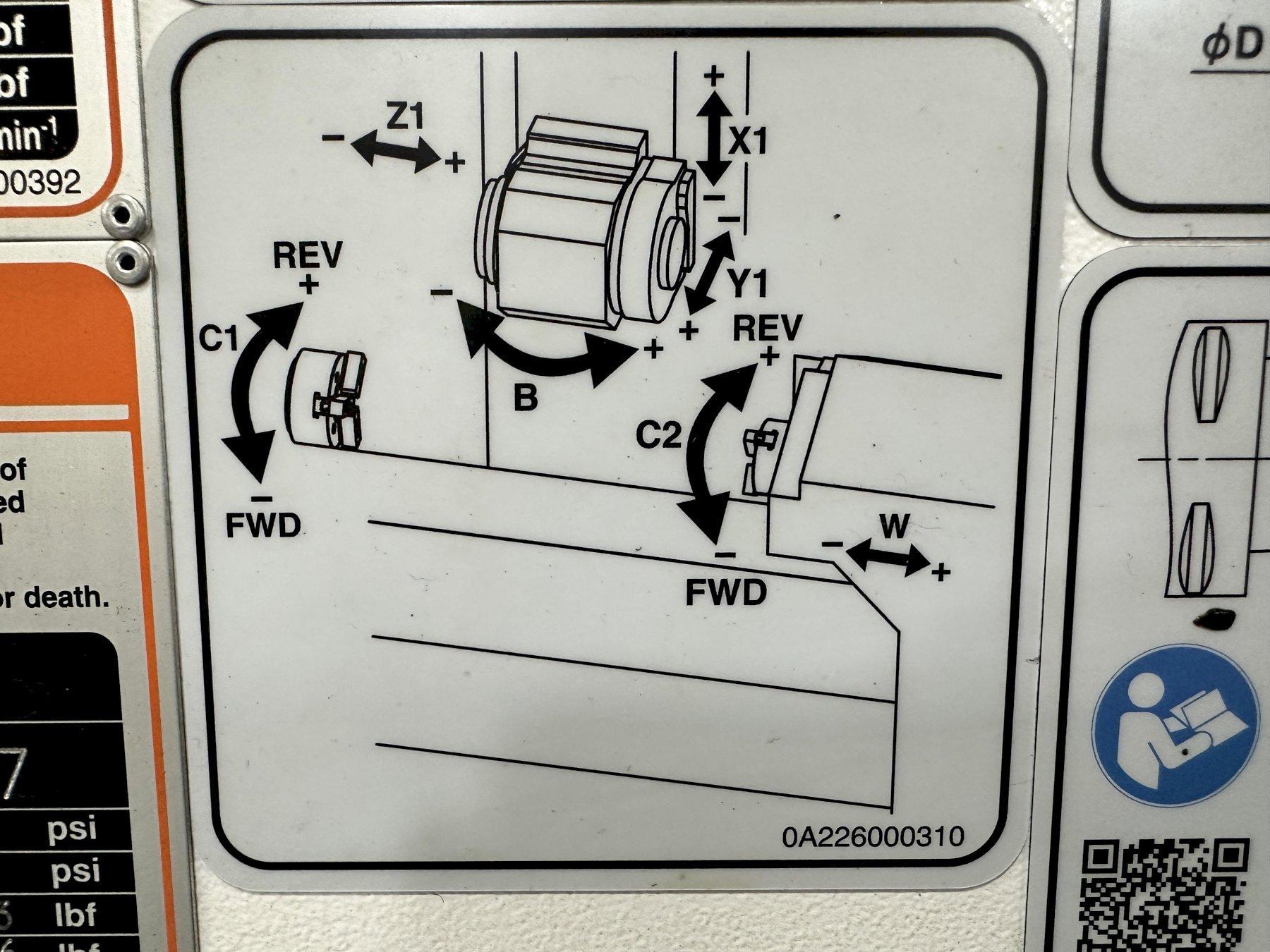

| # Axis | 7 | ||
| Swing | 26.38 inches | ||
| Turning Diameter | 26.38 inches | ||
| Center Distance | 60 inches | ||
| Chuck Size | 8 inches | ||
| Bar Capacity | 2.56 inches | ||

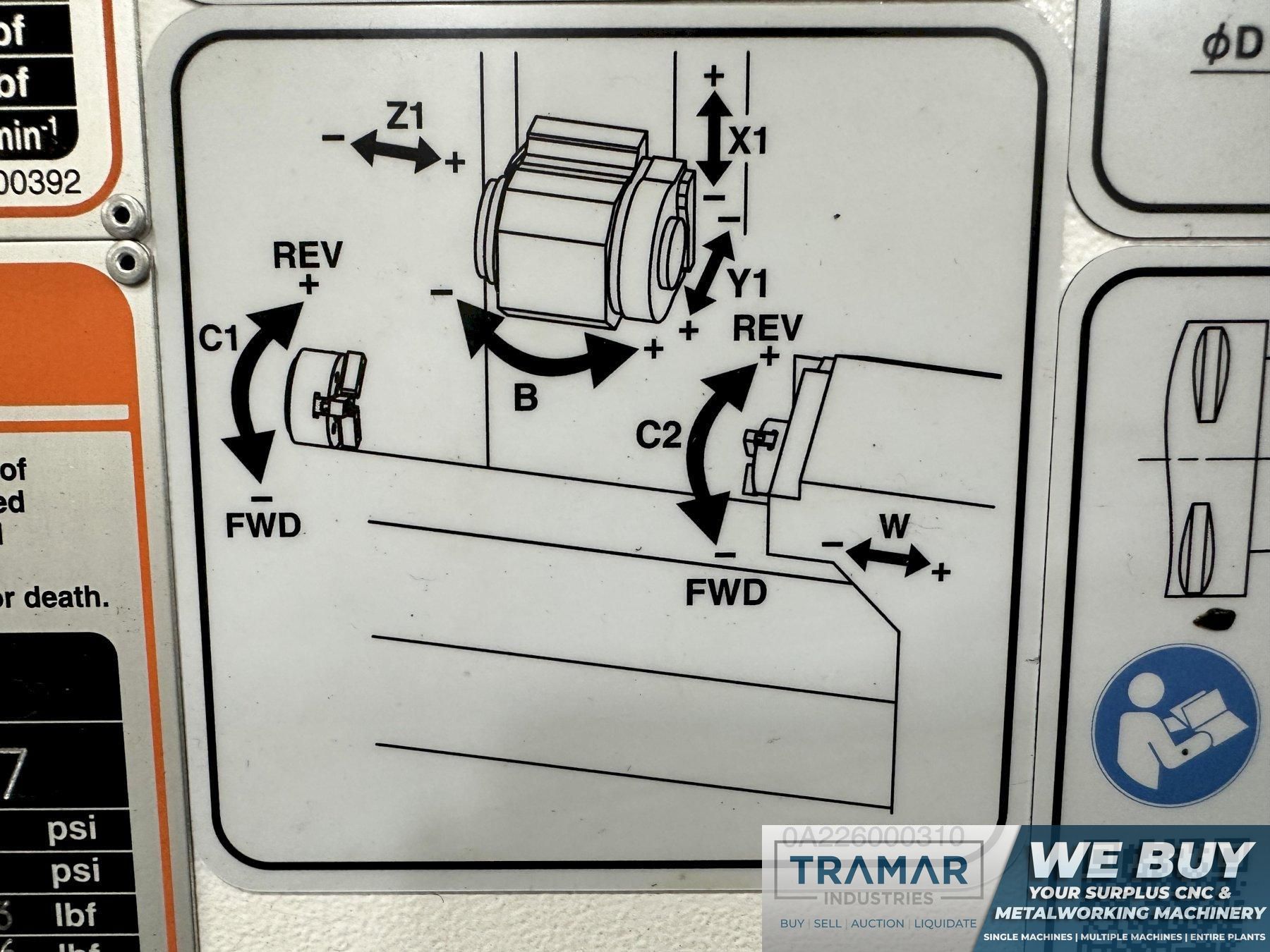

| X Axis Travel | 27.36 inches | ||
| Y Axis Travel | 11.81 inches | ||
| Z Axis Travel | 62.4 inches | ||
| W Axis Travel | 61.77 inches | ||
| B Axis Indexing Range | -30° to +210° | ||
| C1/C2 Axis Index | 0.0001° - Both Spindles | ||
| Rapid Traverse (X/Y/Z/W) | 1969/1575/1969/1181 rpm | ||
| Spindle Nose | A2-6 | ||
| Spindle Speed | 5,000 rpm | ||
| Main Motor | 30 hp | ||
| Tailstock | no | ||
| Y Axis | yes | ||

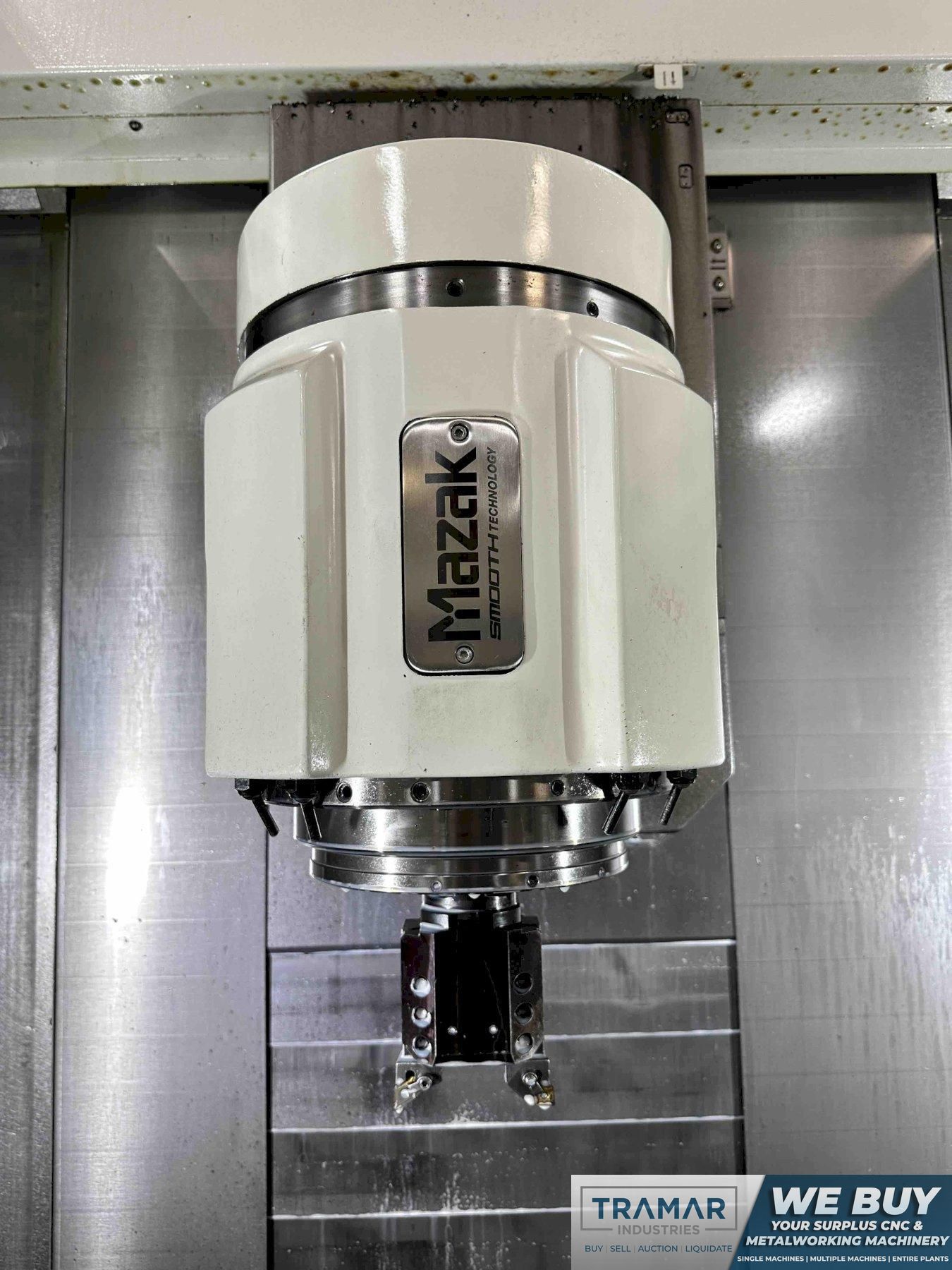

| Live Tooling | yes | ||

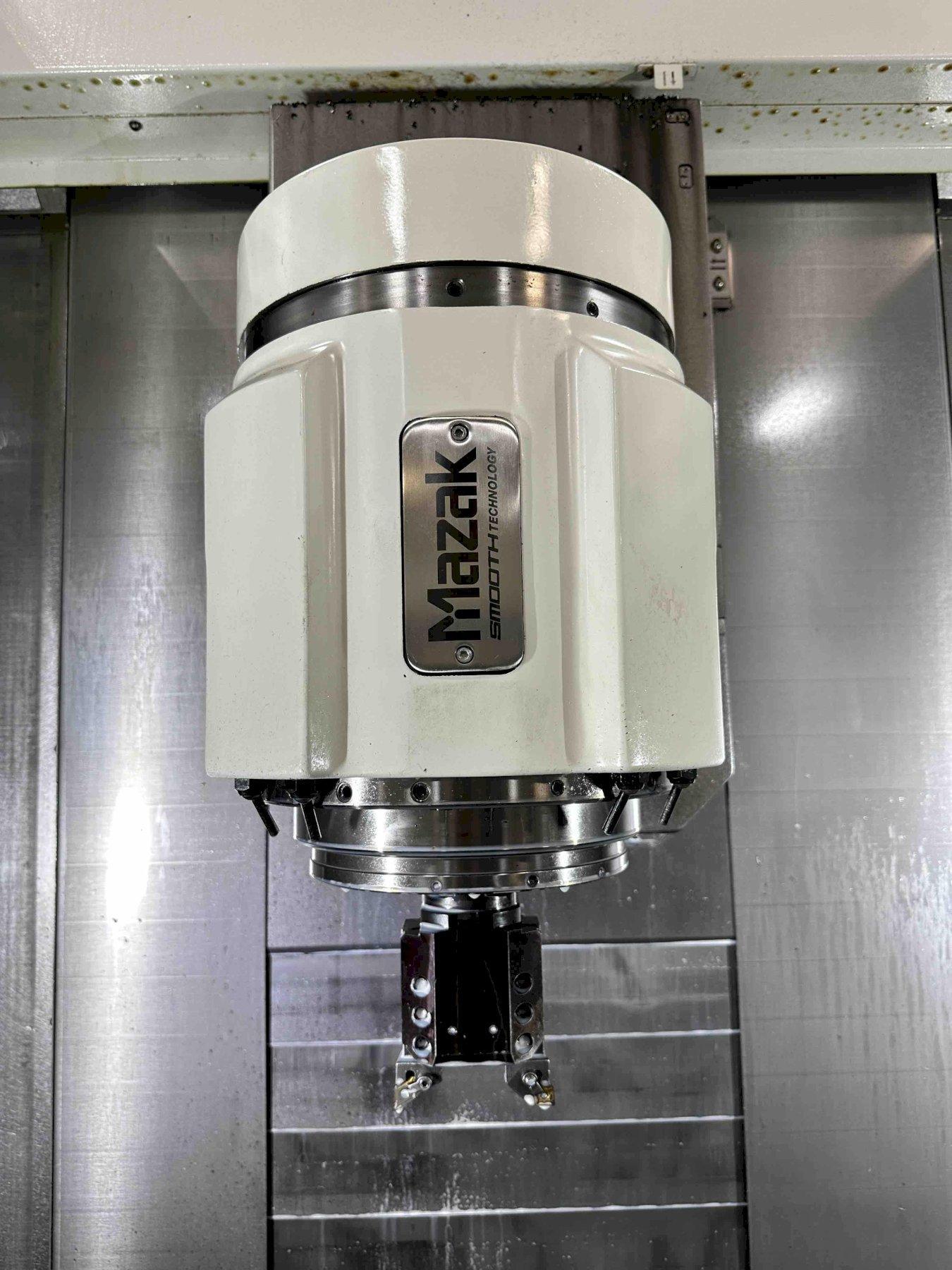

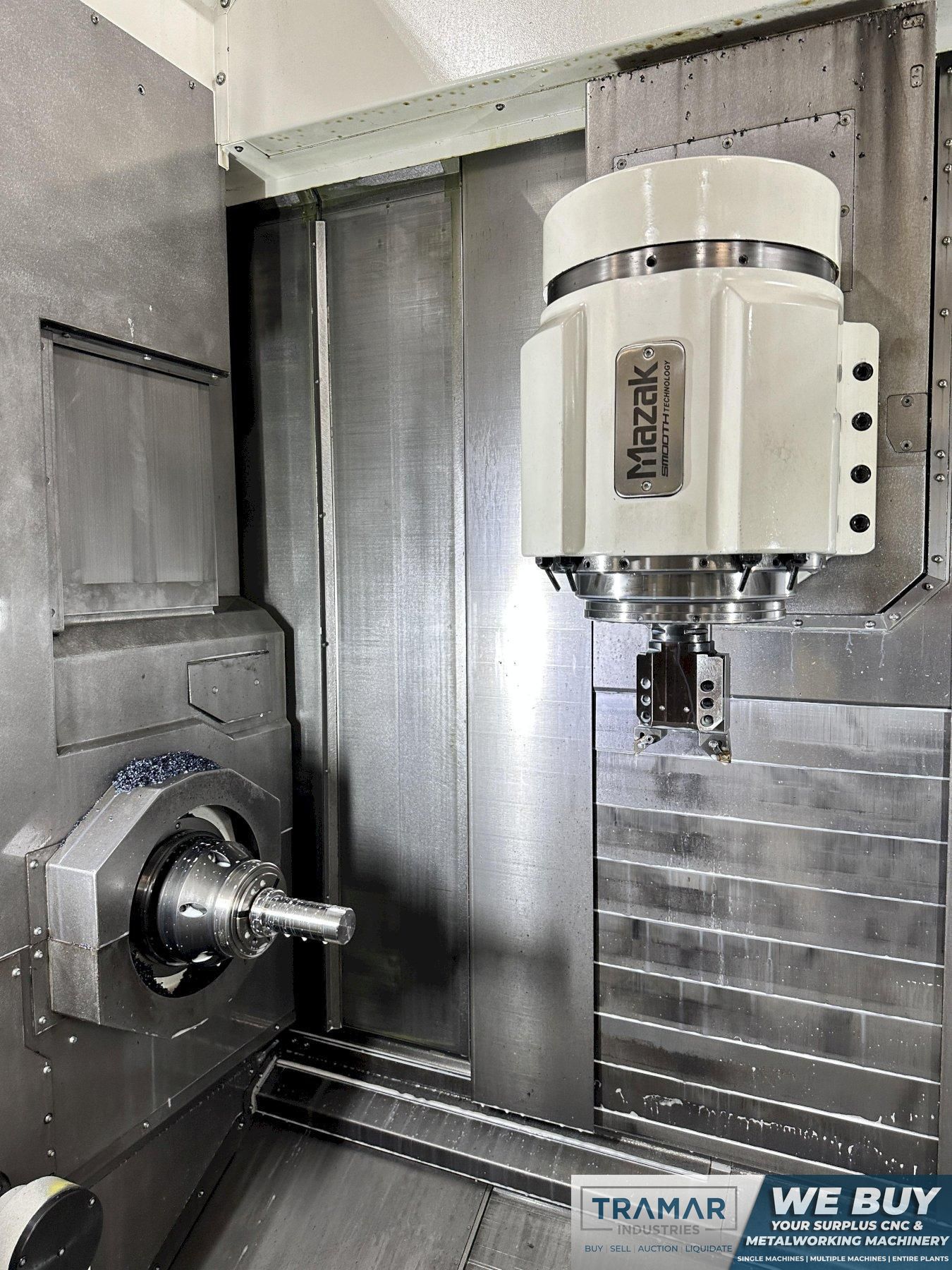

| Live Tooling Spindle Taper | CAPTO C6 | ||
| Live Tooling Speed | 12,000 rpm | ||
| Live Tooling Motor | 32 hp | ||

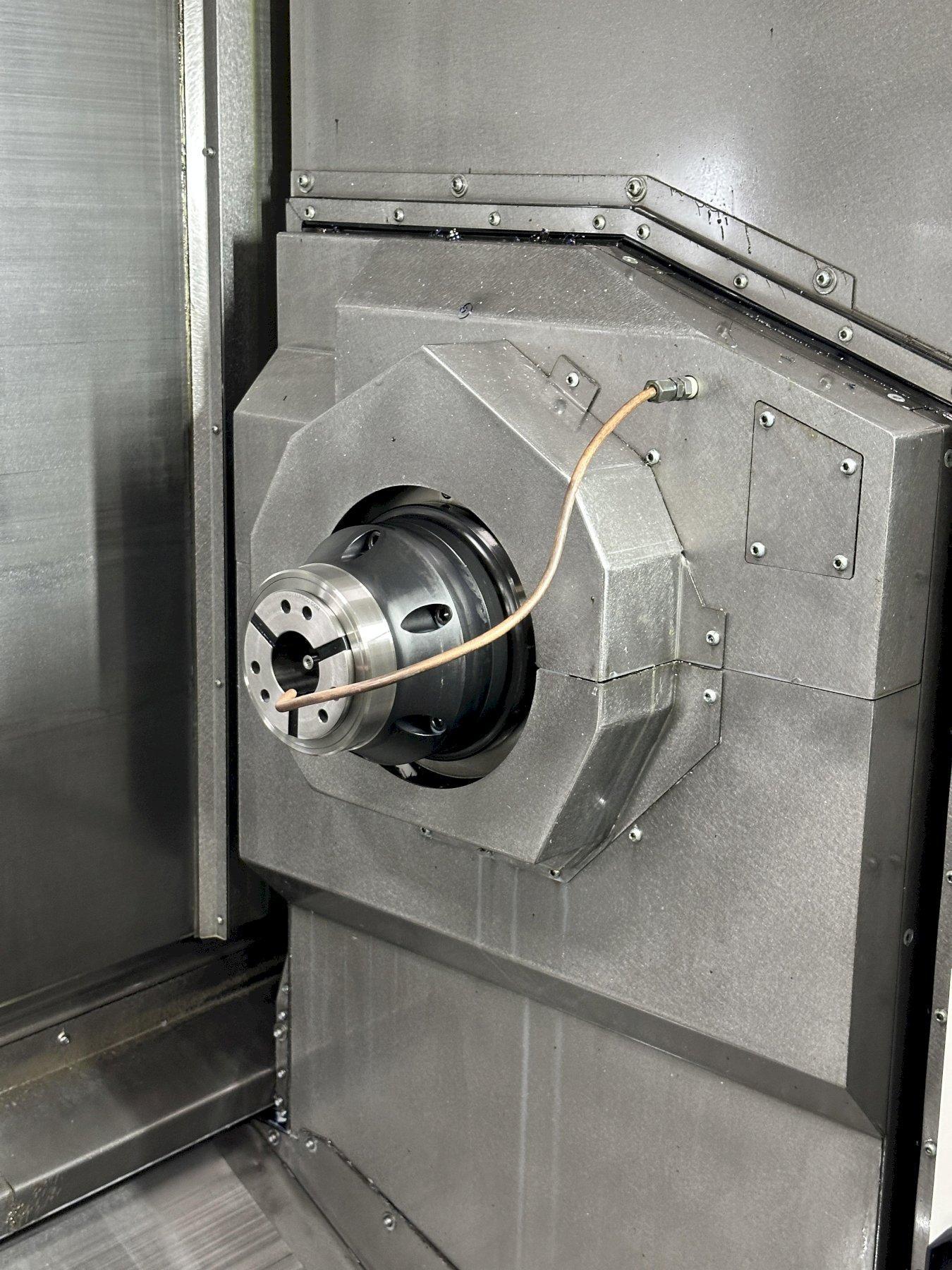

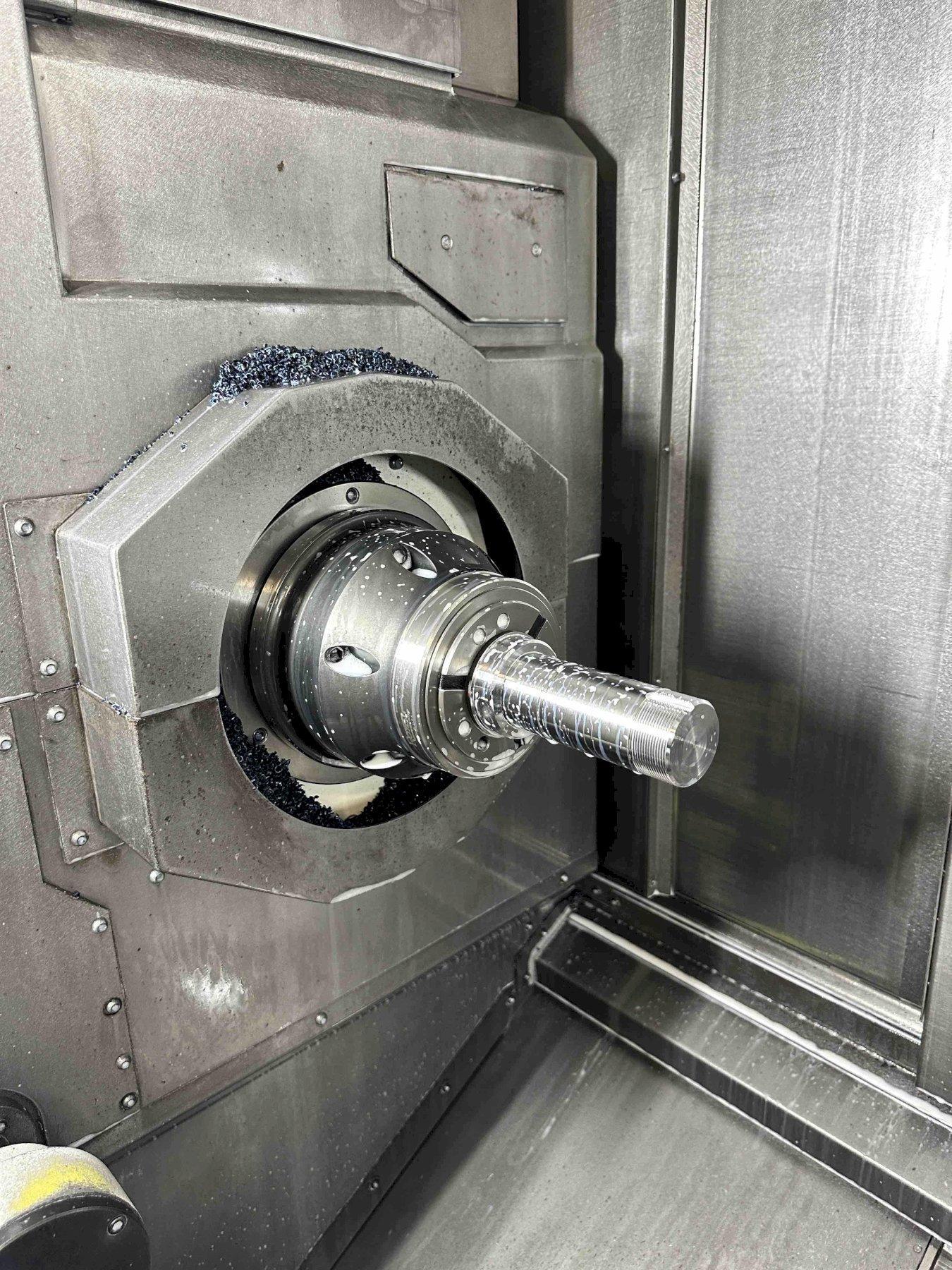

| Sub Spindle | yes | ||
| Sub Spindle Chuck | 8 inches | ||
| Sub Spindle Bar Capacity | 2.56 inches | ||
| Sub Spindle Nose | A2-6 | ||
| Sub Spindle Speed | 5,000 rpm | ||
| Sub Spindle Motor (HP) | 30 hp | ||

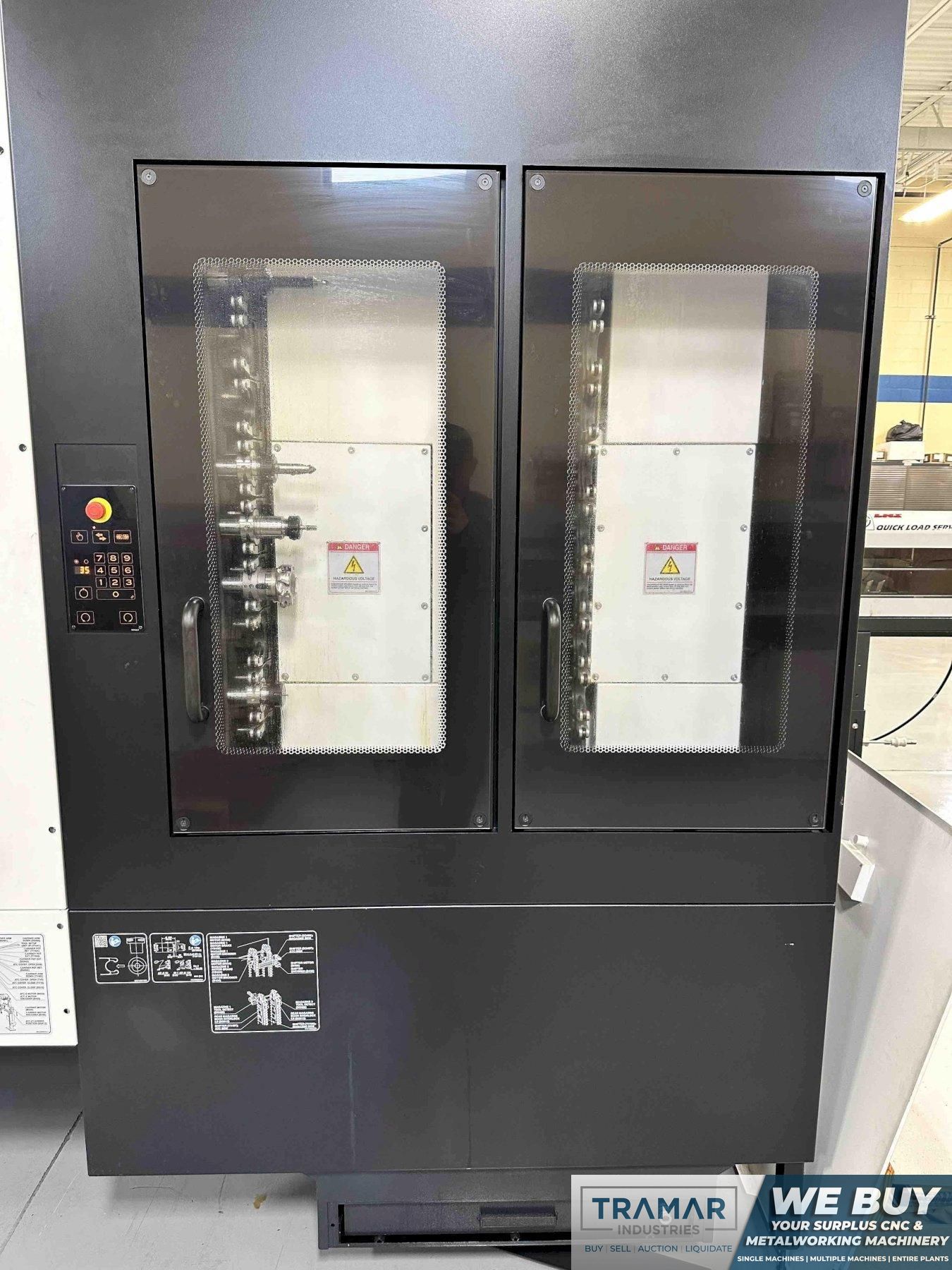

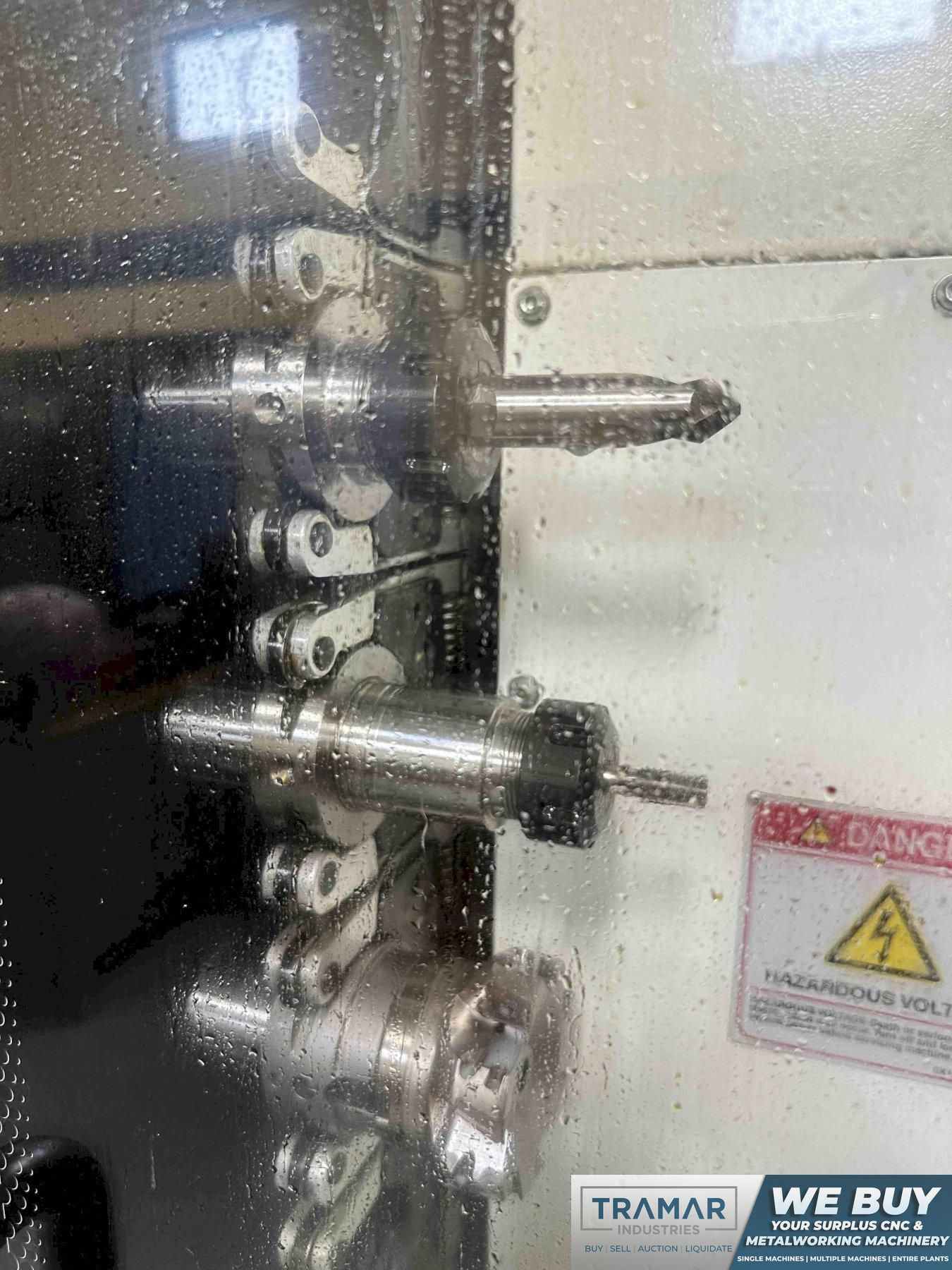

| Turret Capacity | 74 Station ATC | ||
| Machine Dimensions | 197" x 106" x 107" | ||
| Machine Weight | 36500 pounds | ||
|
Equipped With
- Mazatrol Smooth AI - Touchscreen

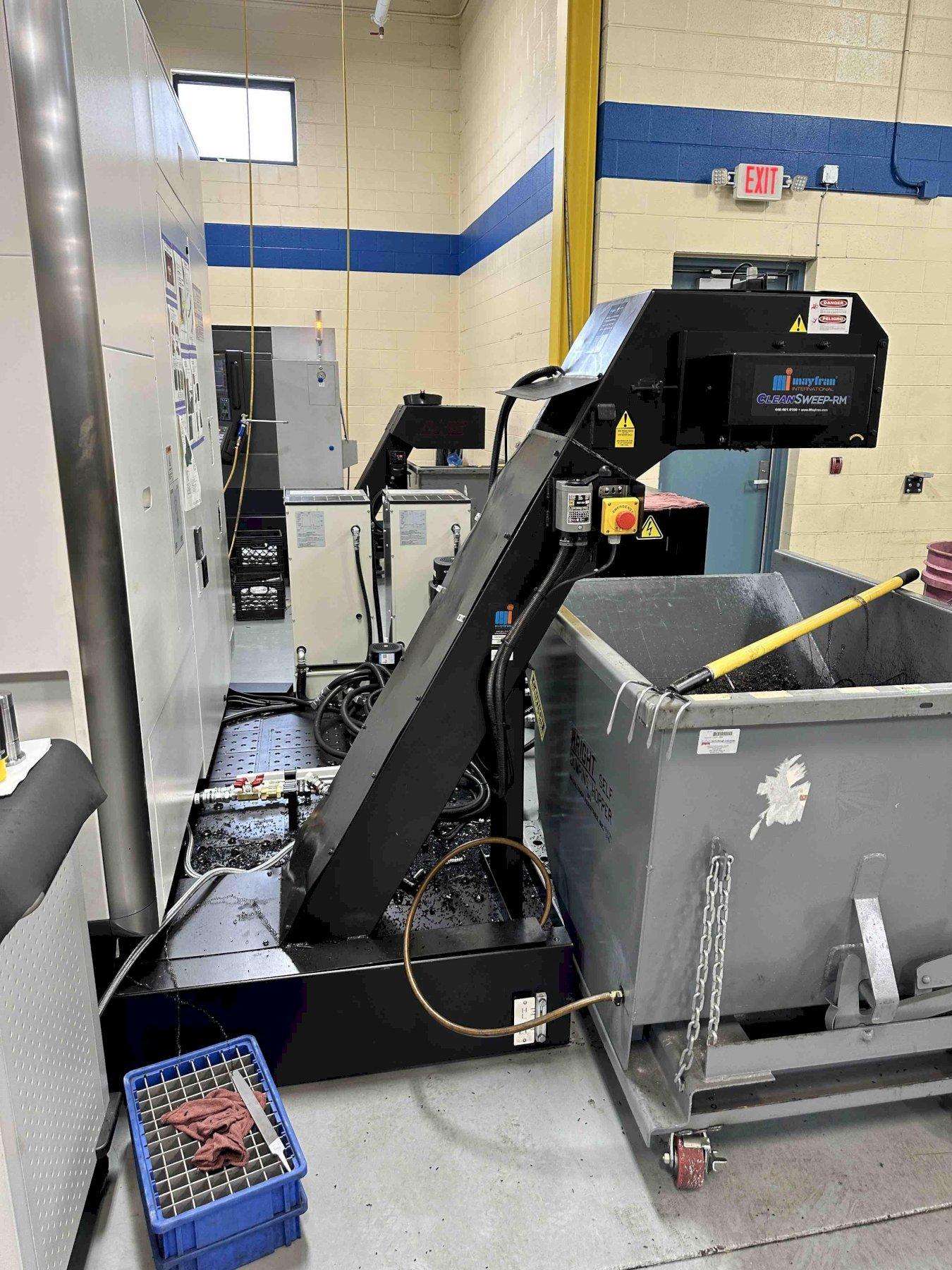

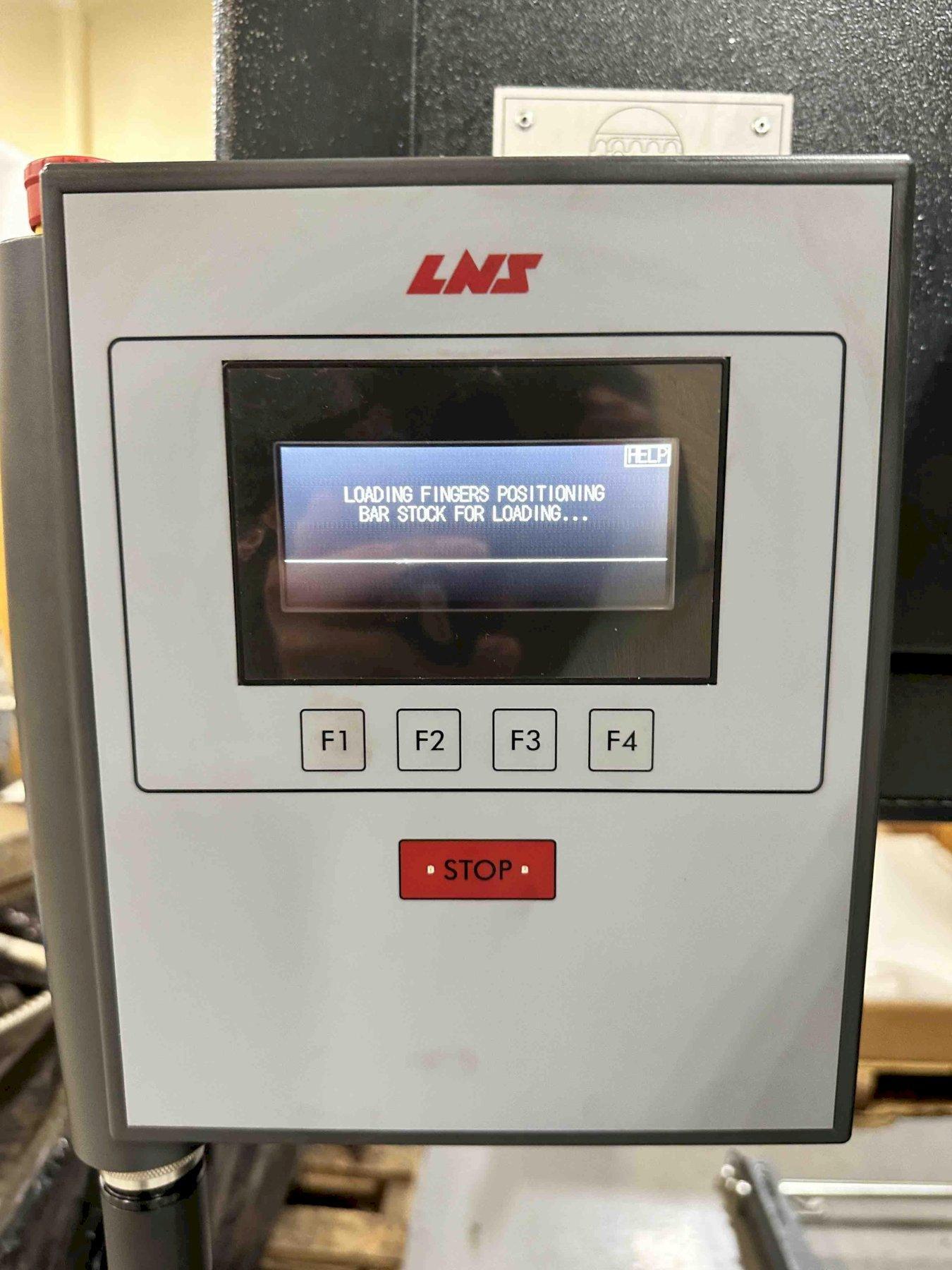

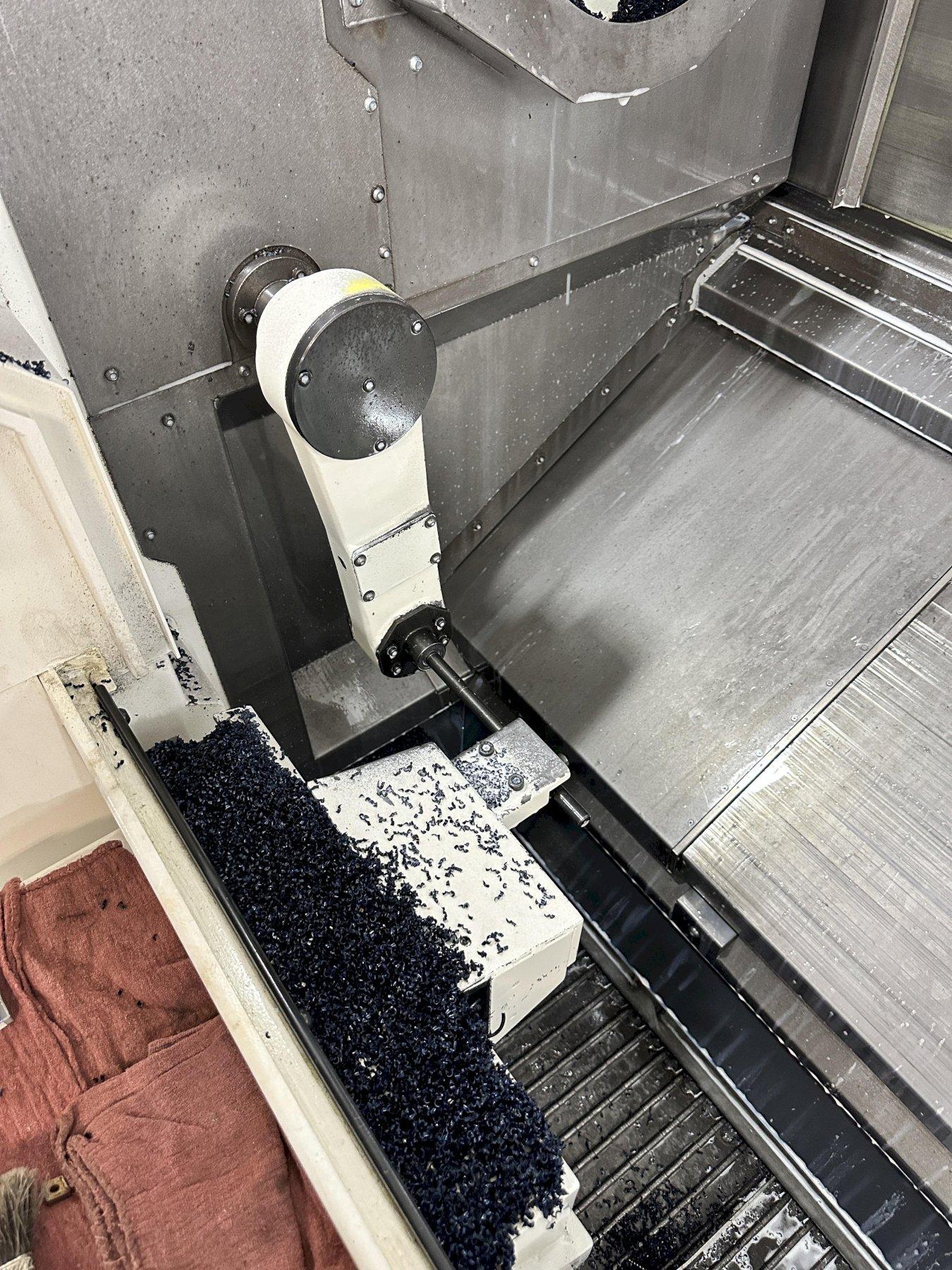

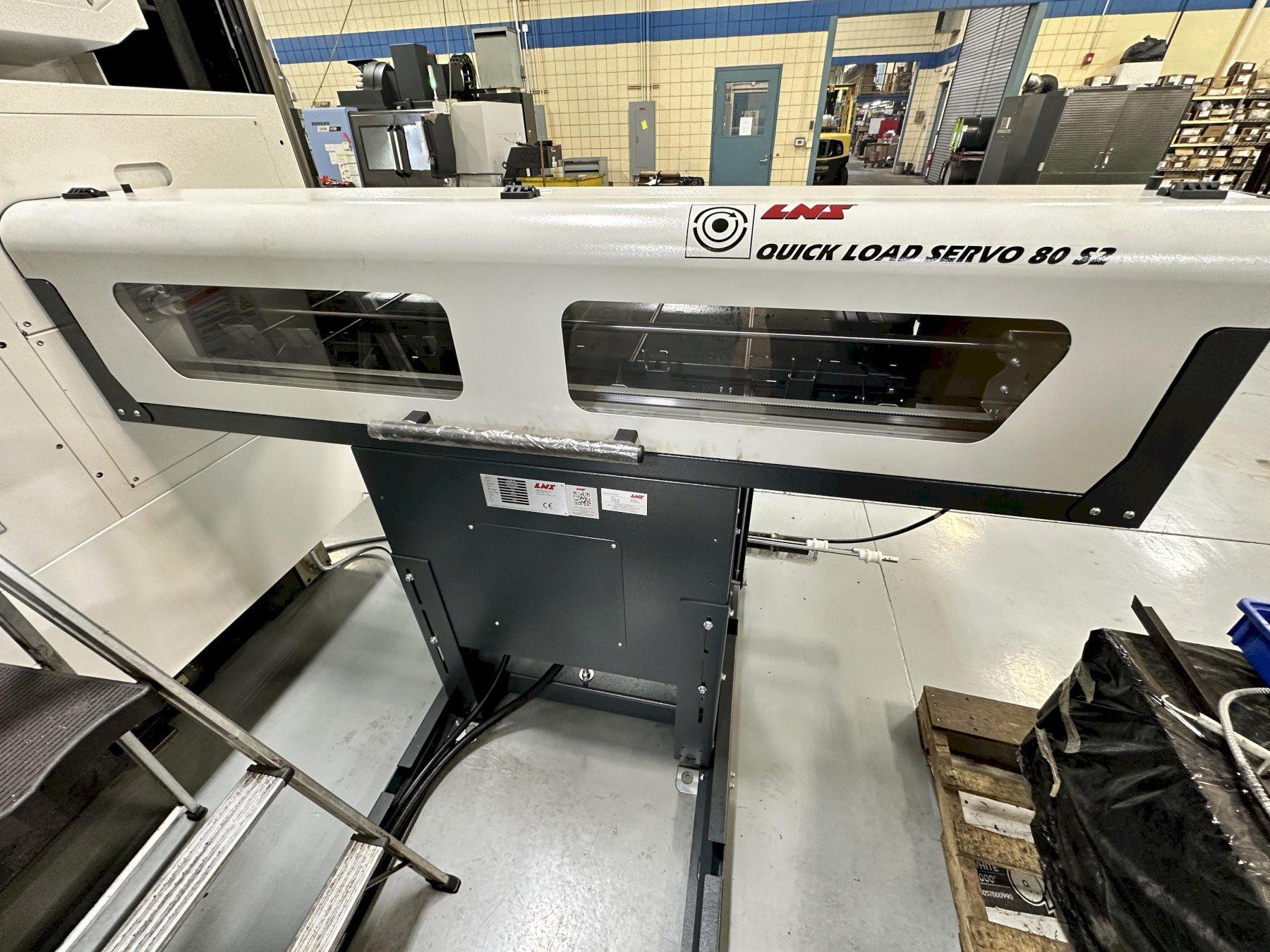

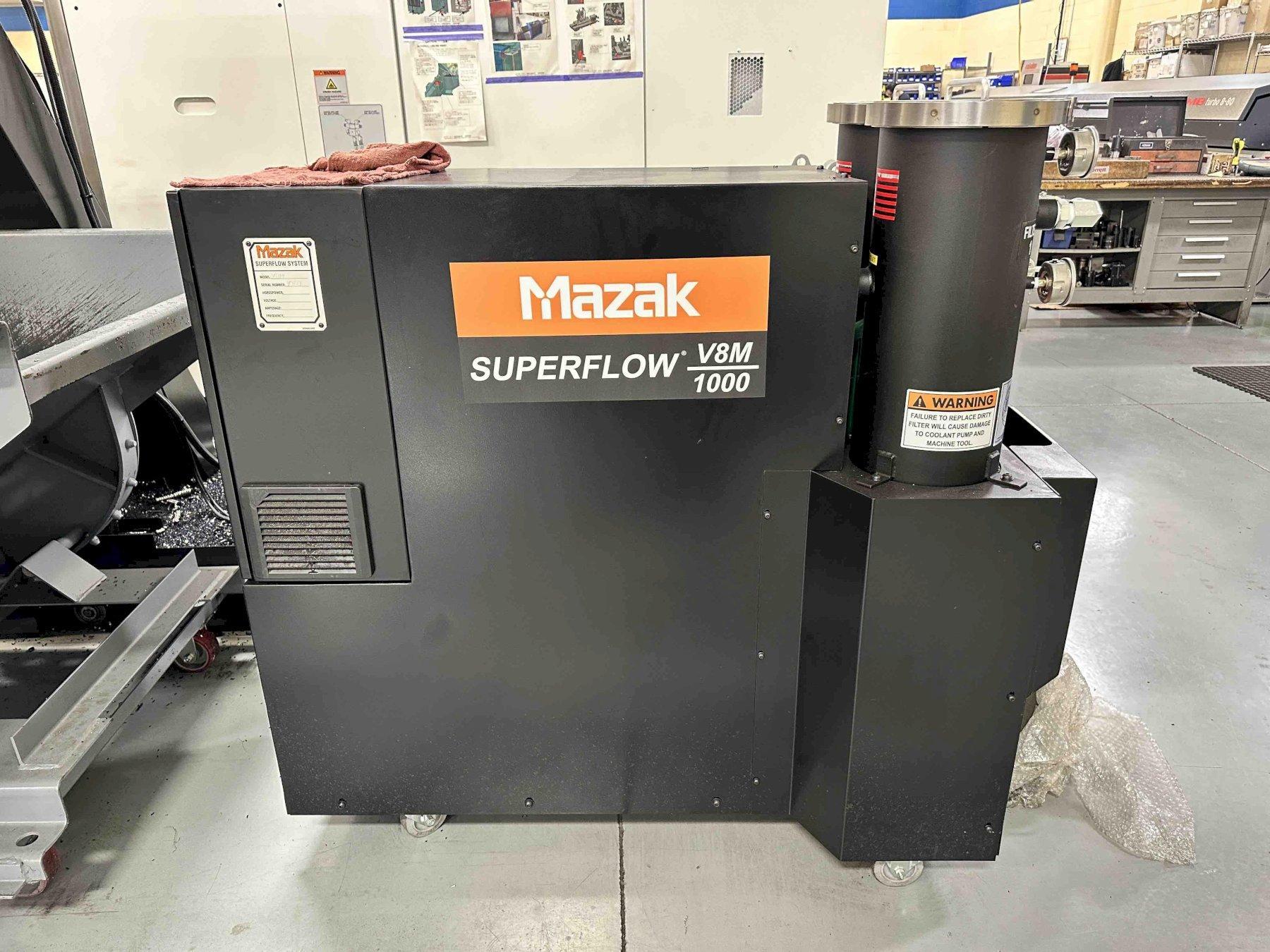

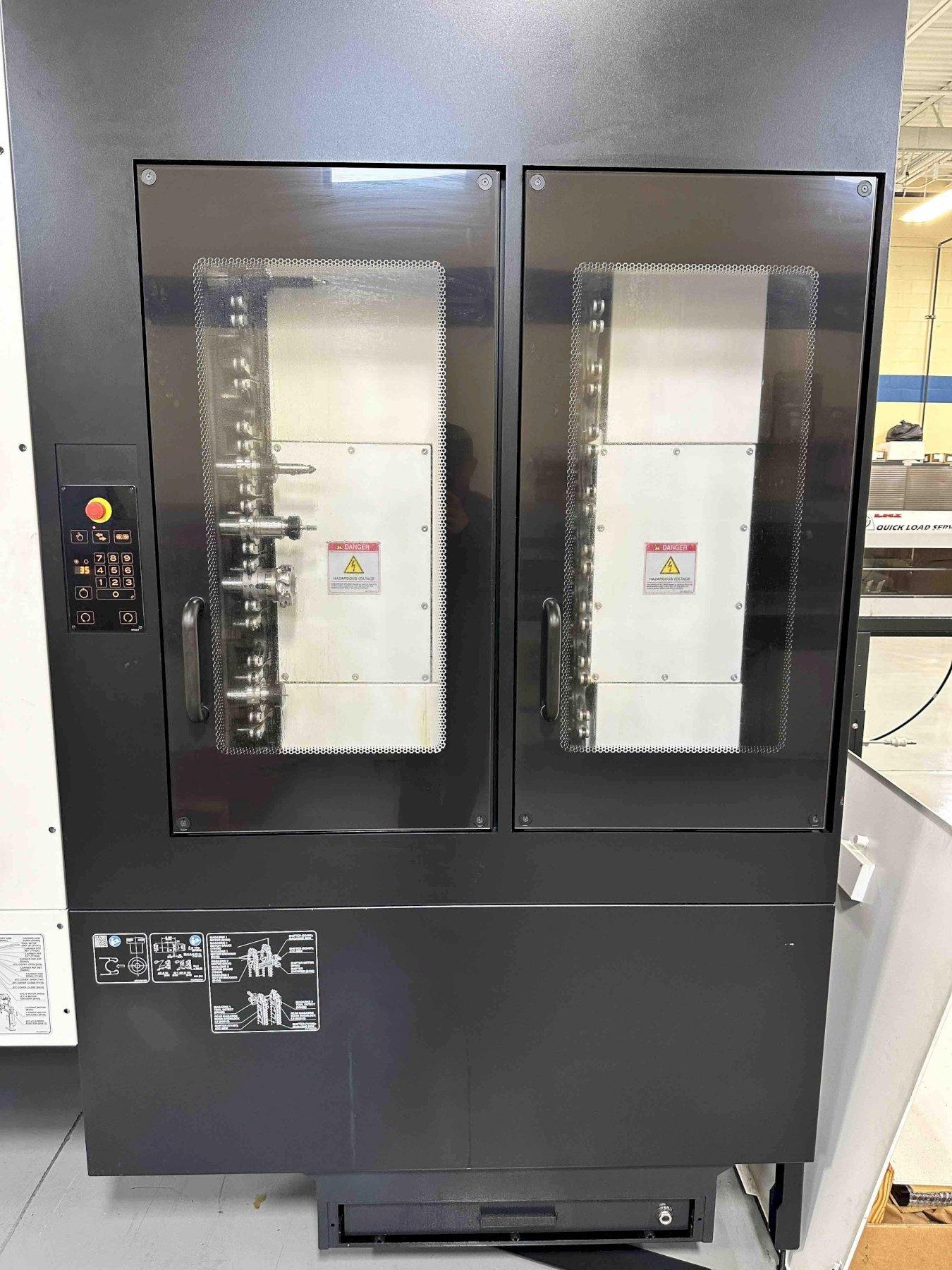

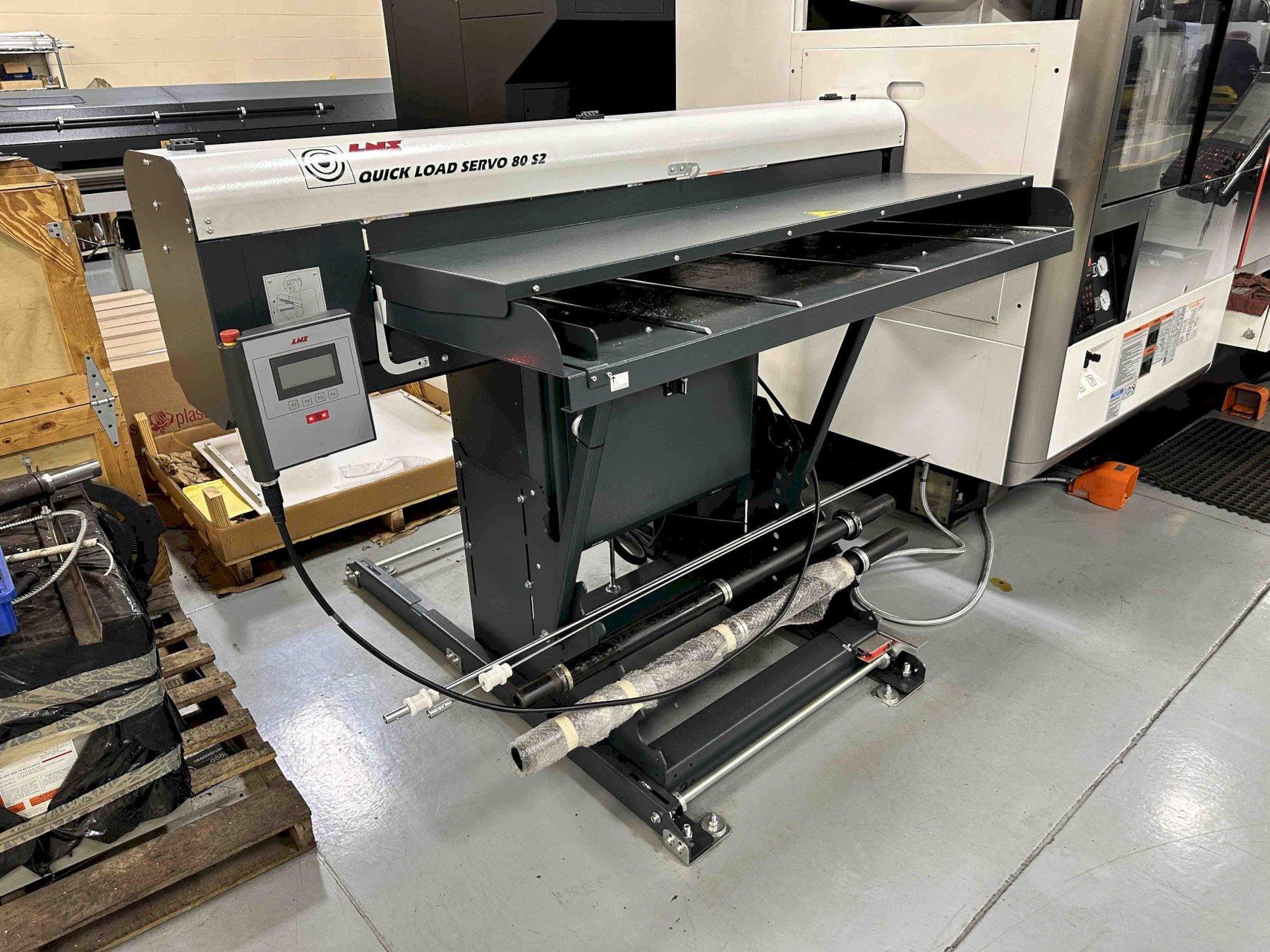

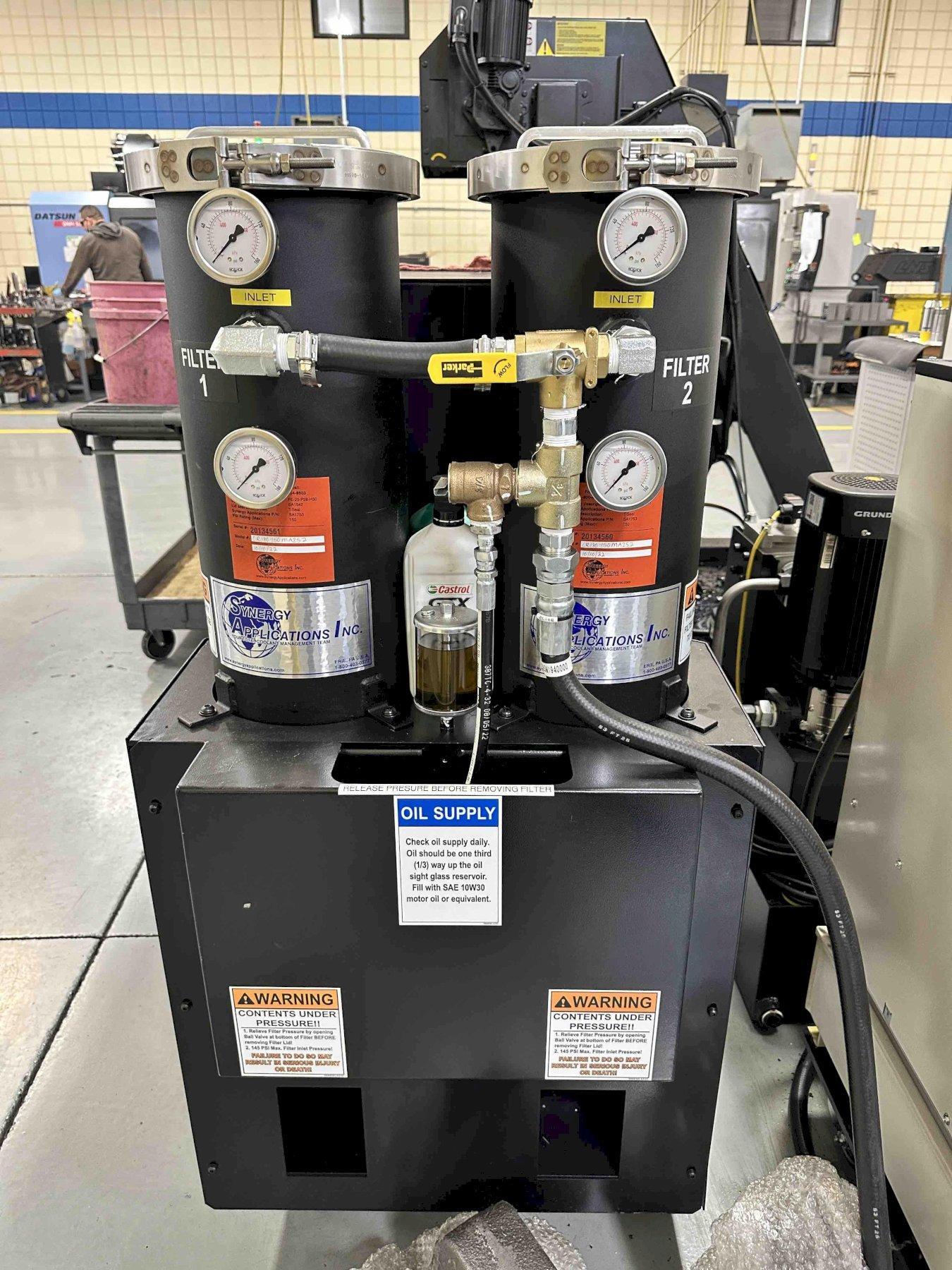

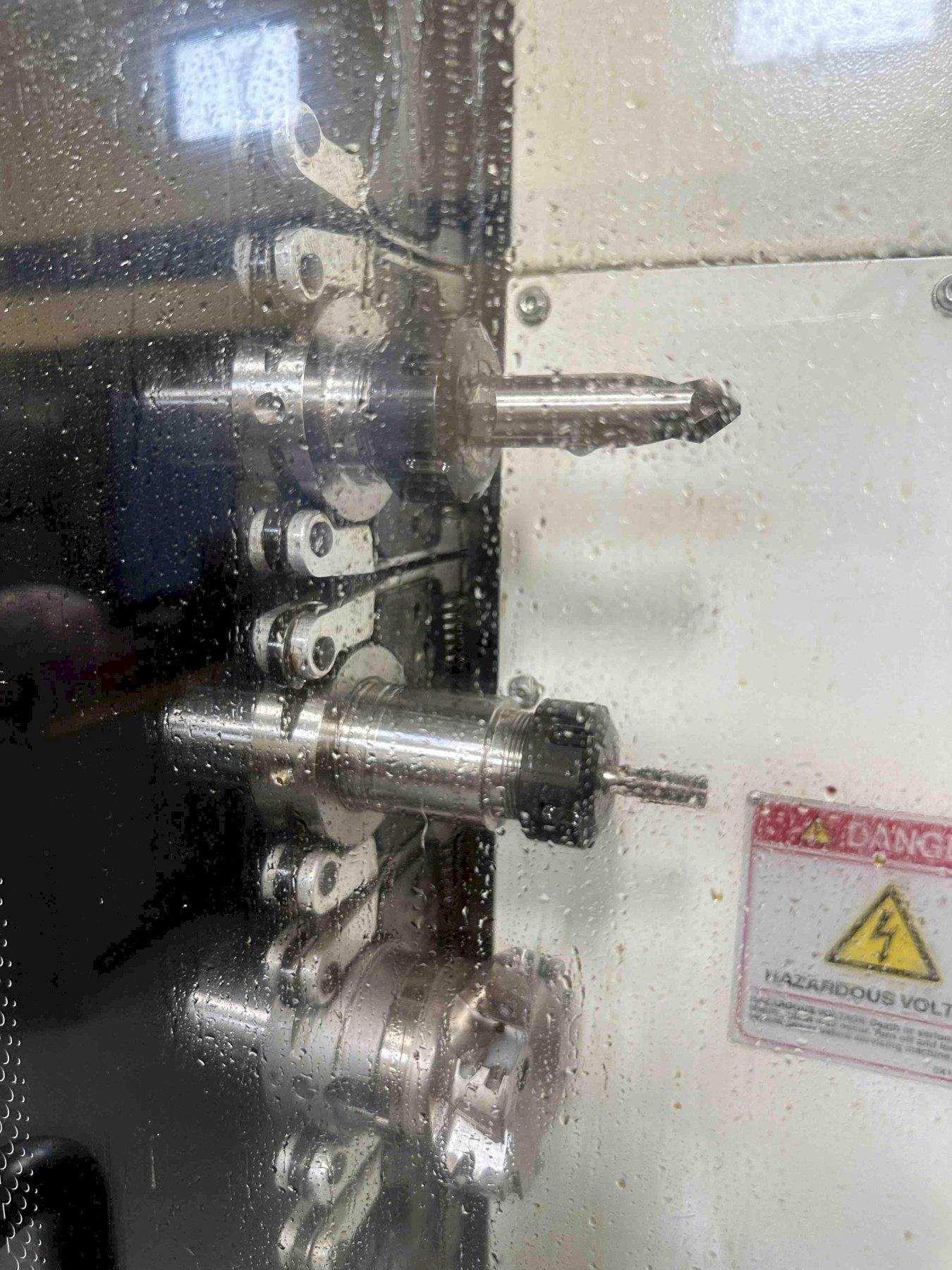

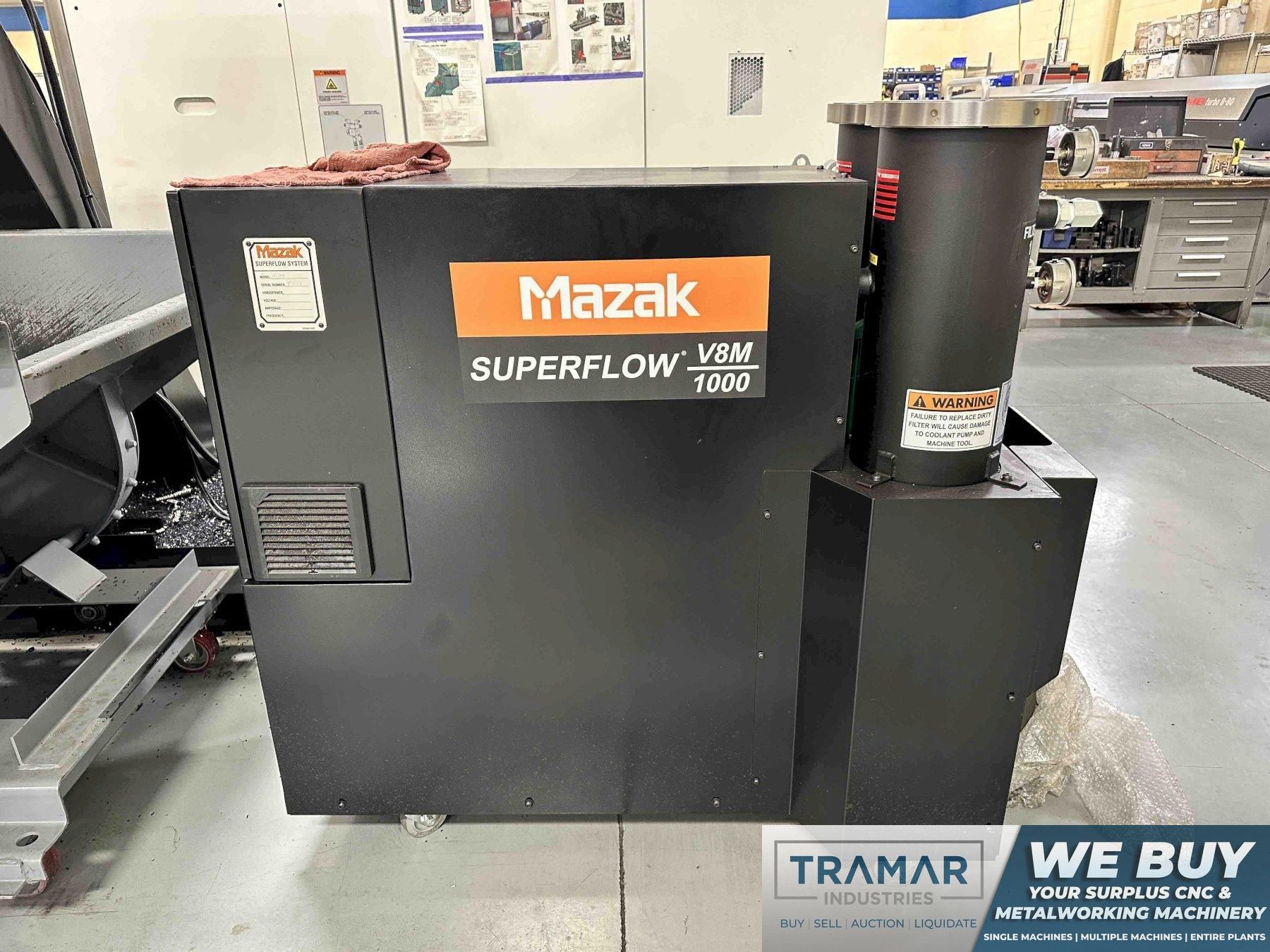

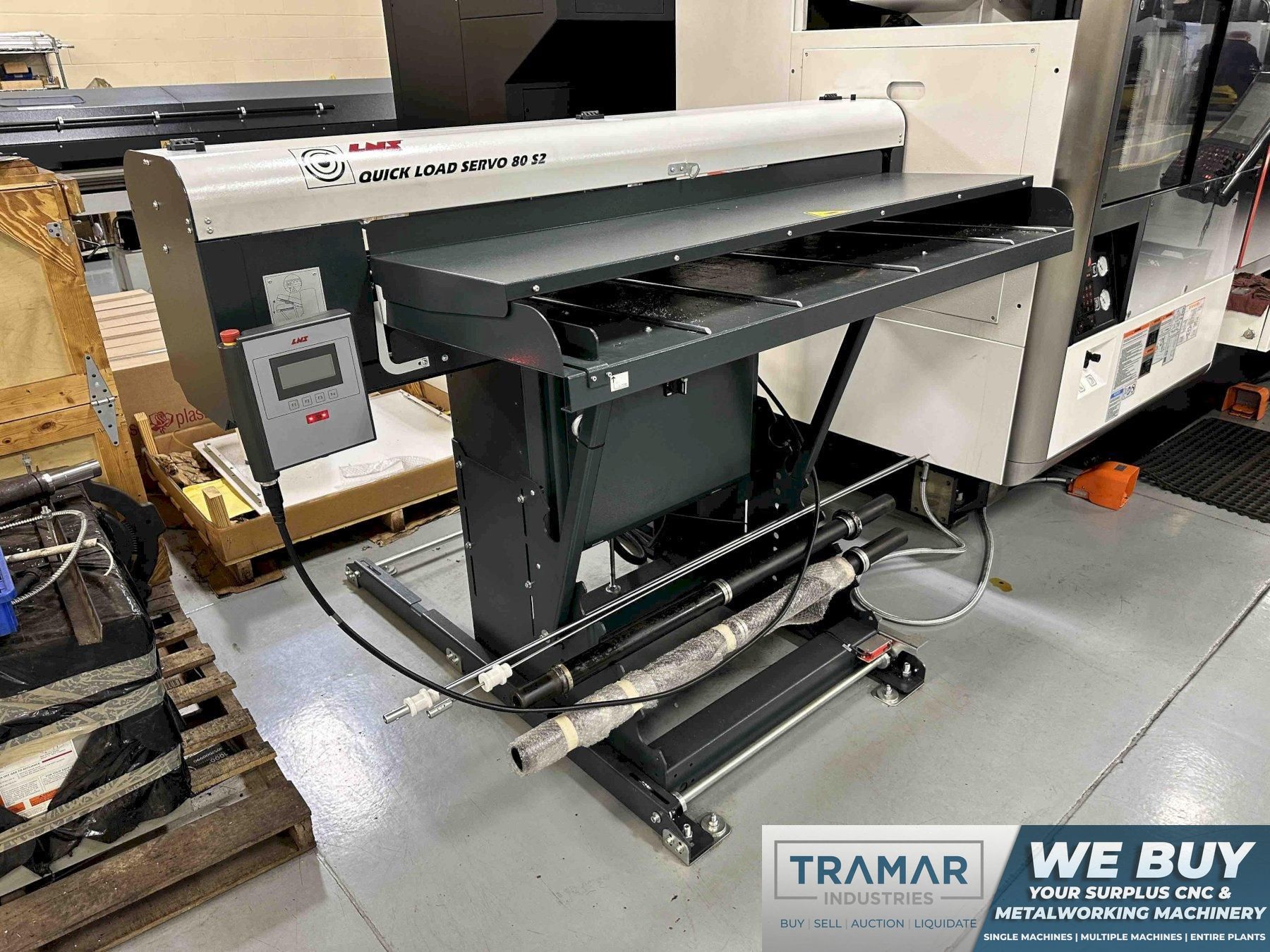

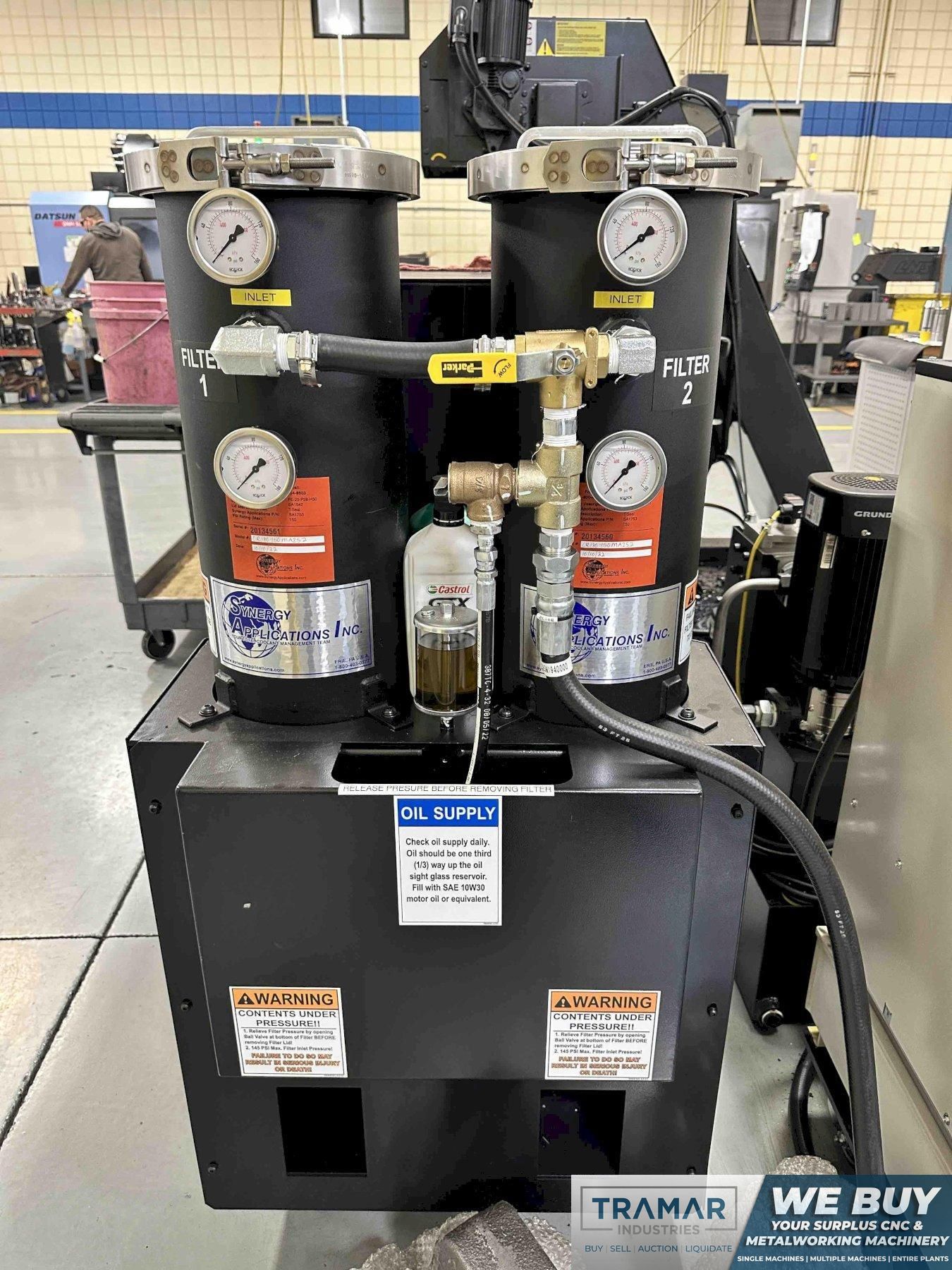

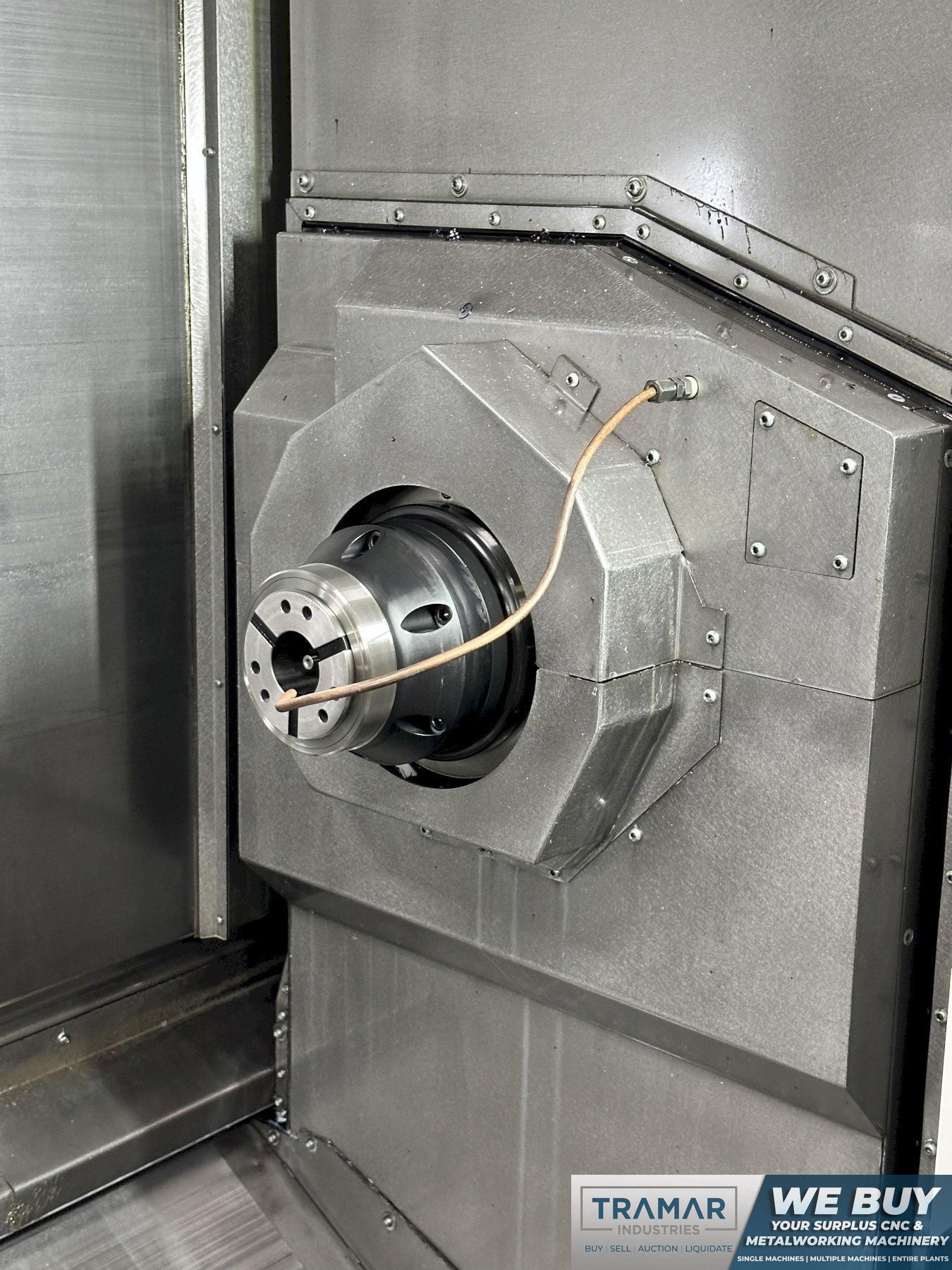

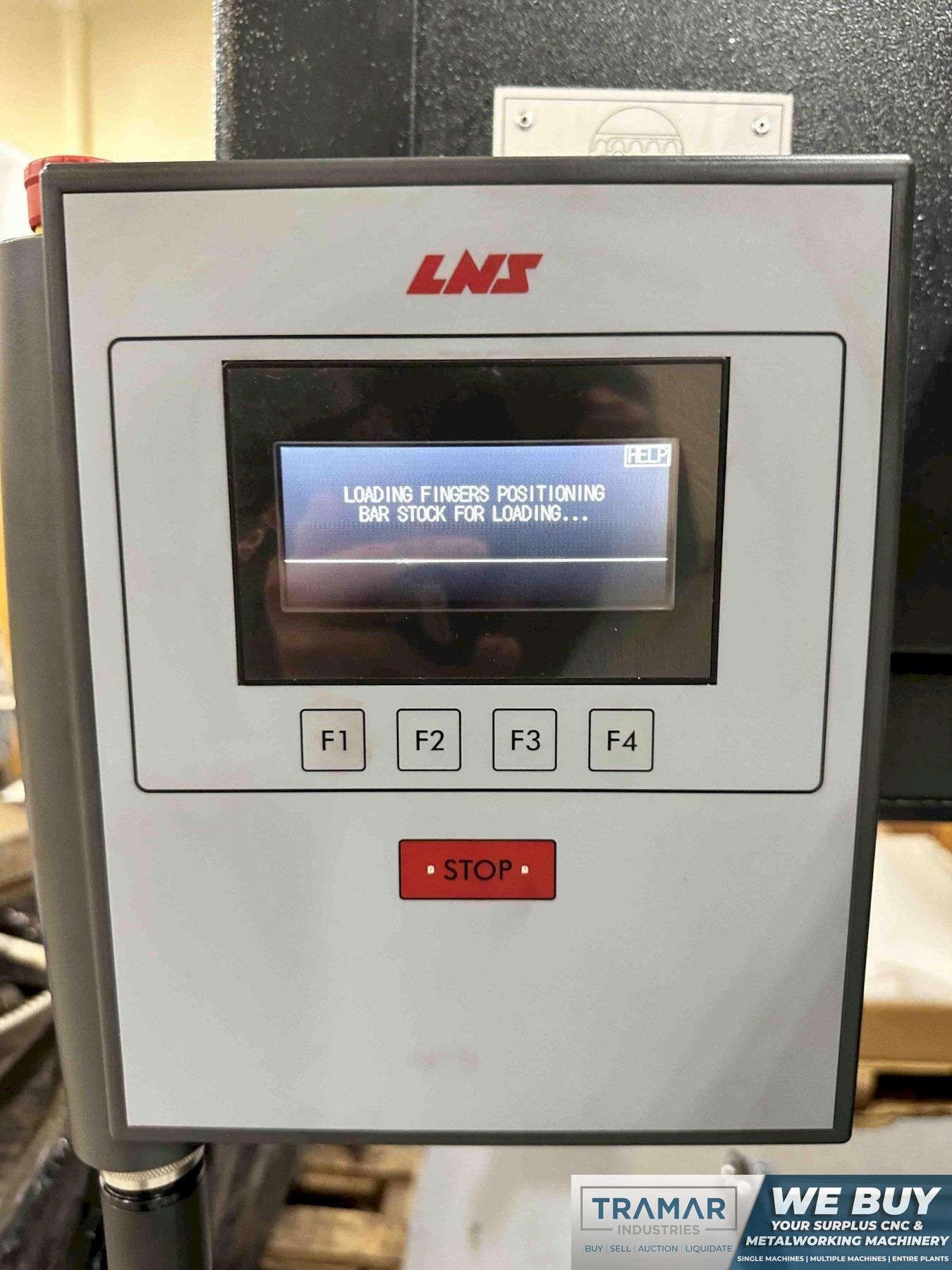

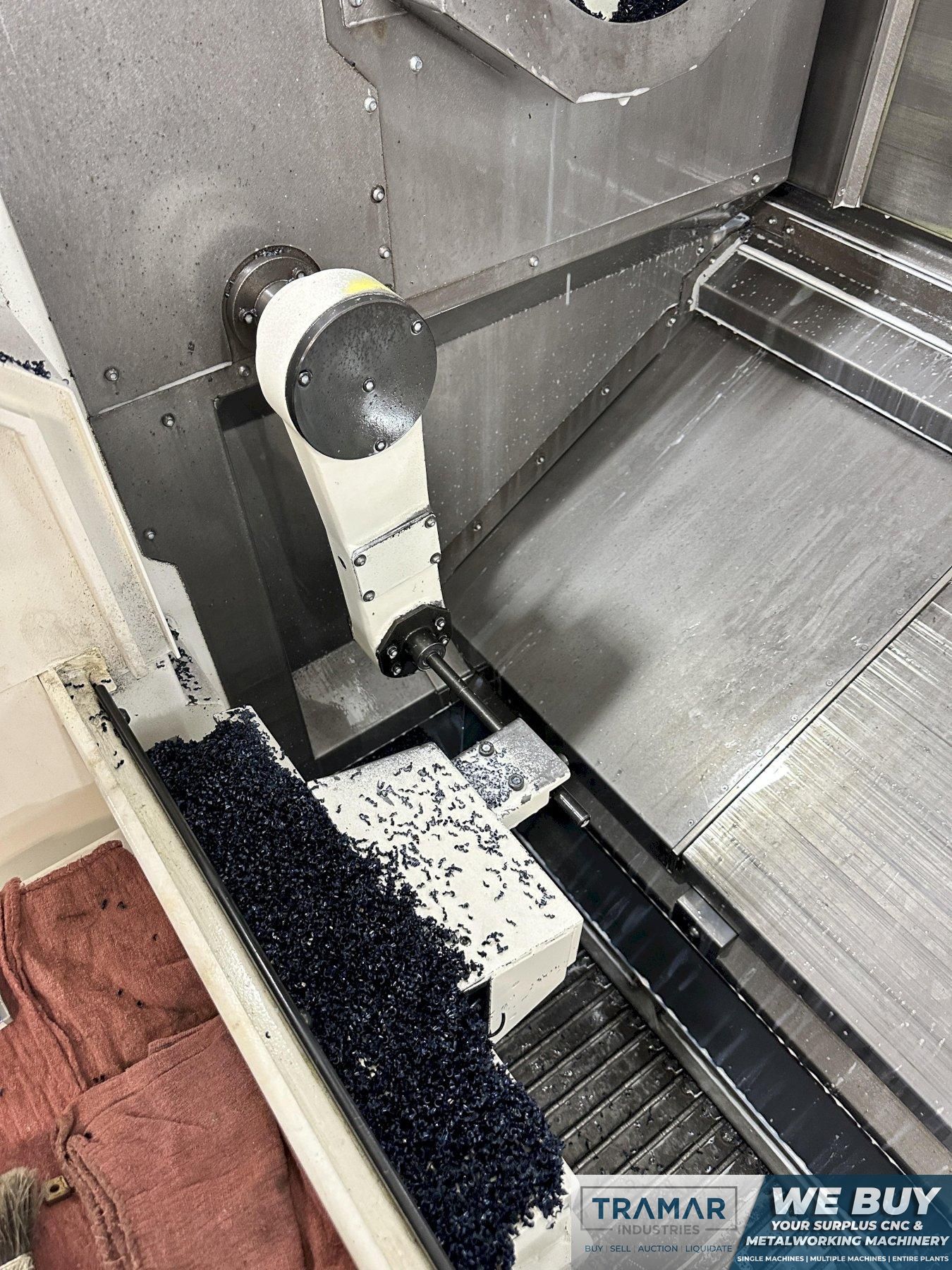

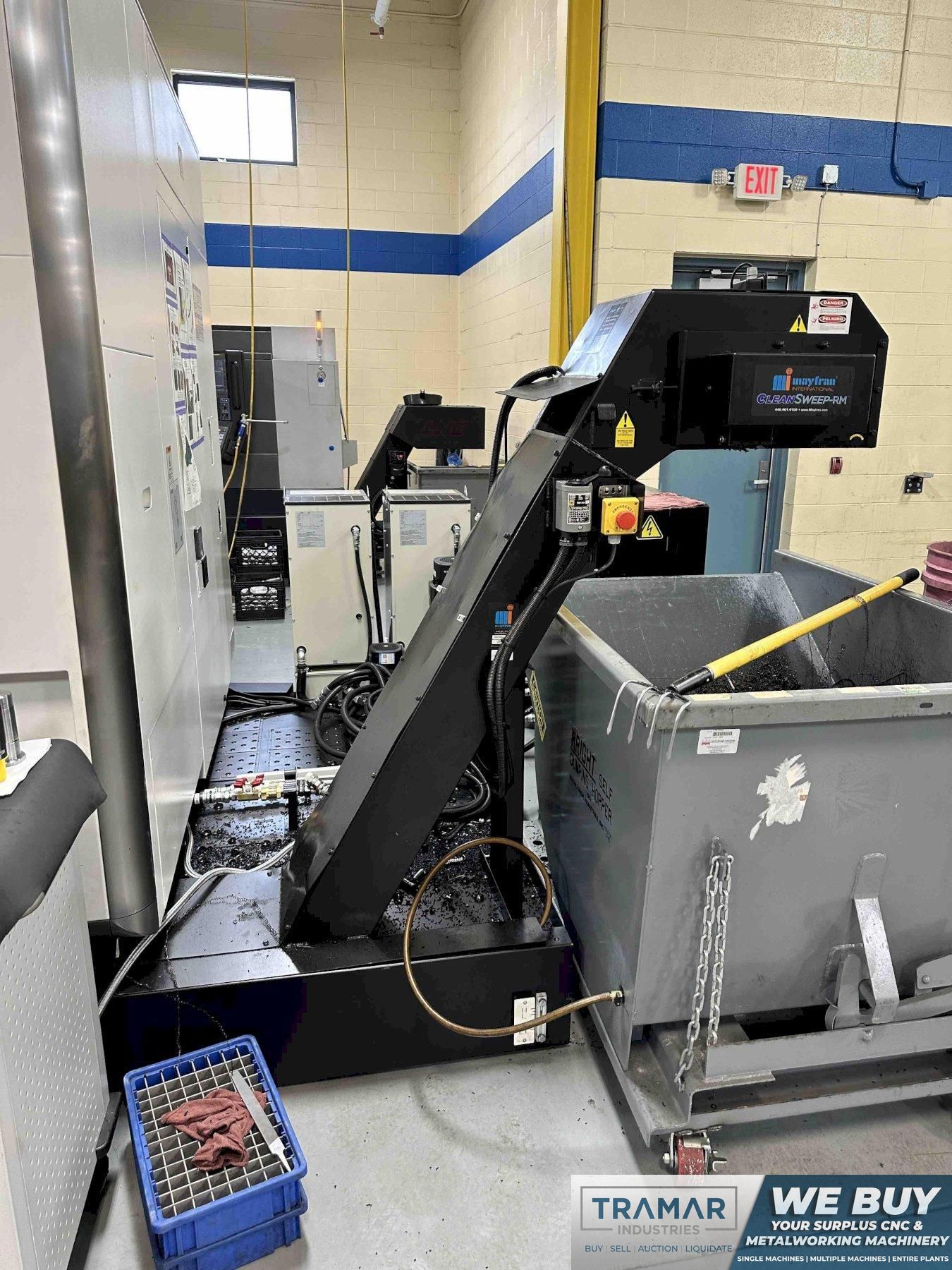

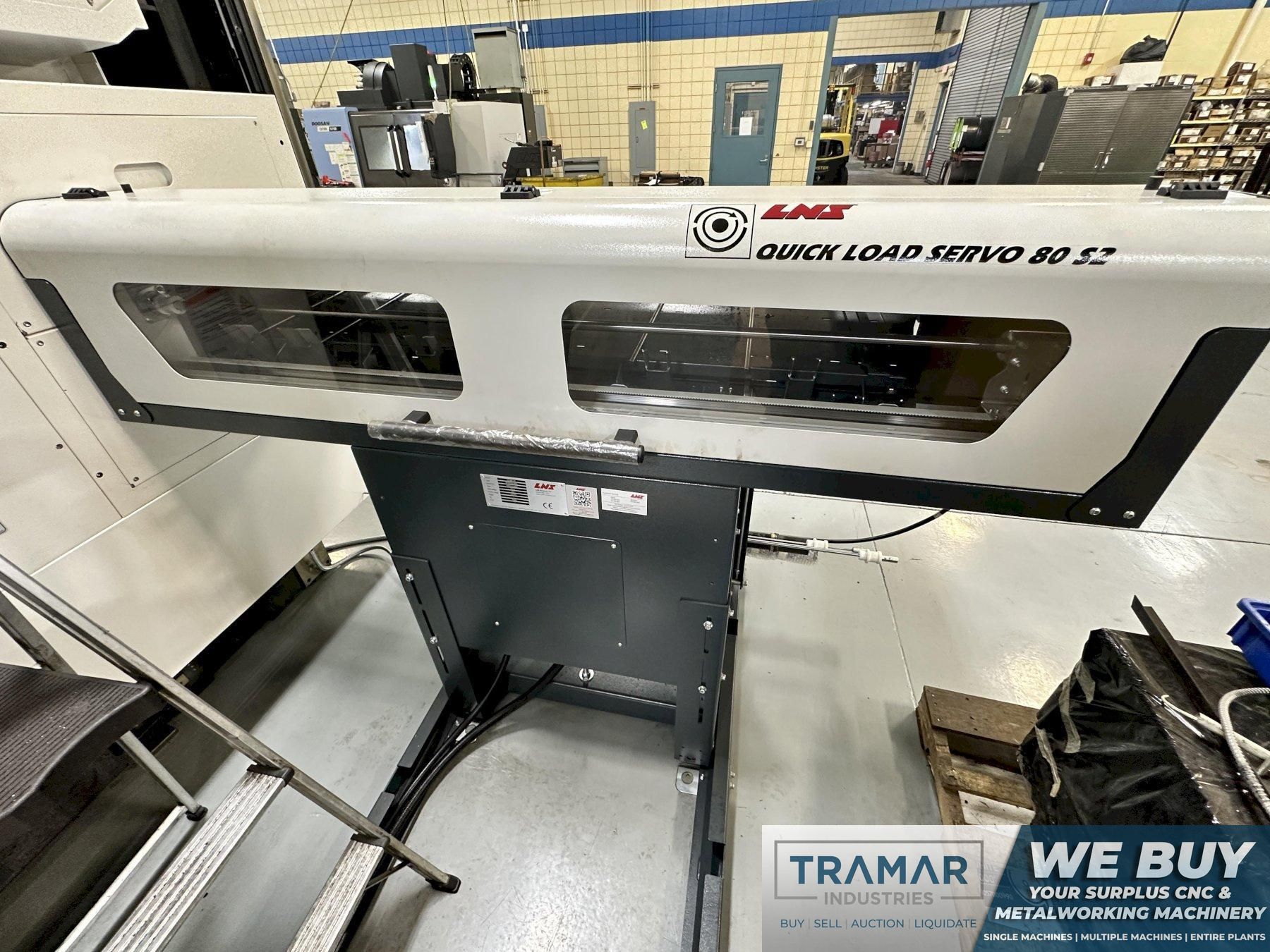

- Mayfran Chip Conveyor - Coolant Tank & Pump - Automatic Part Catcher w/Ejector - Mazak Super Flow V8M/1000 Variable High Pressure Coolant Unit - 1,000 psi - High Pressure Coolant Thru - Renishaw Probing (RMP60) - Bar Feeder Interface - LNS Quick Load Servo 80 S2 Bar Feeder - Robot Interface - CAPTO C6 Milling Spindle Taper - 74 Station Automatic Tool Changer - Royal QG-65 Q/C Collet Chucks on Main & Sub Spindle - Automatic Front Door Open/Close ** 1,195 Cutting Hours as of 1/23/24 ** |
|||
