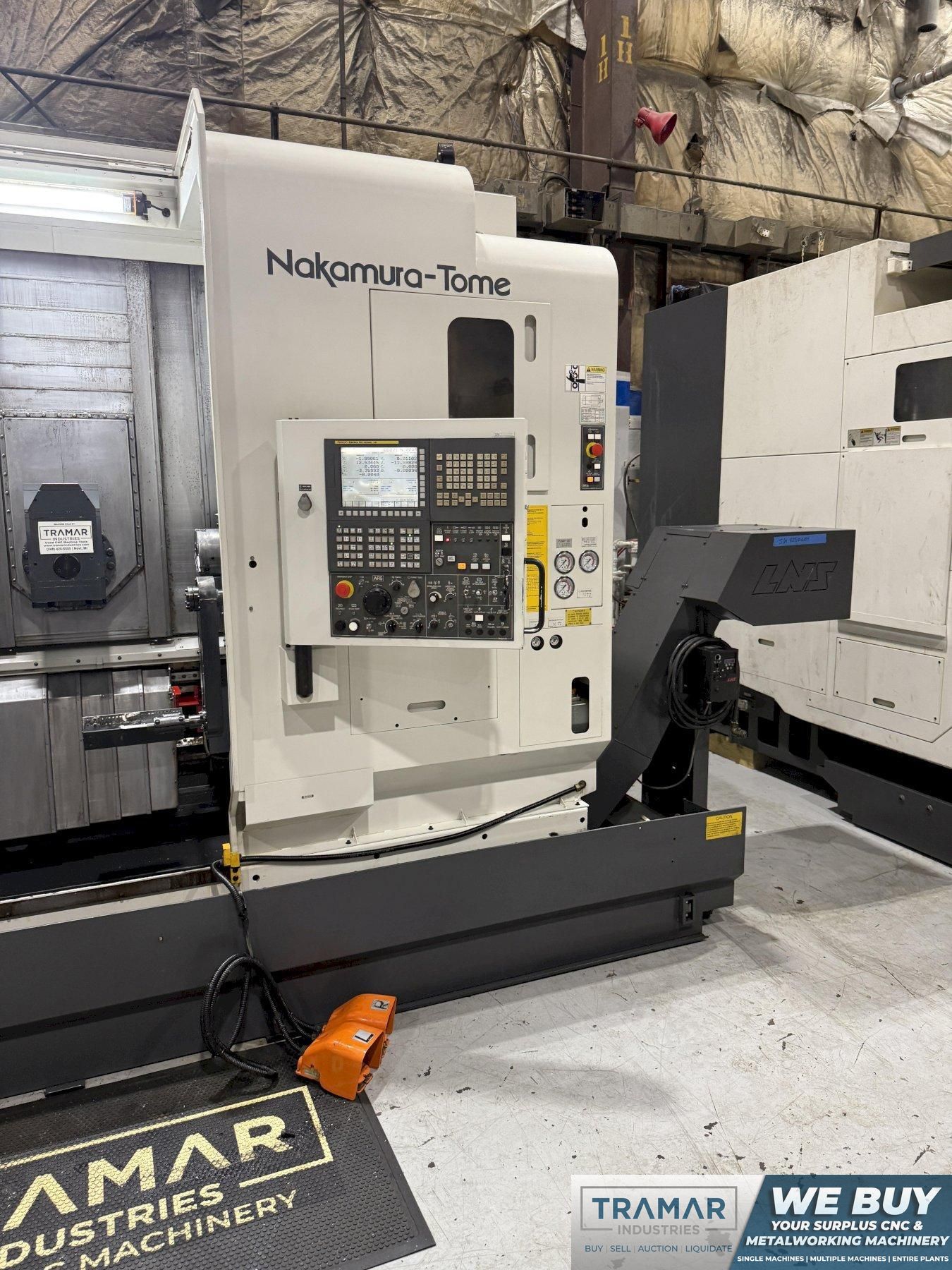

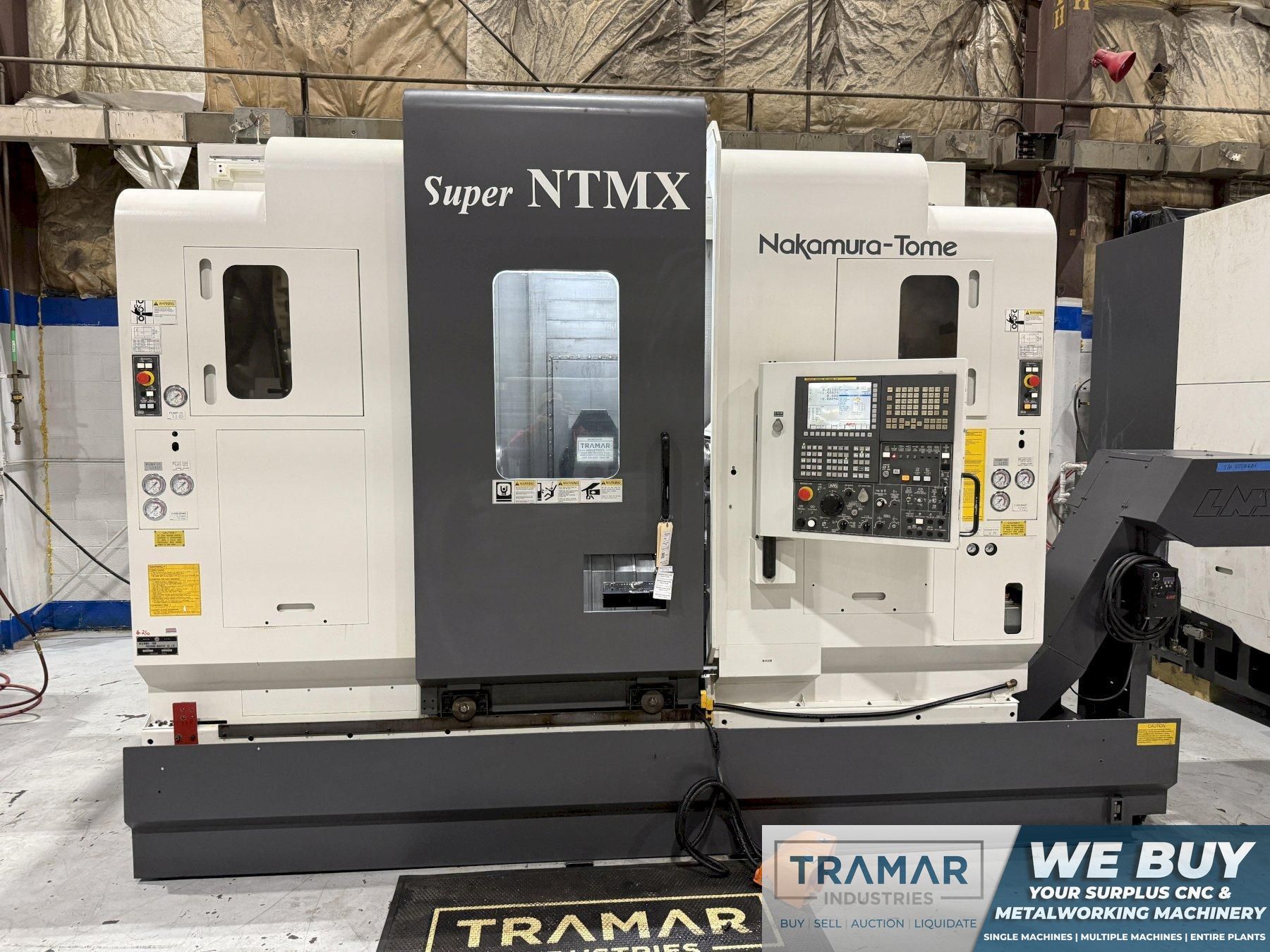

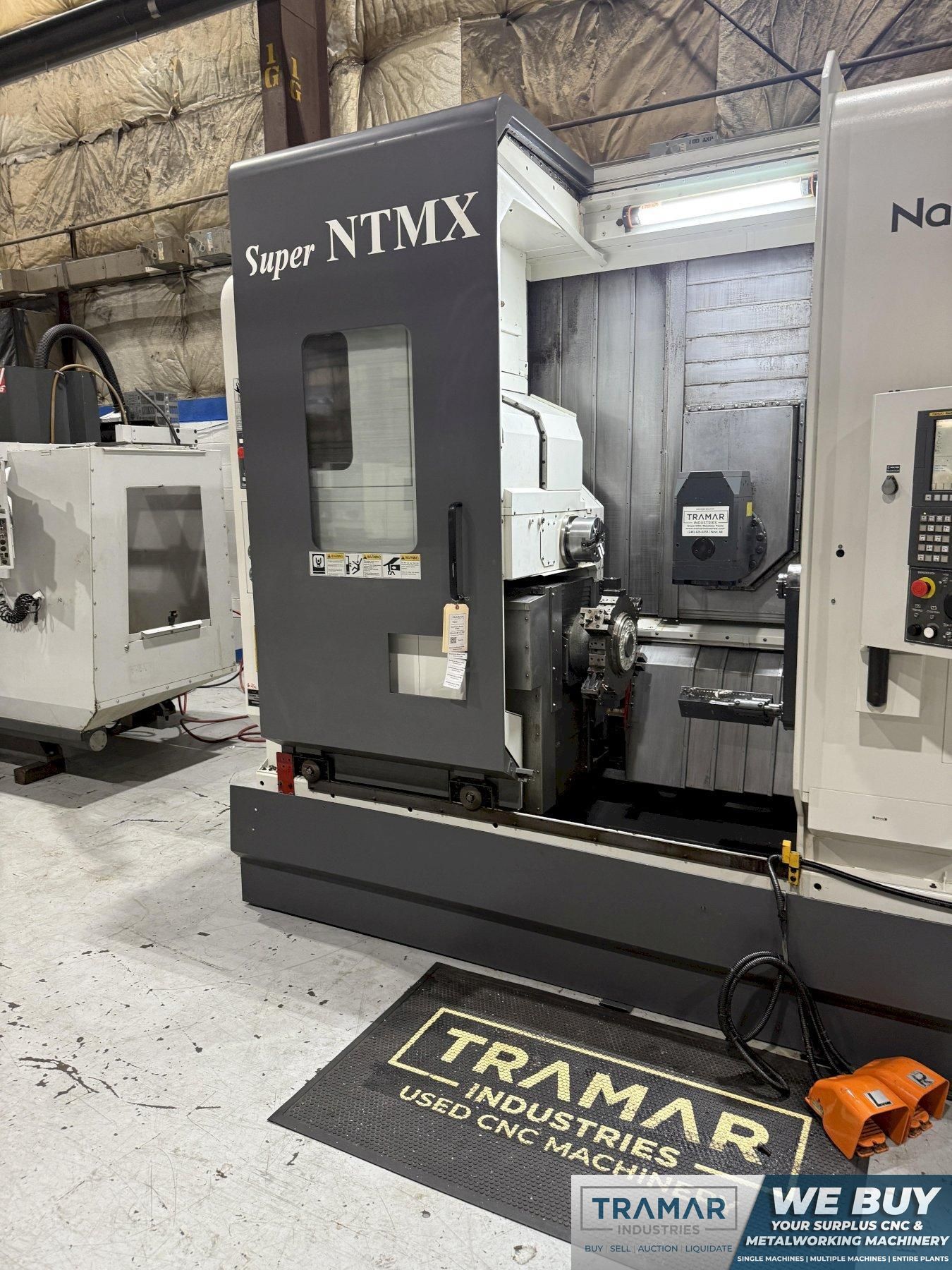

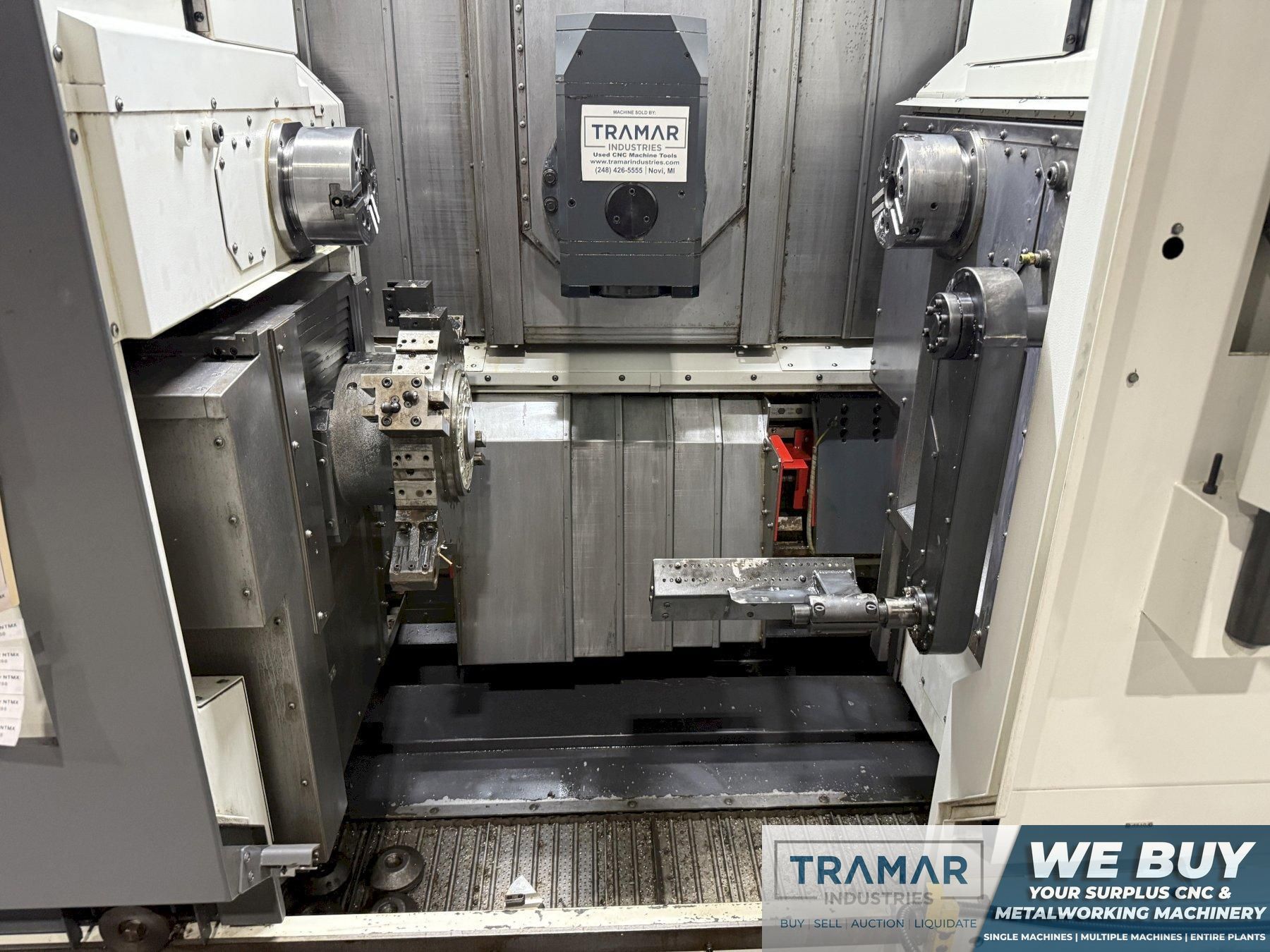

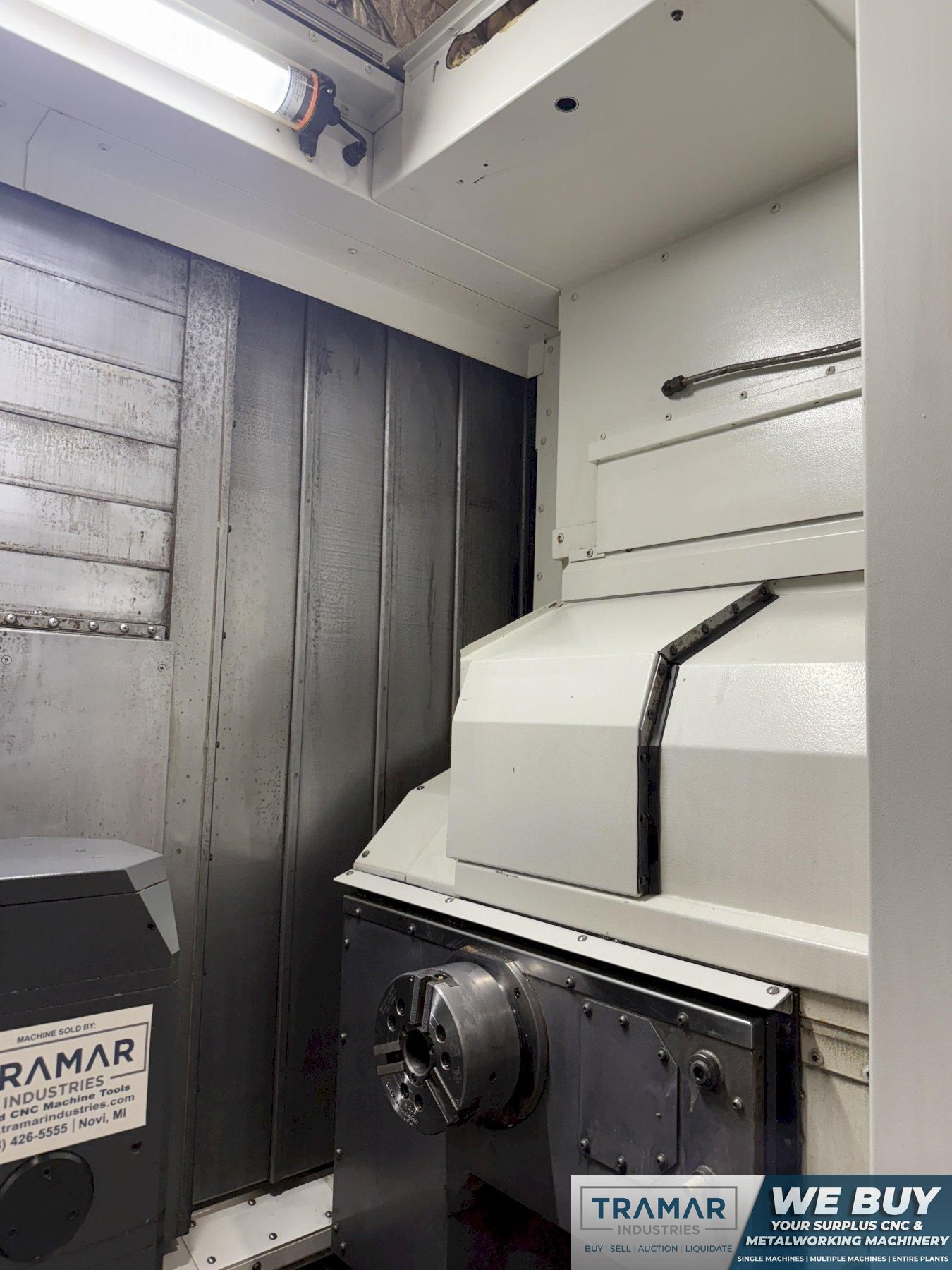

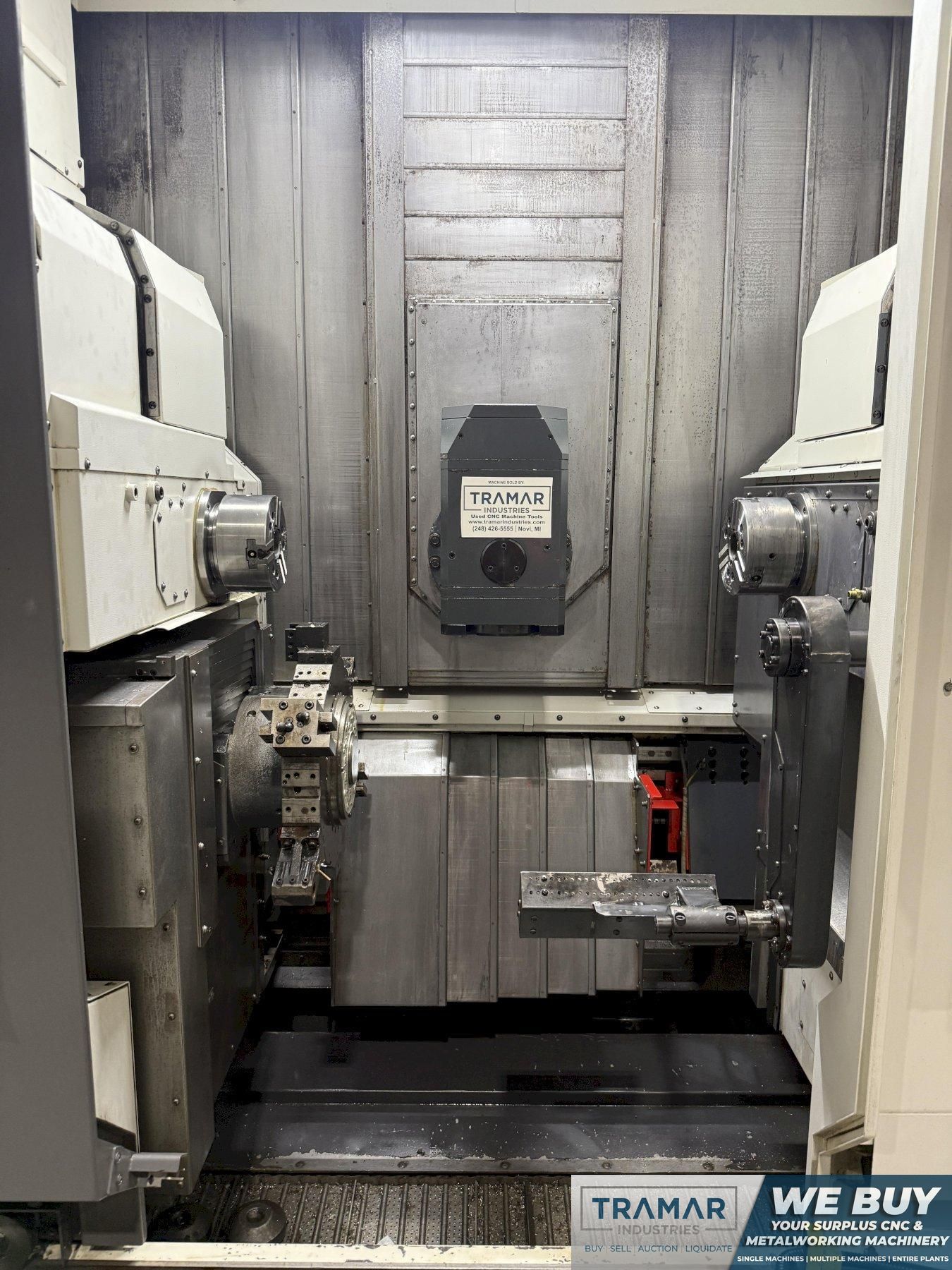

Used 2011 Nakamura Tome Super NTMX Multi-Tasking CNC Lathe For Sale
Make: NAKAMURA-TOME
Model: Super NTMX
Specifications |
|||
|---|---|---|---|
| Year | 2011 | ||
| Type of CNC Control | Fanuc Series 31-Model A5 | ||
| CNC Control | yes | ||
| # Axis | 9 | ||
| Turning Diameter | 8.66 inches | ||
| Center Distance | 38.58 inches | ||

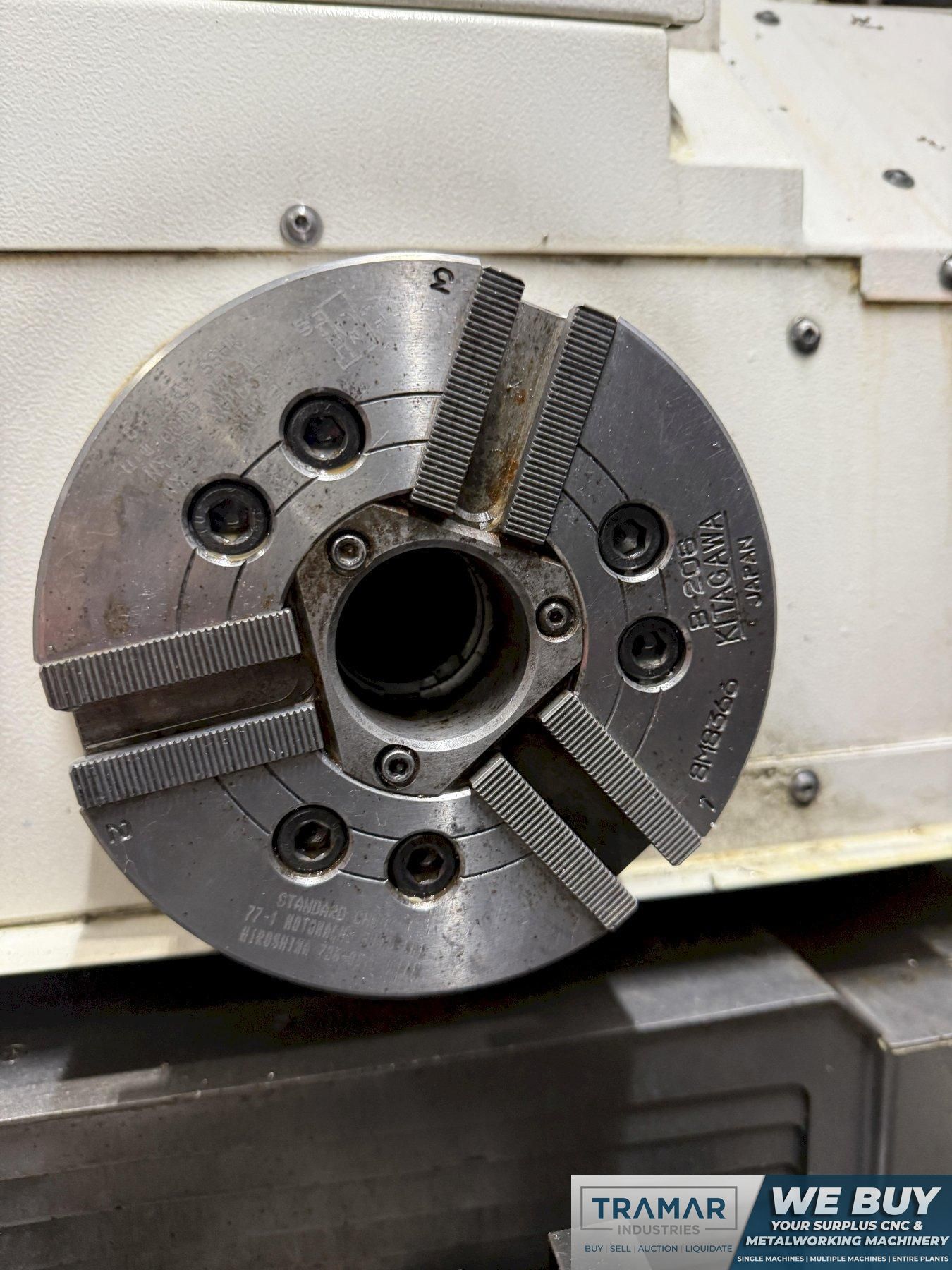

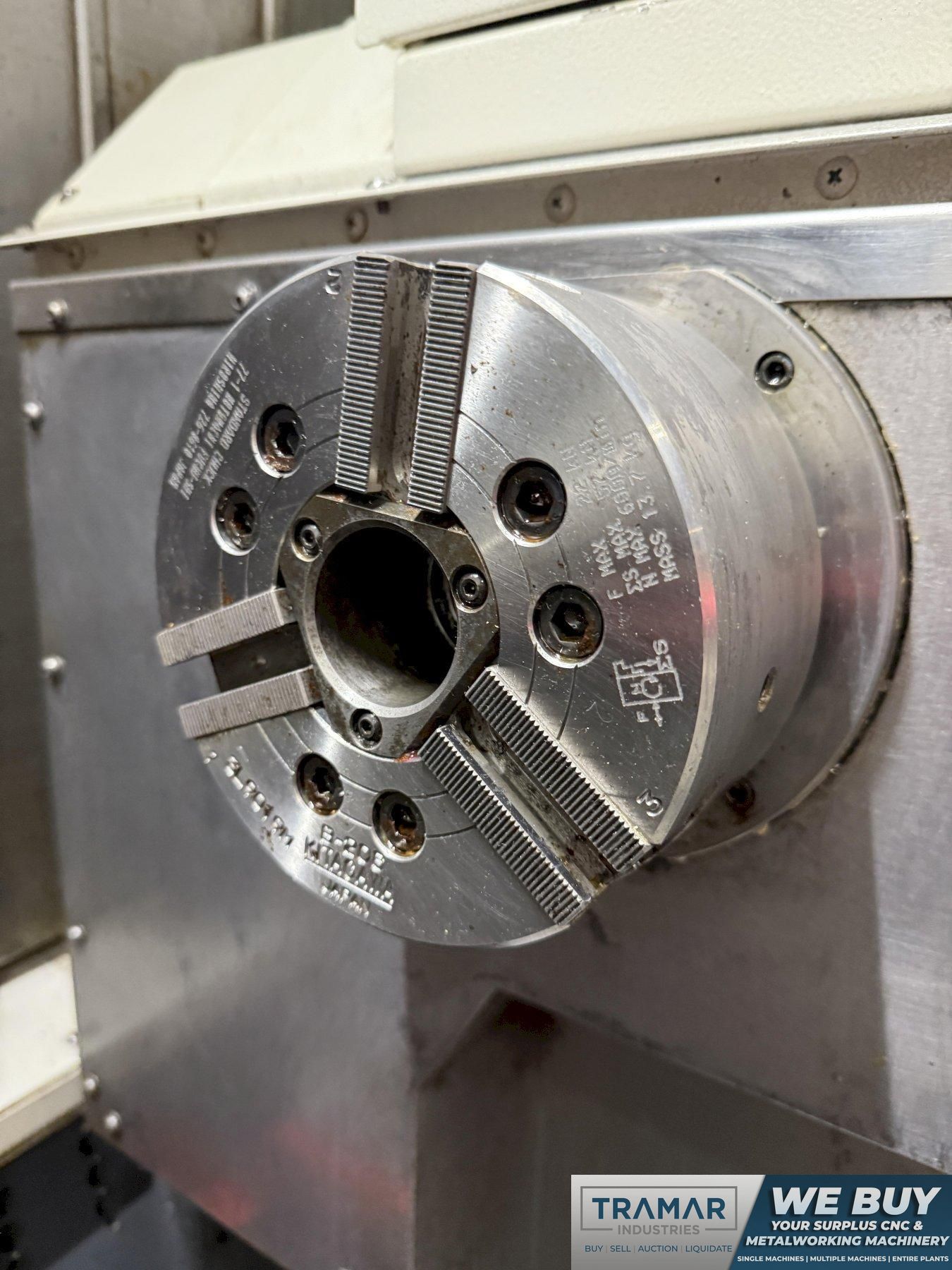

| Chuck Size | 6 inches | ||
| Bar Capacity | 2 inches | ||
| X Axis Travel | 22.44 inches | ||
| X2 Axis Travel | 5.14 inches | ||
| Z Axis Travel | 51.06 inches | ||
| Z2 Axis Travel | 25.9 inches | ||
| Y Axis Travel | 7.86 (+/- 3.94") | ||
| B Axis Travel (Sub Spindle) | 30.3 inches | ||
| B Axis Indexing | 190° (+/- 95°) | ||
| C1/C2 Axis Index | 0.001° | ||
| Rapid Traverse (X/Y/Z) | 1181/630/1574 ipm | ||
| Spindle Nose | A2-5 | ||
| Spindle Speed | 5,000 rpm | ||
| Main Motor | 15 hp | ||

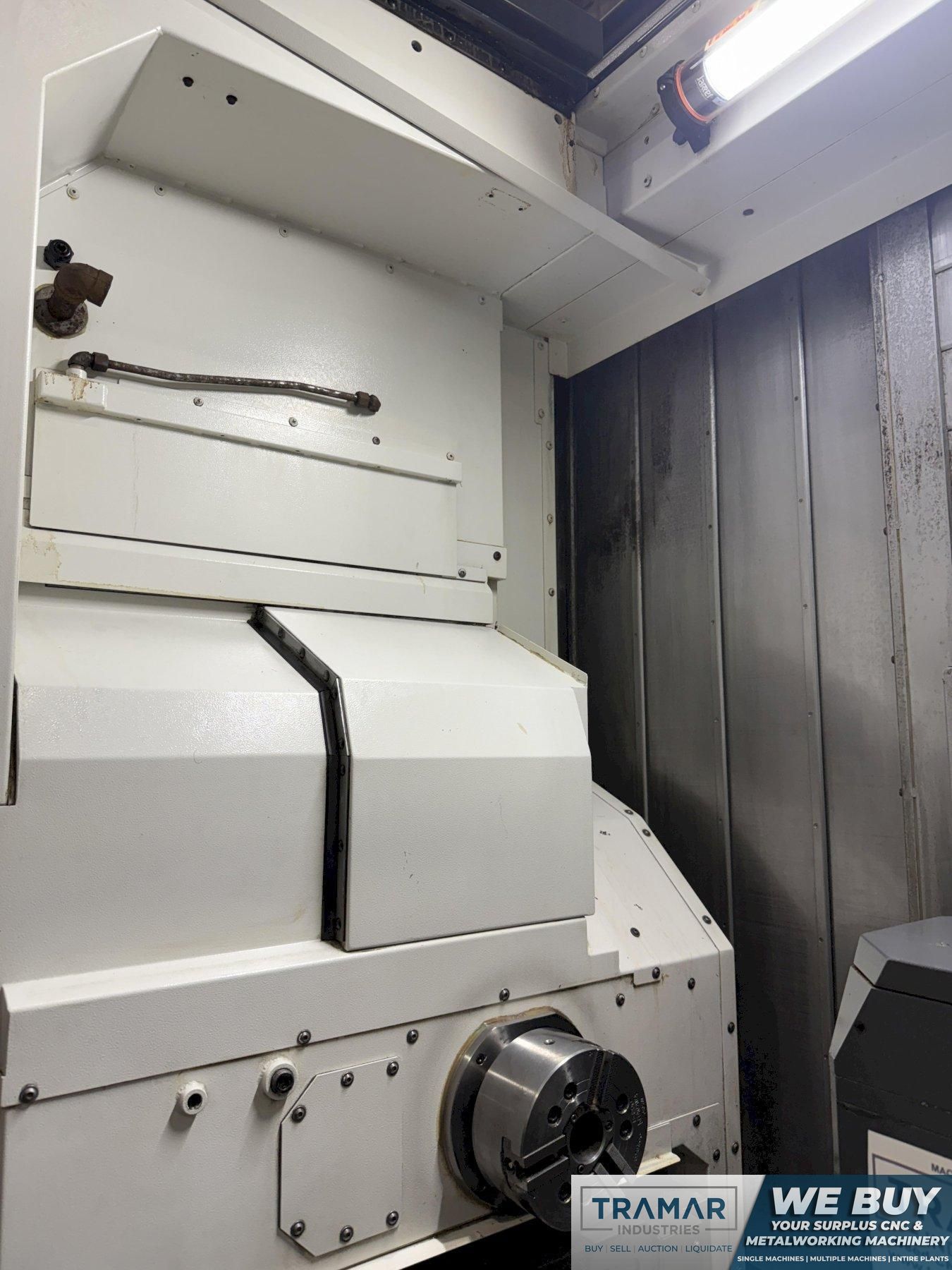

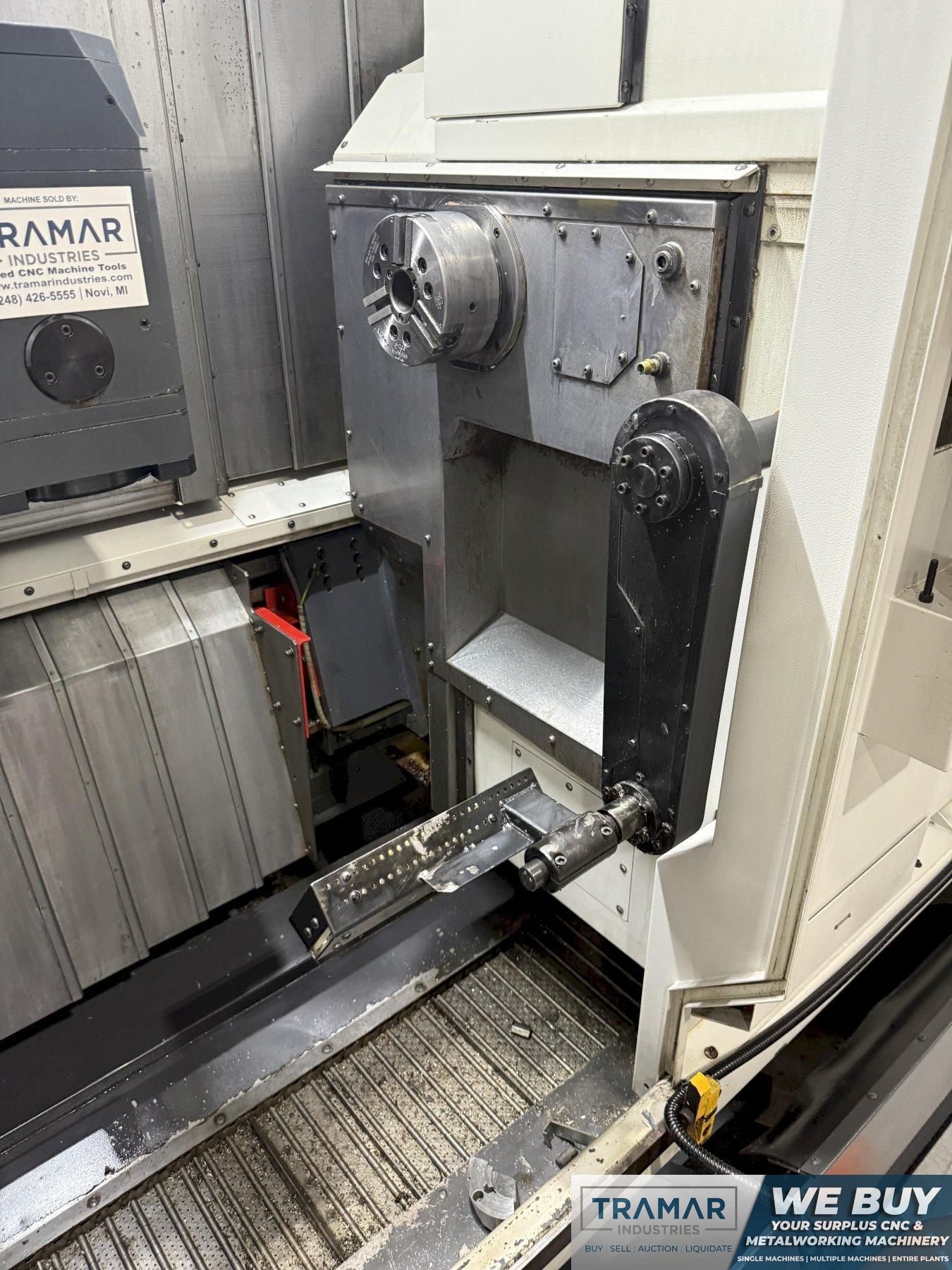

| Sub Spindle | yes | ||
| Sub Spindle Nose | A2-5 | ||
| Sub Spindle Chuck | 6 inches | ||
| Sub Spindle Bar Capacity | 2 inches | ||
| Sub Spindle Speed | 5,000 rpm | ||
| Sub Spindle Motor (HP) | 15 hp | ||
| Live Tooling | yes | ||

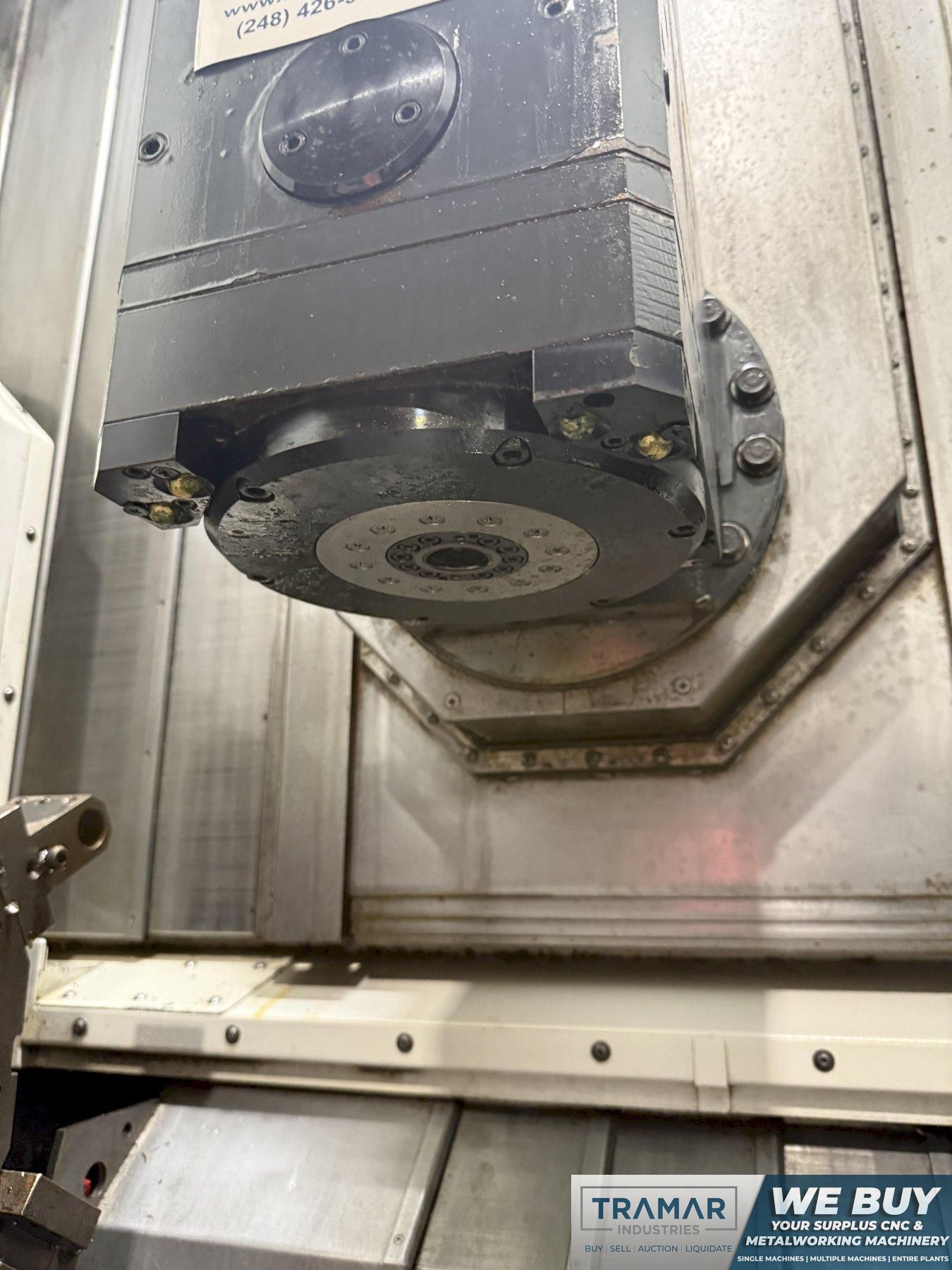

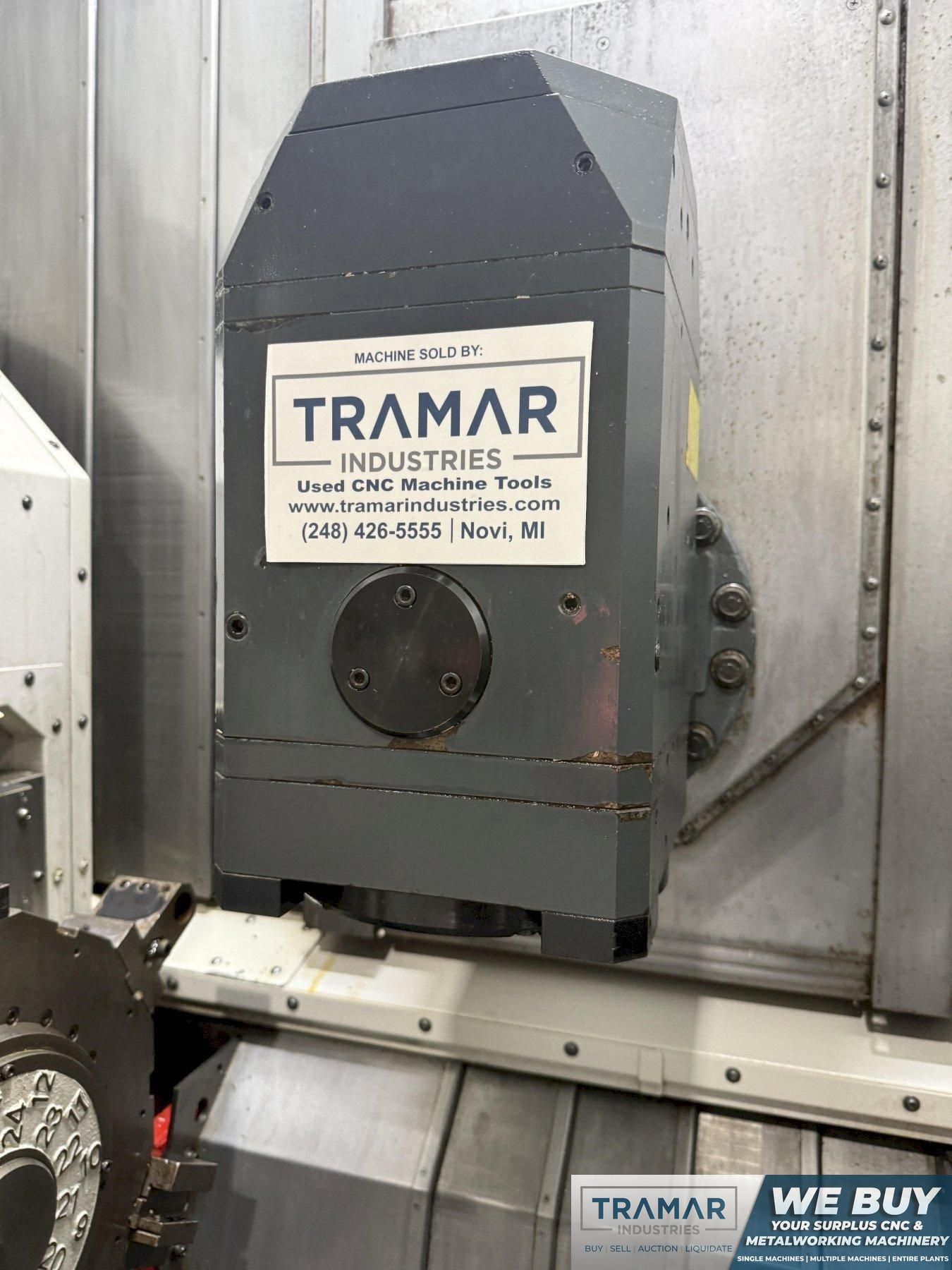

| Milling Spindle Taper | CAPTO C4 | ||
| Live Tooling Speed | 12,000 rpm - Milling Spindle | ||
| Live Tooling Motor | 10 hp | ||
| Y Axis | yes | ||
| Tailstock | no | ||
| ATC Capacity | 2 x 24 Stations | ||

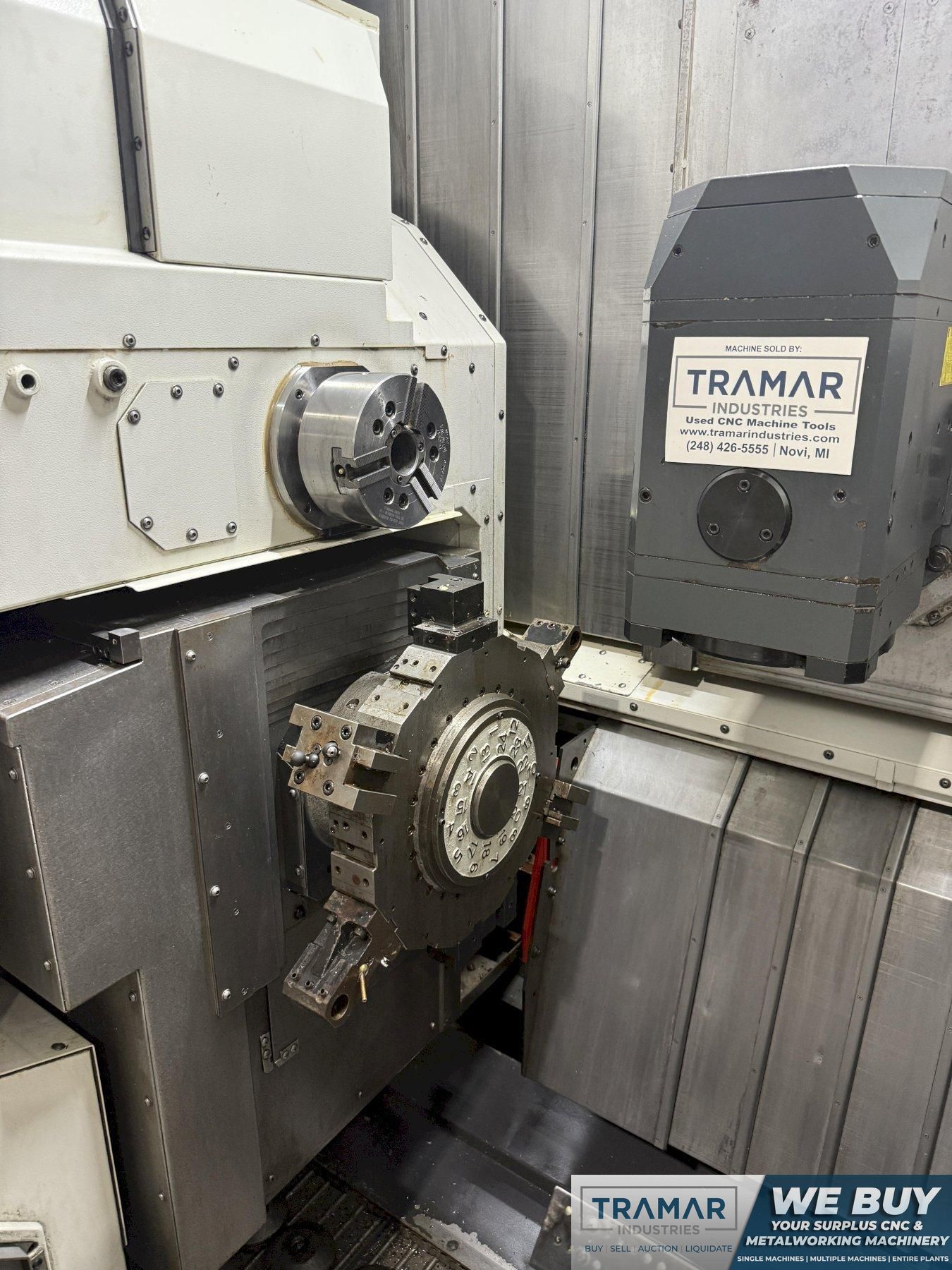

| Turret Capacity | 24 | ||
| Machine Dimensions | 190" x 165" x 104" - Floor Space w/Chip Conveyor | ||
| Machine Weight | 32000 pounds | ||
|
Equipped With

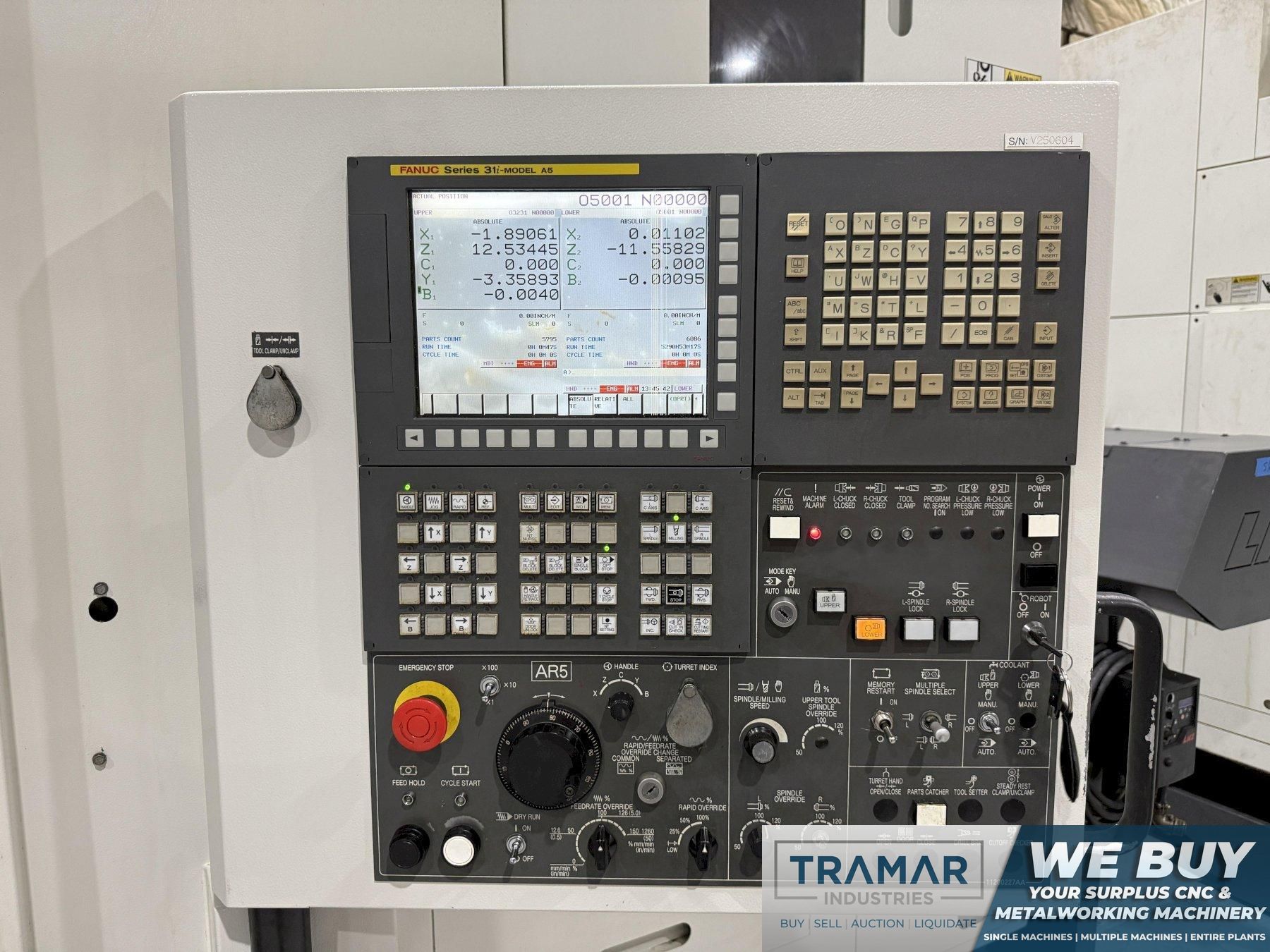

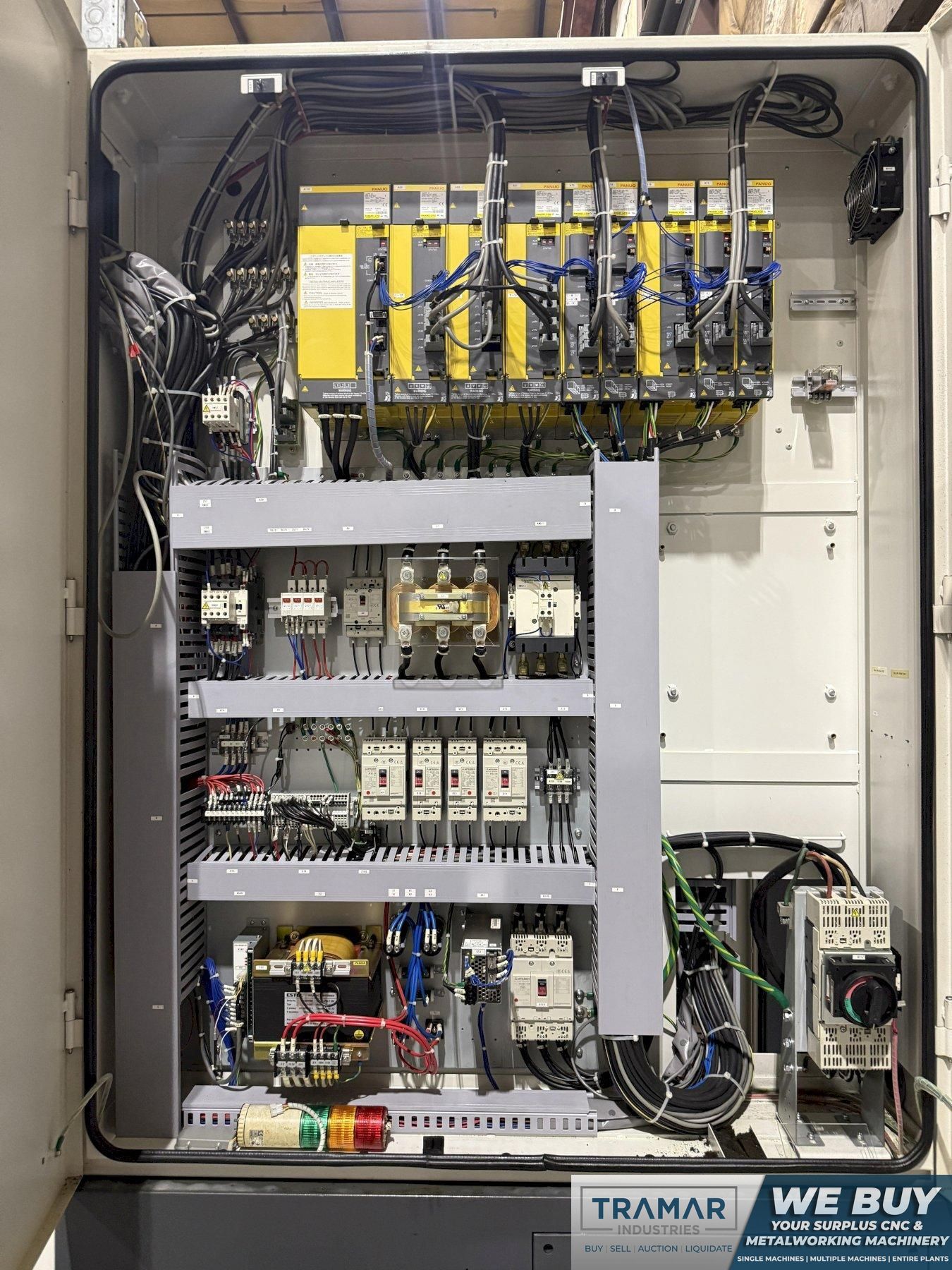

- Fanuc Series 31-Model A5 CNC Control

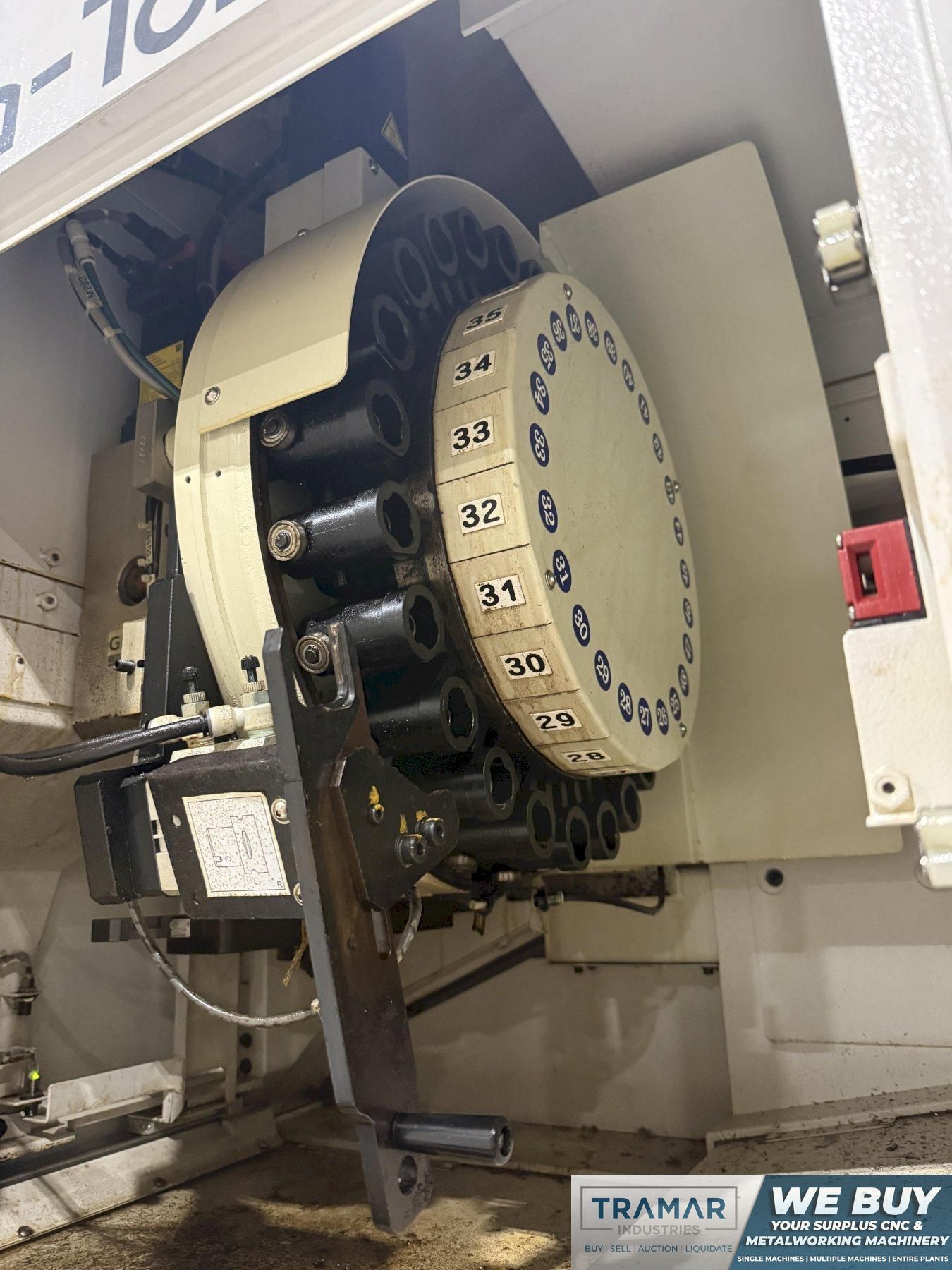

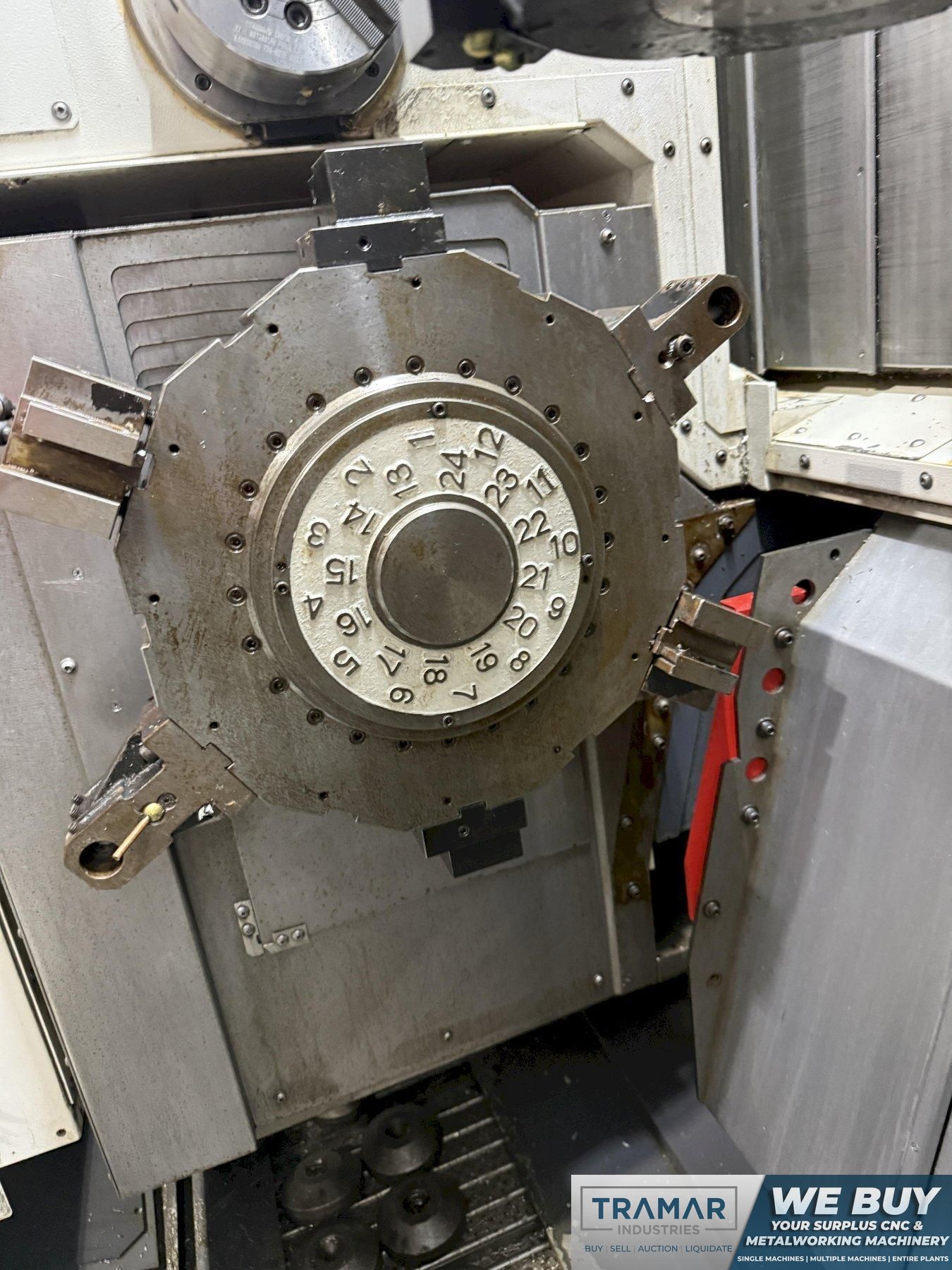

- Milling Spindle (CAPTO C4) - Dual 24 Station Tool Changers - Chip Conveyor - Coolant Tank & Pump - Lower Turret (24 Stations) - Live Tooling (Milling Spindle - 12,000 rpm) - Y Axis Capabilities - Sub Spindle |
|||
