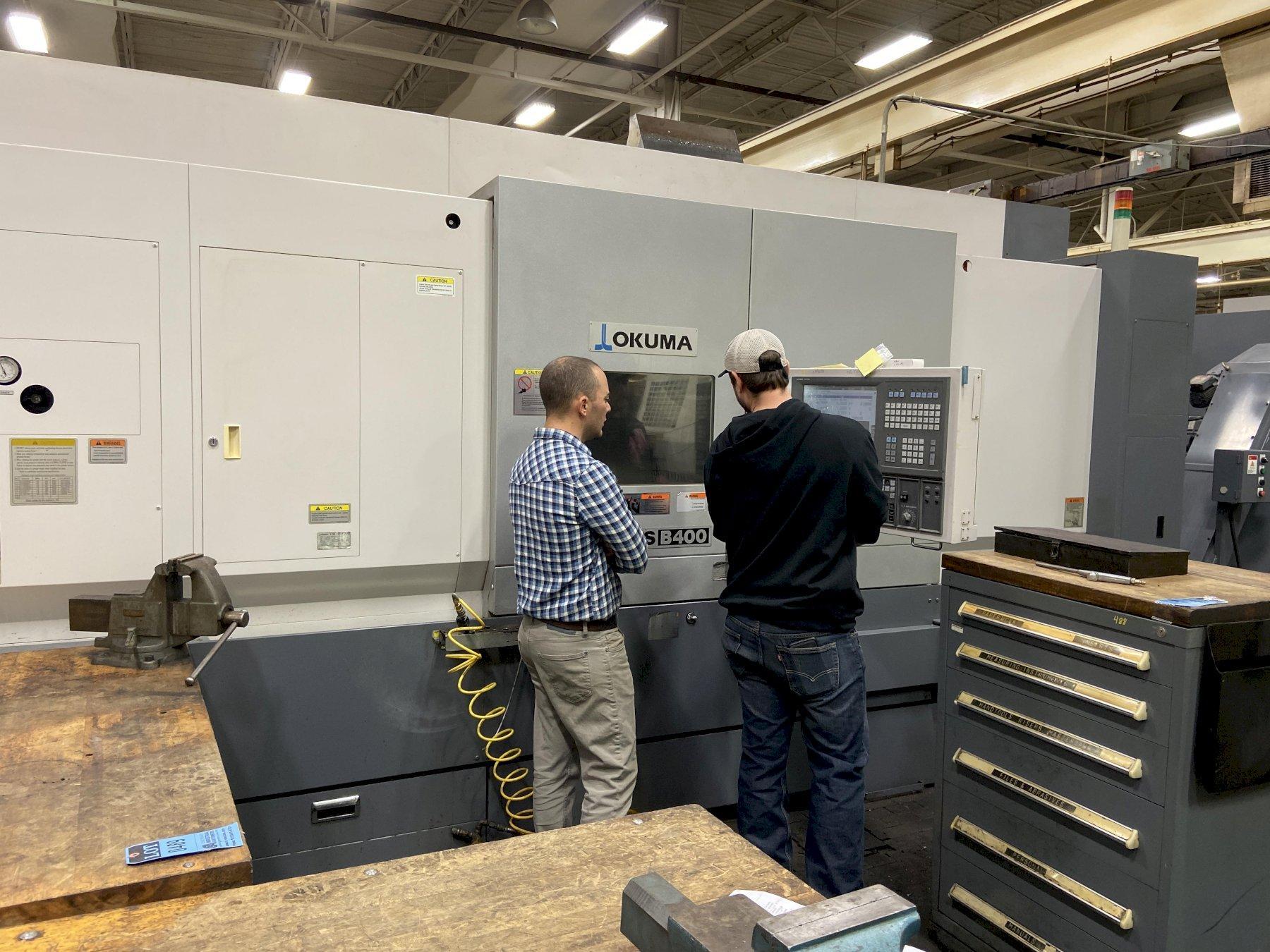

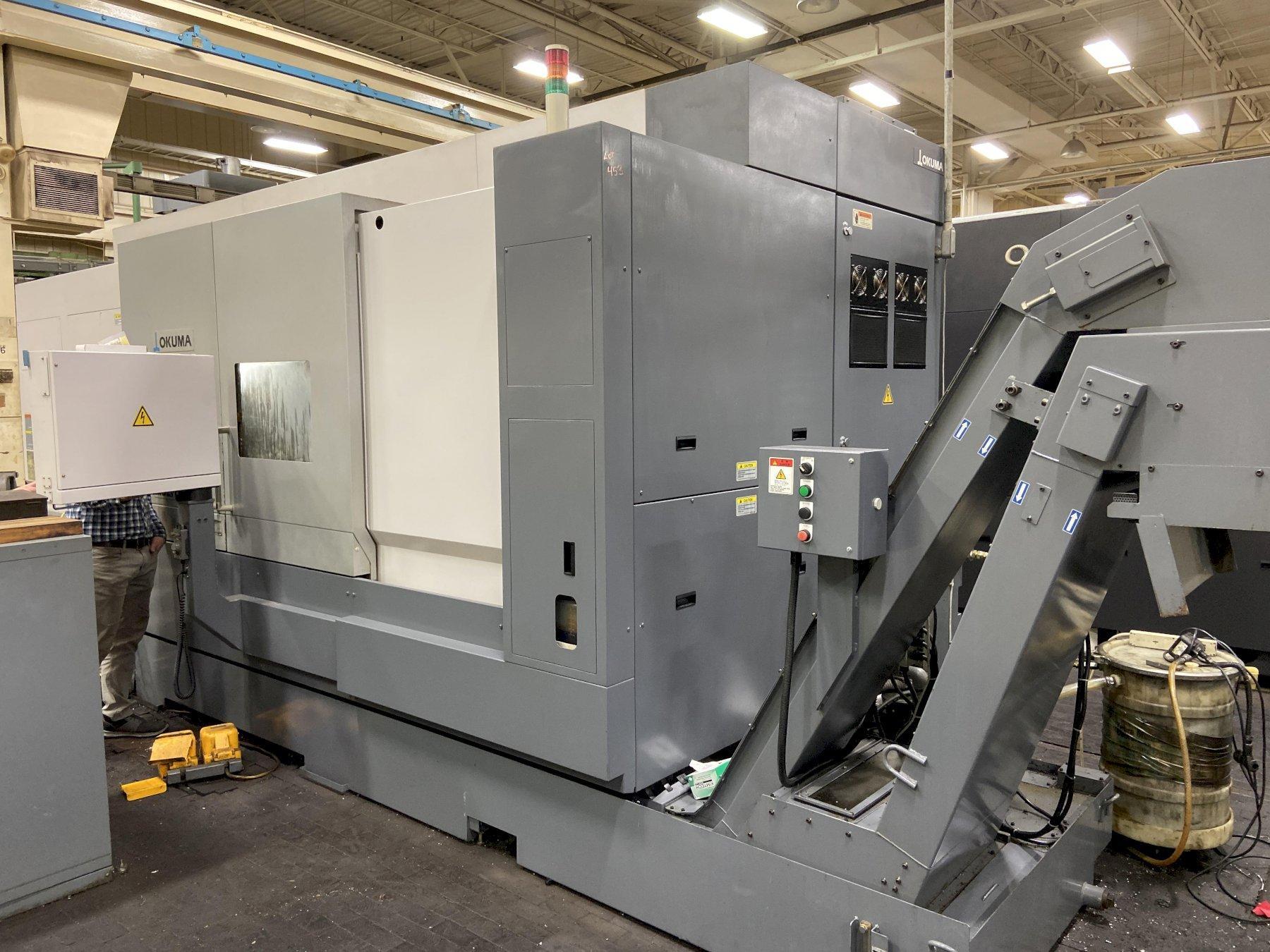

Okuma Multus B400 6-Axis CNC Turning/Milling Machine, OSP-200L Control, 27.9"/9"/60" Travels, 2800 RPM, 30 HP, Milling, 40 ATC, Full B-Axis, Probe, Tool Holders, 2007
Specifications |
|||
|---|---|---|---|
| Year | 2007 | ||
| Serial Number | 125658 | ||
| # Axis | 6 | ||

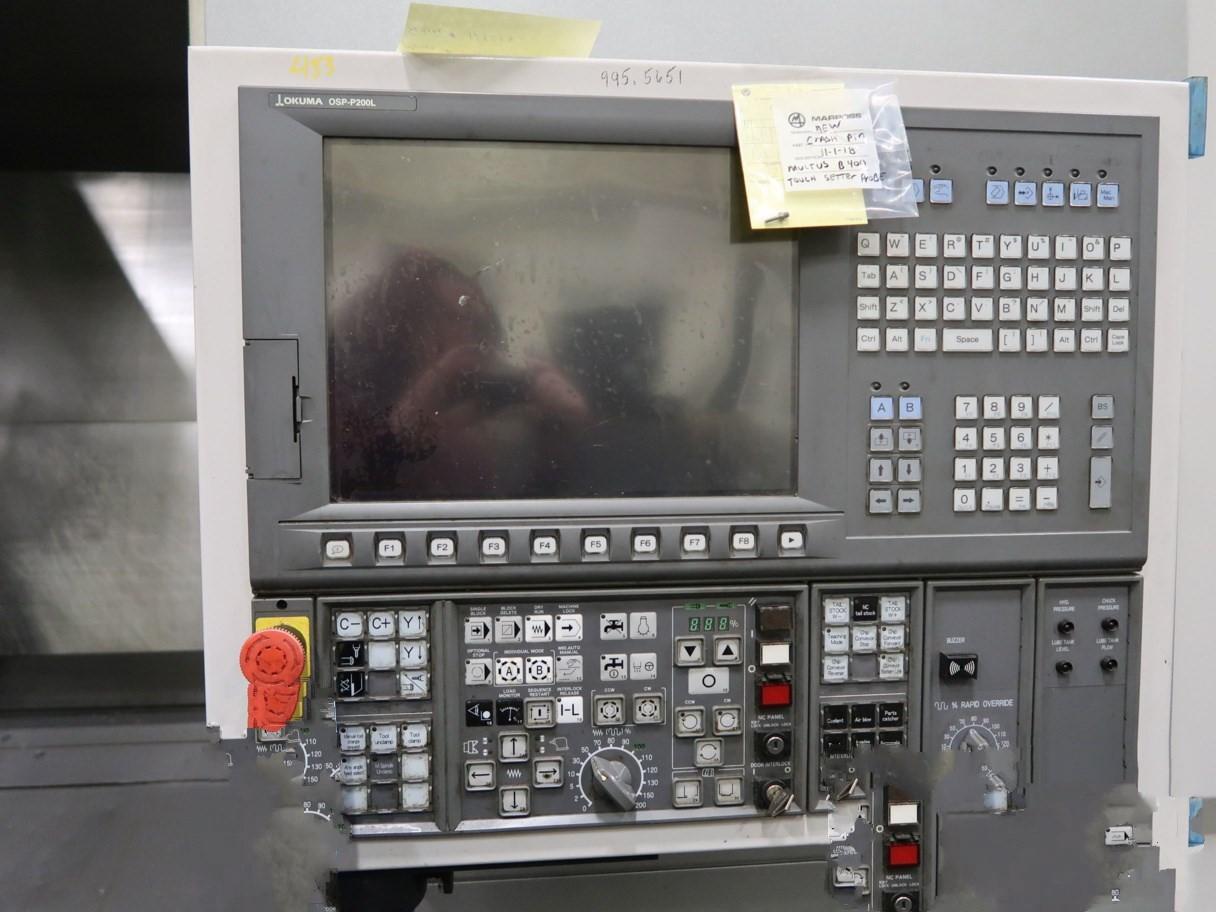

| Type of CNC Control | OSP-200L | ||

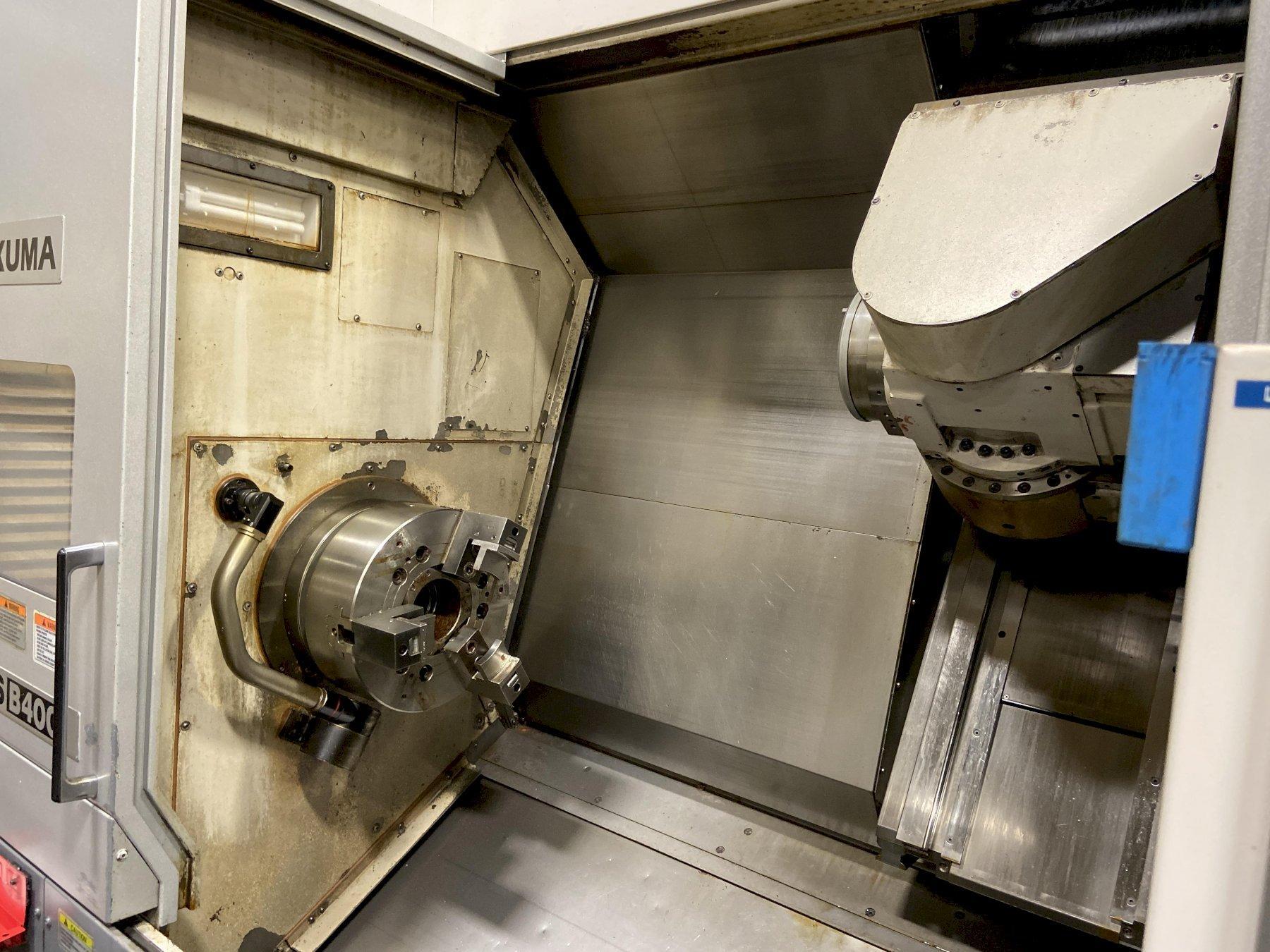

| Chuck Size | 15 inches | ||
| Spindle Nose | A2-11 | ||
| Swing | 27.9 inches | ||
| Turning Diameter | 27.9 inches | ||
| Center Distance | 59 inches | ||
| Bar Capacity | 4.33 inches | ||
| C-Axis | yes | ||
| X Axis Travel | 27.1 inches | ||
| Y-Axis Travel | 9 inches | ||
| Z Axis Travel | 60 inches | ||
| Y-Axis Travel | 9.06" | ||

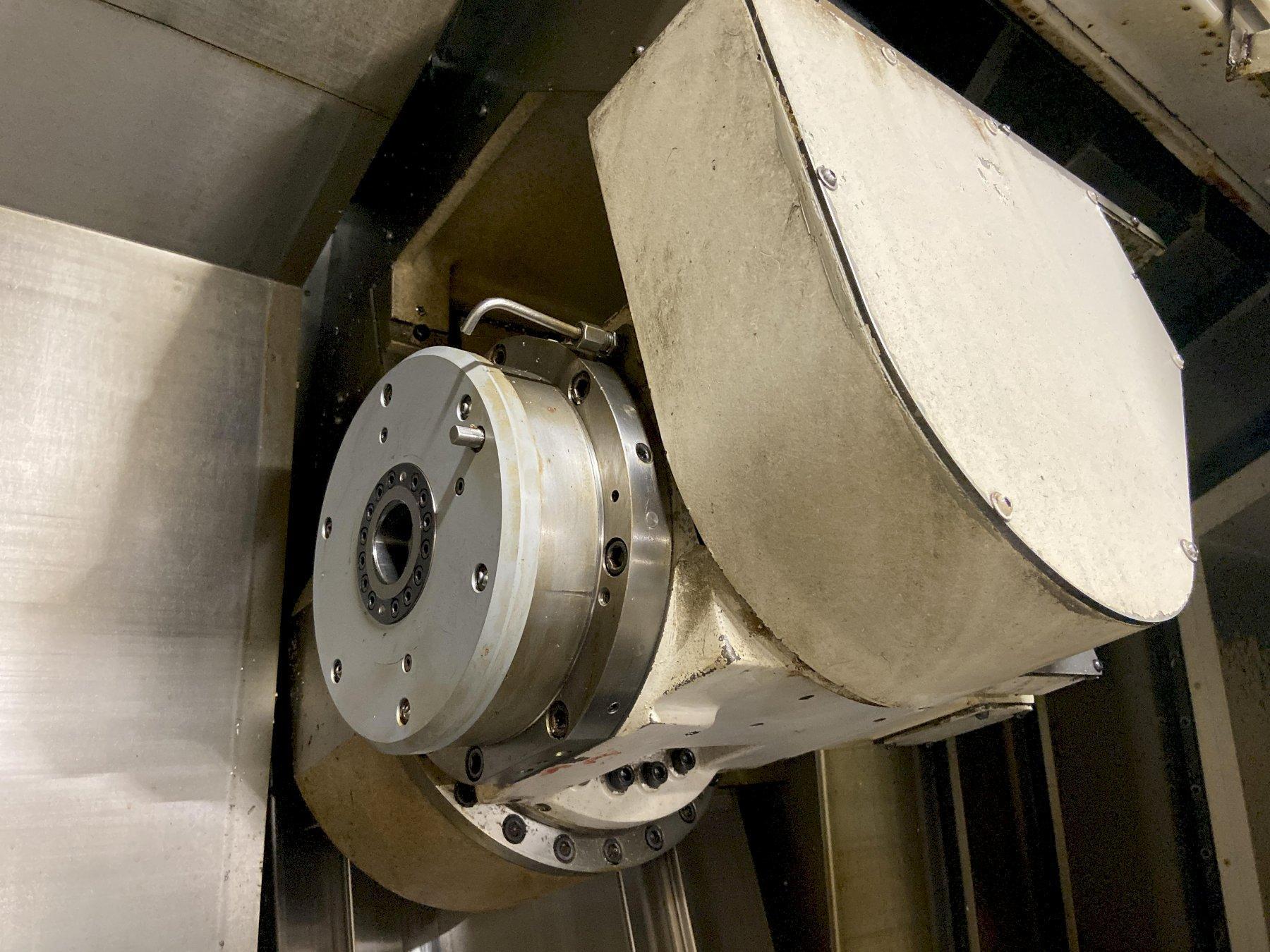

| B Axis | 30 - 195 Deg | ||
| X Axis Rapid Feedrate | 1574 inches-per-minute | ||
| Y-Axis Rapid Feedrate | 1023 inches | ||
| Z Axis Rapid Feedrate | 1574 inches-per-minute | ||
| Spindle Speed (RPM) | 2800 | ||
| Main Motor | 40 HP | ||
| Live Milling (Yes / No) | yes | ||
| Milling Spindle Motor | 27 Horsepower | ||
| Milling Spindle Speed | 10,000 RPM | ||
| Tailstock (Yes/No) | yes | ||

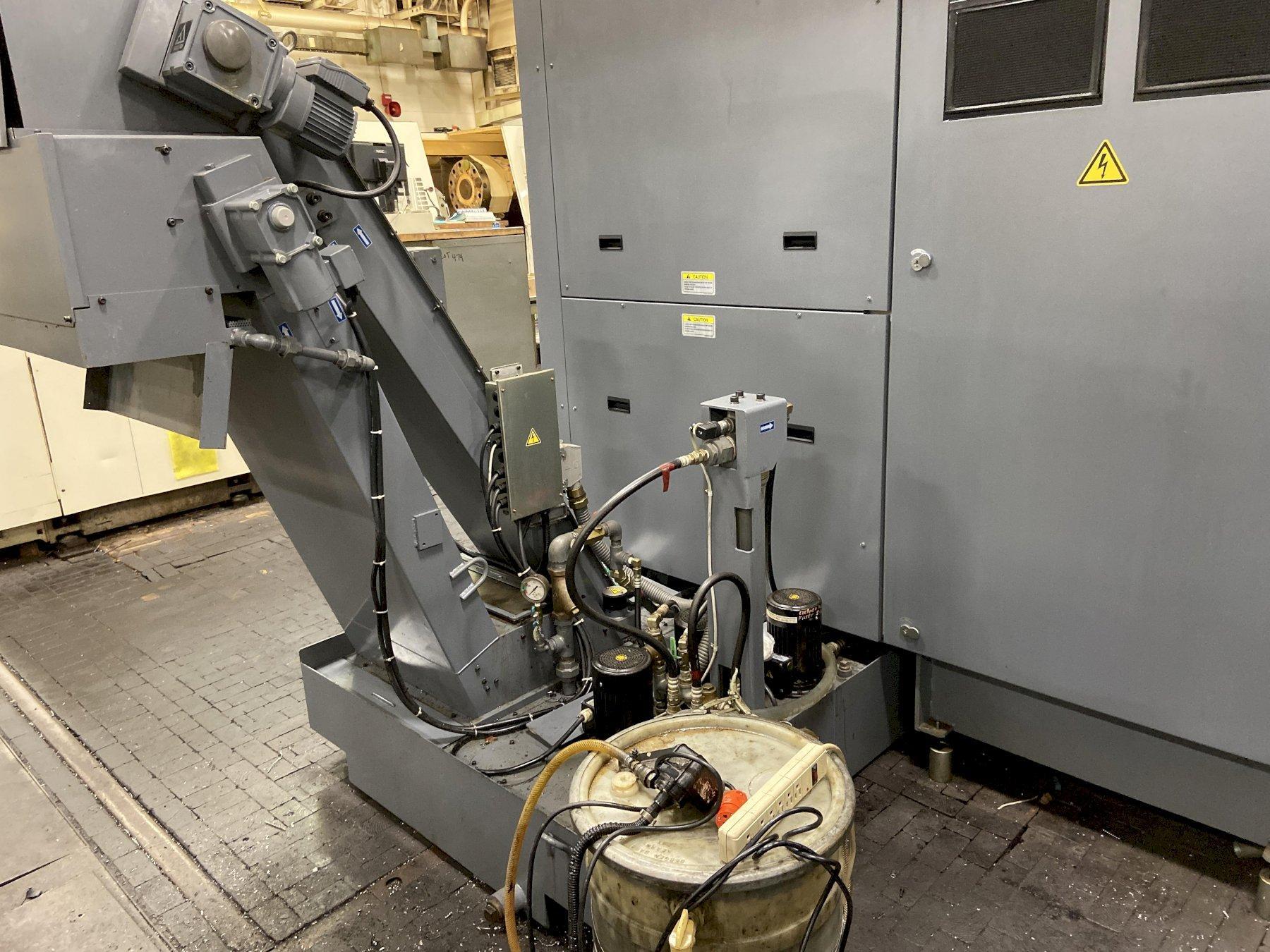

| Equipped With | 40 Station Tool Changer (Capto C6 Tooling) Coolant Thru Spindle Collision Avoidance Renishaw Probing 15" Hydraulic Chuck Big Bore Option Full B Axis (0.001Deg) Tool Probe Tailstock Chip Conveyor Misc Toolholders (approx 26) Coolant Tanks & Pumps Installed New 3/2007 |
||
