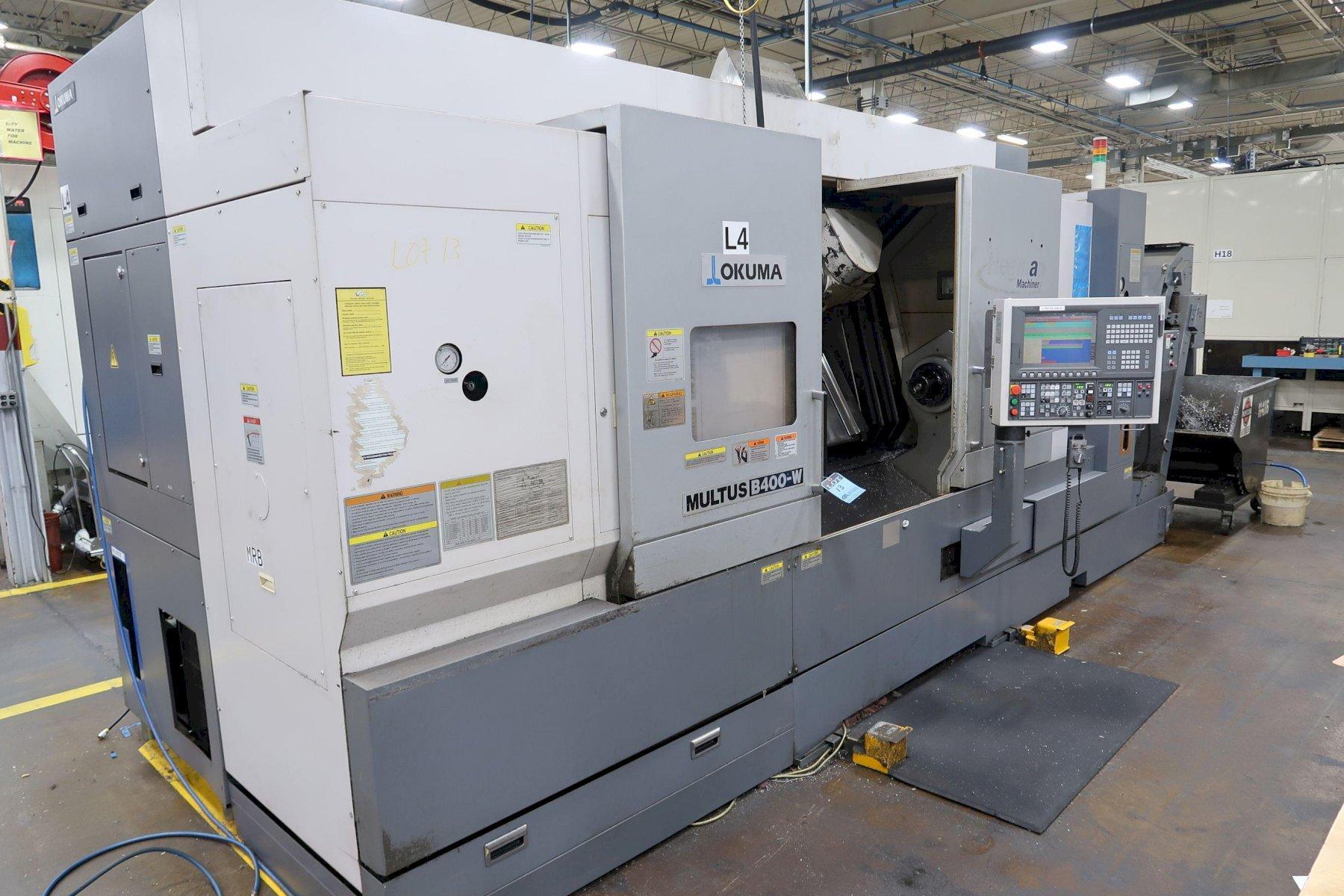

Okuma Multus B400W (6) Axis CNC Lathe, OSP-200L, 15" Chuck, 4.33" Bar Cap, Milling, 40 ATC, Prog T/S, Probing, CTS, 28" Swing, 60" Centers, Low Hours, 2010
Specifications |
|||
|---|---|---|---|
| Year | 2010 | ||
| Serial Number | 149732 | ||
| # Axis | 6 | ||
| Type of CNC Control | OSP-200L | ||
| Chuck Size | 15 inches | ||
| Spindle Nose | A2-11 | ||
| Swing | 27.95 inches | ||
| Turning Diameter | 27.95 inches | ||
| Center Distance | 59.06 inches | ||
| Bar Capacity | 4.33 inches | ||
| C-Axis | yes | ||
| X Axis Travel | 27.17 inches | ||
| Y-Axis Travel | 9.06 inches | ||
| Z Axis Travel | 60.83 inches | ||
| X Axis Rapid Feedrate | 1575 inches-per-minute | ||
| Y-Axis Rapid Feedrate | 1575 inches | ||
| Z Axis Rapid Feedrate | 60.83 inches-per-minute | ||
| Spindle Speed (RPM) | 2800 | ||
| Main Motor | 40 | ||
| Milling | yes | ||
| Milling Speed (RPM) | 10000 | ||
| Live Milling Motor | 27 Horsepower | ||
| Tailstock (Yes/No) | yes | ||
| Tool Changer Capacity | 40 | ||
| Weight | 31250 pounds | ||
| Equipped With | Capto C Milling Spindle (0.001 Deg) Sub Spindle Coolant Thru Spindle Chip Blaster JV-10 High Pressure Coolant Unit Renishaw Probing Collision Avoidance Slant Cutting Helical Cutting 3d Animation Plane Conversion Profile Generator Synchronized Tapping 15.5 " ATS Quick Change Chuck Collet Chuck on Subspindle Y Gauging Tool Presetter Chip Conveyor Coolant Tank & Pumps Misc Tooling (Approx 25 Pieces) |
||
