EDM Sinkers MAKINO EDNC 85S

REFERENCE #: BR15842

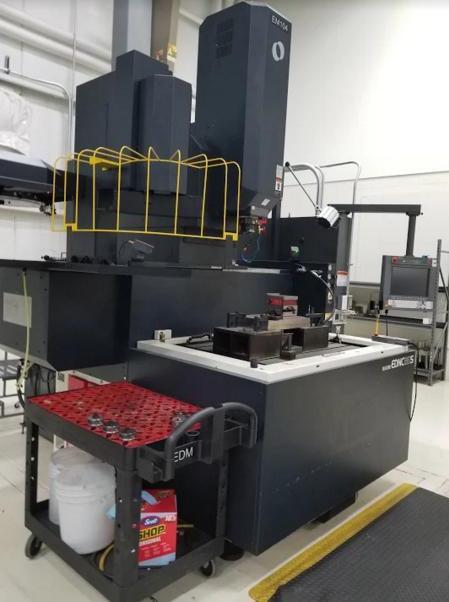

Makino EDNC-85S CNC Sinker EDM, MGH-6 Control, 60 Amp, 31.5"/19.7"/15.7" Travels, Chiller, Touch Screen, USB, Fire Suppression, Probing, 16 Positon ATC, 4400 Lb Cap, 2015

Specifications

Year 2015
Power Pack 60 amperes
Table Size-W 27.6 inches
Table Size-L 39.4 inches
X-Axis Travel 31.5 inches
Y-Axis Travel 19.7 inches
Z-Axis Travel 15.7 inches
CNC Control yes
Type of CNC Control MGH-6
Weight 20060 pounds
Equipped With 15" Touch Screen
Chiller
Hand Held Remote
Ethernet
USB
Flash Rom Port
Fire Extinguisher
Probing Functions

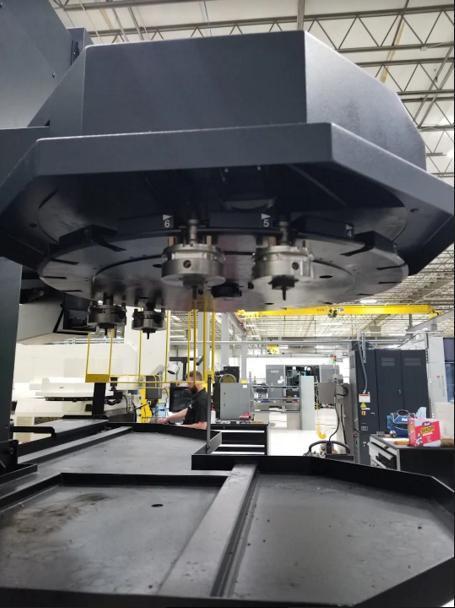

16 Position Tool Changer


Rigid machine construction with massive castings and Class V ball screws





• 60 Amp Power Supply (80 Peak Amps)


• Automatic Air Operated Chuck


(Erowa ITS or System 3R Macro)


• Adaptive Control Technologies:


SuperSpark4


SuperSpark-Graphite


SuperSurface


ArcFree


IES (Intelligent Expert System)


• MF4 Circuit for general machining


• DD-Circuit for large area electrodes


• MPG (Makino Program Generator)


• Model Plan Programming


• MGH-6 Windows CE? control with 15”


Touch Screen interface


• Hand Held Full-Function Remote Control


with Magnetic Base and LCD Display


• High Accuracy Program/Display Resolution


(5-Place Inch / 4 Place Metric Decimal)


• Carbide Machining Circuit


• Automatic Dielectric Chiller Unit


• Flash ROM, Ethernet Port, USB Port


• Exclusive Complex Orbiting Routines


• Power Driven 3 Sided Programmable Rise


and Fall Work Tank


• U/V Flame Sensor


• Operator friendly Lite Oil Fire Extinguisher


• Multi-Tap Line Transformer and Power


Supply Line Filter


• Automatic Measurement and Probing


Functions


• Set of 3 Pick Up Probes


• Basic Tool Kit and Flush Nozzle Kit


• EDM Surface Roughness Gauge


• Work light and 100V AC Outlet


• On-board training system (e-Learning)


• On-board electronic manuals (s-Manuals)





Optional Features:-………. Add to quote the following





MR Head


Factory Order Only. Built-in `C` Axis (MR) Workhead with 0-10 RPM spinning


capability. Set up with Erowa. The maximum amperage capacity for the MR


type C-axis is 120 amperes in stationary position and 60 amperes maximum limit


during live rotation.





HS-Rib


Factory Order Only. High Speed Head with 20m/min jumping speed and 1,5g


acceleration. Include Z axis stroke of 500mm and Z-axis stabilizer which consist in


a core cooling ball screw with controller oil temperature. MA/MR or Mi Head are


not included in this option.





HQSF-FACTORY ORDER OPTION ONLY


Option includes HQSF components, HQSF Standard Supplies Set, and HQSF


Running Set. Supplied with Type 1 µSC Additive. (No Sludge Separator)





EDNC 85 Retrofit 16 Position ATC


EDNC85 ATC16 HS-RIB COMMONEDNC85 ATC16 EROWA ITS



Additional Specs:

Table Load Capacity............... 4,400 lbs
Tank Size..................................... 55.1" x 35.4" x 19.7"
